TempLog Premier
A large, white, double-door laboratory refrigerator with a digital temperature display showing 4.0°C. The unit has handles on both doors, ventilation grilles at the base, and wheels for mobility. The ABS logo is visible on the top left. A large white medical refrigerator with a glass door on the right, displaying shelves inside. The left door is closed. An electronic temperature display shows 4.0°C at the top. The unit is on wheels and branded American Biotech Supply.
A large, white, double-door laboratory refrigerator with a digital temperature display showing 4.0°C. The unit has handles on both doors, ventilation grilles at the base, and wheels for mobility. The ABS logo is visible on the top left.

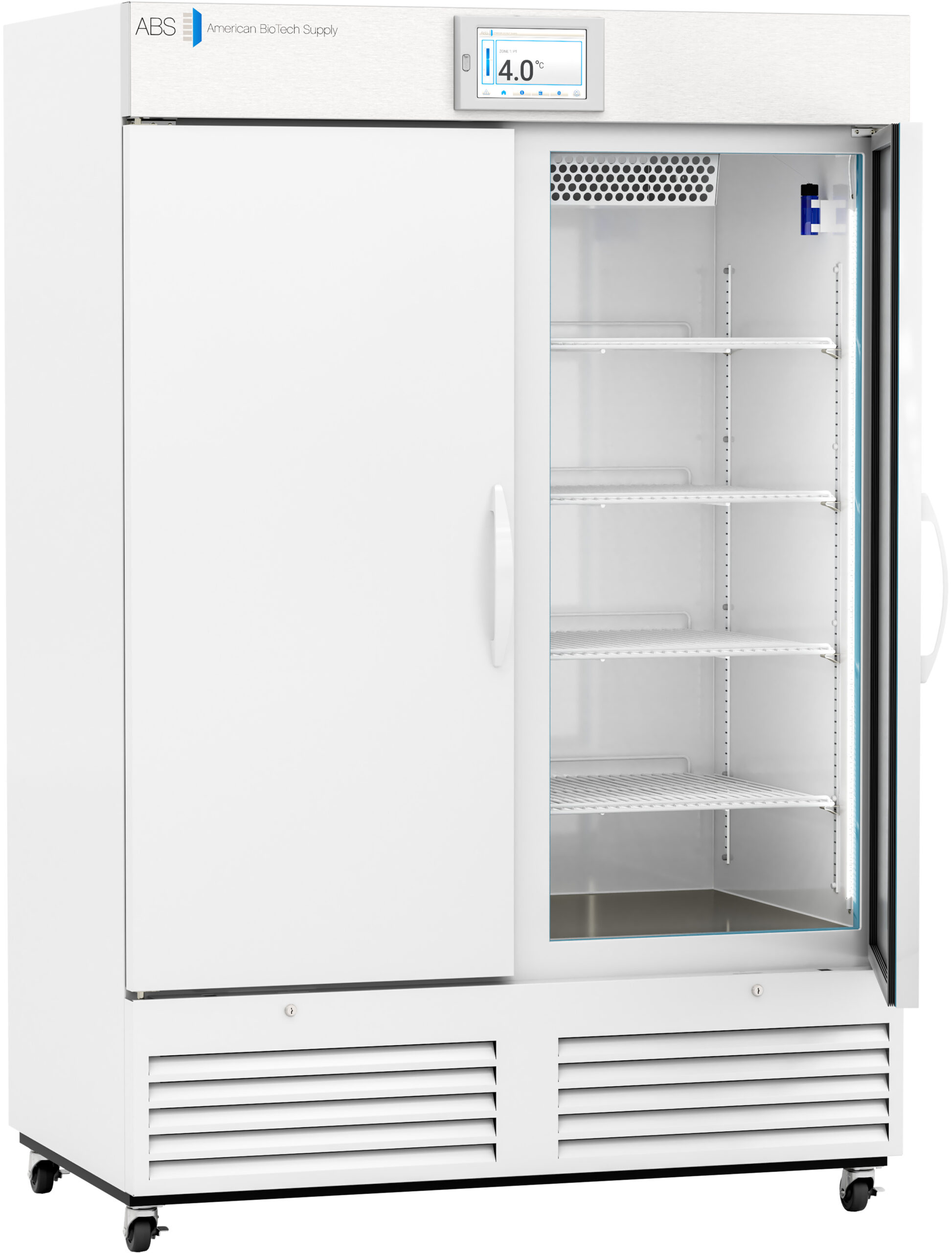

A large white medical refrigerator with a glass door on the right, displaying shelves inside. The left door is closed. An electronic temperature display shows 4.0°C at the top. The unit is on wheels and branded American Biotech Supply.
ABT-VS-49S-TS DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

49 Cu. Ft. TempLog Premier Touchscreen Solid Door Laboratory Refrigerator with Variable Speed Compressor

Product Number: ABT-VS-49S-TS ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 16 23 26 36 72 CU. FT.

These premium touchscreen refrigerators offer precise temperature control and advanced digital monitoring, ideal for clinical and research settings. They feature variable speed compressor technology for exceptional performance and energy efficiency. Experience an intuitive color touchscreen controller, offering multi-layered access and data logging capabilities. Protect your samples with forced draft air circulation and customizable alarms with remote contacts. Also enjoy the benefit of natural, hydrocarbon refrigerants for energy savings and a greener laboratory footprint. This refrigerator is constructed with durable powder-coated steel, self-closing solid doors, keyed access locks, LED interior lighting, and adjustable interior shelving. Also included is a comprehensive 3-year parts and labor warranty with a generous 7-year compressor warranty to protect your investment. With these refrigerators, you’ll increase performance and maximize efficiency in your lab.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-VS-49S-TS

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the temperature range I can set on this refrigerator?

The adjustable temperature range is 2° C to 15° C, set through the 8-inch color touchscreen controller with 0.1° C / 0.2° F resolution.

Temp Controller tab
How much clearance does it need around the cabinet?

A minimum 2" of clearance around the back and sides is required for proper ventilation, with more if next to heat-rejecting equipment. Improper installation will void the warranty and lead to temperature maintenance issues, overheating and possible failure.

Temp Controller tab
What refrigerant does it use and what's the defrost method?

It uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, with cycle defrost. The compressor is hermetic, variable speed.

Performance tab
What are the electrical requirements?

The unit is rated at 3 amps and uses a NEMA 5-15 plug. The facility must provide 110–120V AC, a 15A breaker and a NEMA 5-15 receptacle.

Description tab
How many shelves are included and are they adjustable?

Eight (8) adjustable shelves are included, adjustable in ½" increments.

Description tab
What warranty comes with this refrigerator?

It includes a three (3) year parts and labor warranty plus a seven (7) year compressor warranty.

Description tab
What is a Variable Speed Compressor (VSC)?

A variable speed compressor (VSC) self-adjusts to cooling demand instead of running at one fixed speed, giving greater efficiency and more cost savings than a traditional fixed-speed model. On this unit it works alongside the microprocessor temperature controller, which provides the precise temperature control.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-VS-49S-TS

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity (cu. ft)
49 Cu. Ft.
Door
Two (2) swing glass doors, self-closing, one right hinged, one left hinged, magnetic door gasket
Shelves
Eight (8) adjustable shelves (adjustable in ½” increments)
Mounting and Installation
Swivel casters – locking front casters
External probe access
3/4″ probe access port on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow Management
Forced draft air circulation, patented air flow technology
Exterior materials
White powder coated steel
Access control
Keyed door locks
General warranty
Three (3) year parts and labor warranty
Compressor warranty
Seven (7) year compressor warranty
Product Weight (lbs)
432
Shipping Weight (lbs)
462
Rated Amperage
3
Power Plug/Power Cord
NEMA 5-15 plug
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed.
Maximum temperature variation (Cabinet air)
+/- 1° C
Stability (Simulator ballast)
+/- 0.2° C
Energy Consumption (kWh/day)
2.5 KWh/day
Average Heat Rejection (BTU/hr)
630 BTU/h
Pull down time to nominal operating temp
< 40 min (empty)
Noise Pressure Level (dBA)
40 dBA or less installed
Compressor
Hermetic, variable speed
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle Defrost
Performance Notes
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
Controller technology
Microprocessor with color touchscreen (8in) input and display, C°/F° switchable, resolution is 0.1° C/0.2° F
Battery Backup
High capacity 12V battery for controller temperature and alarm display and logging only, no cooling active
Display technology
8″ touchscreen featuring: Security and Access: Multi-level password protection: User, Supervisor, and Admin roles for access and control. Advanced controls: Customizable passwords/PINs: Ensures tailored access for your team. Calibration adjustments: fine-tune temperature offsets for precise measurements. visual and user interface: intuitive touch screen: pinch-to-zoom, scrollable graphs, and customizable display options. Adjustable display settings: screen brightness, real-time temperature comparison to alarm points.
Adjustable Temperature Range
2° C to 15° C
Digital Communication
4-20mA Output
External alarm connection
Remote alarm contacts
Alarms
Audible & Visual Alarms: customizable sounds and volumes; silent mode with visual persistence. Alarm delays: Adjustable settings for door, temperature, and power loss alarms to prevent nuisance alerts. Ring-back functionality. Audible alarms re-engage after a preset delay if the condition persists.
Display Probe
Product simulator bottle with glass bead media
Disclaimers
Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
