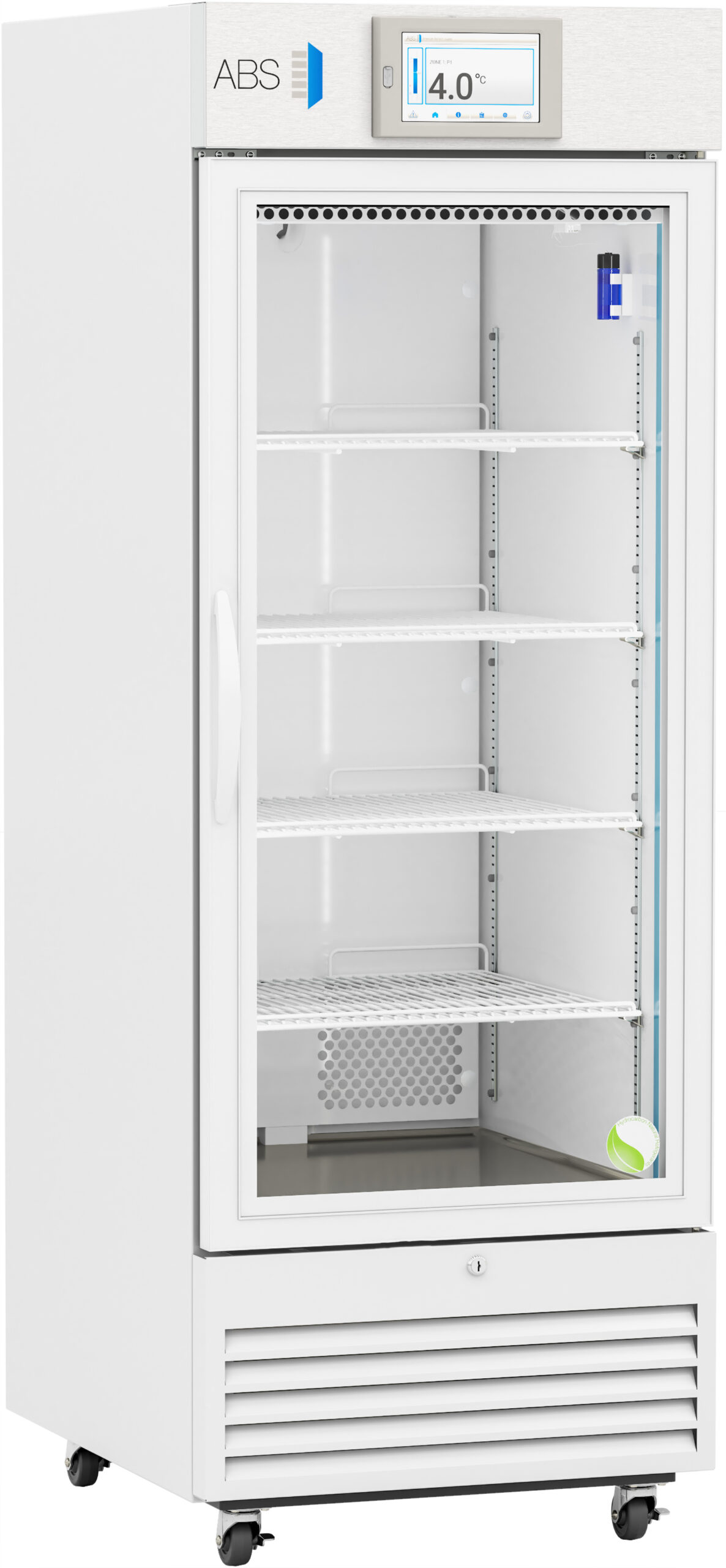

A tall, white laboratory refrigerator with a transparent glass door, five empty wire shelves, a digital display showing 4.0°C, and wheel casters at the bottom for mobility. The ABS logo appears at the top left of the unit. A tall, white medical-grade refrigerator with a glass door, five empty shelves, a digital temperature display showing 4.0°C, and ventilation grilles at the bottom. The unit is on wheels and has a sleek, modern design with the ABS logo at the top.
A tall, white laboratory refrigerator with a transparent glass door, five empty wire shelves, a digital display showing 4.0°C, and wheel casters at the bottom for mobility. The ABS logo appears at the top left of the unit.
A tall, white medical-grade refrigerator with a glass door, five empty shelves, a digital temperature display showing 4.0°C, and ventilation grilles at the bottom. The unit is on wheels and has a sleek, modern design with the ABS logo at the top.
ABT-VS-LP-26-TS DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

26 Cu. Ft. TempLog Premier Touchscreen Glass Door Laboratory Refrigerator with Variable Speed Compressor

Product Number: ABT-VS-LP-26-TS ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 16 23 33 36 47 49 69 72 CU. FT.

These premium touchscreen refrigerators offer precise temperature control and advanced digital monitoring, ideal for clinical and research settings. They feature variable speed compressor technology for exceptional performance and energy efficiency. Experience an intuitive color touchscreen controller, offering multi-layered access and data logging capabilities. Protect your samples with forced draft air circulation and customizable alarms with remote contacts. Also enjoy the benefit of natural, hydrocarbon refrigerants for energy savings and a greener laboratory footprint. This refrigerator is constructed with durable powder-coated steel, a self-closing glass door, a keyed access lock, LED interior lighting, and adjustable interior shelving. Also included is a comprehensive 3-year parts and labor warranty with a generous 7-year compressor warranty to protect your investment. With these refrigerators, you’ll increase performance and maximize efficiency in your lab.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-VS-LP-26-TS

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this refrigerator?

The adjustable temperature range is 2° C to 15° C, with a controller resolution of 0.1° C/0.2° F and C°/F° switchable display.

Temp Controller tab
How much clearance do I need around the unit?

The refrigerator requires a minimum 2" of clearance at the back and sides of the unit for proper ventilation.

Temp Controller tab
What are the exterior dimensions and weight?

Exterior Width is 28.5", Exterior Depth is 36.5", and Exterior Height is 81.75". Product Weight is 294 lbs and Shipping Weight is 347 lbs.

Details tab
What are the electrical requirements?

The facility electrical requirement is 110–120V AC with a 15A breaker and NEMA 5-15 receptacle. The unit is rated at 3 Amps and comes with a NEMA 5-15 plug.

Details tab
What refrigerant and defrost type does it use?

It uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, with cycle defrost. The compressor is hermetic and variable speed.

Refrigeration System tab
What warranty is included?

The unit includes a three (3) year parts and labor warranty, plus a seven (7) year compressor warranty.

Details tab
What is a Variable Speed Compressor (VSC)?

A variable speed compressor (VSC) self-adjusts to cooling demand instead of running at one fixed speed, giving greater efficiency and more cost savings than a traditional fixed-speed model. On this unit it works alongside the microprocessor temperature controller, which provides the precise temperature control.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-VS-LP-26-TS

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity
26 Cu. Ft.
Door
One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves
Four (4) adjustable shelves (adjustable in ½” increments)
Drawers
Non-applicable
Mounting and Installation
Swivel casters – locking front casters
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow Management
Forced draft air circulation – Patented air flow technology
External probe access
Probe access port (3/4″) on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty
Three (3) year parts and labor warranty
Compressor warranty
Seven (7) year compressor warranty
Product Weight (lbs)
294
Shipping Weight (lbs)
347
Exterior Width (in)
28.5″
Exterior Depth (in)
36.5″
Exterior Height (in)
81.75″
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 plug
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed, Energy Star Certified
Compressor
Hermetic, Variable speed
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle defrost



Controller      technology
Microprocessor with color touchscreen (8in) input and display, C°/F° switchable, resolution is 0.1° C/0.2° F
Noise pressure level (dBA)
40 dBA or less installed
Display technology
8″ touchscreen featuring: Security and Access: Multi-Level Password Protection: User, Supervisor, and Admin roles for access and control. Advanced Controls:      Customizable Passwords/PINs: Ensures tailored access for your team. Calibration Adjustments: Fine-tune temperature offsets for precise measurements. Visual and User Interface: Intuitive Touch Screen: Pinch-to-zoom, scrollable graphs, and customizable display options. Adjustable Display Settings: Screen brightness, real-time temperature comparison to alarm points
Stability – simulator ballast (°C)
+/- 0.2° C
Average heat rejection (BTU/h)
 390 BTU/h
Max temp         variation – cabinet     air (°C)
+/- 1.0° C
Adjustable Temperature  Range
2° C to 15° C
External alarm connection
Remote alarm contacts
Digital    Communication
4-20mA Output
Battery Backup
High capacity 12V battery for controller temperature and alarm display and logging only, no cooling active
Energy consumption (KWh/day)
<1.5 KWh/day *meets Energy Star v2.0 for Laboratory Refrigerators.
Display probe
Product simulator bottle with glass bead media
Pull down time to nominal operating  temp
< 30 min (empty)
Alarms
Audible & Visual Alarms: Customizable sounds and volumes; silent mode with visual persistence. Alarm Delays: Adjustable settings for door, temperature, and power loss alarms to prevent nuisance alerts. Ring-Back Functionality: Audible alarms re-engage after a preset delay if the condition persists.
Disclaimer(s):
Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance Note
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
