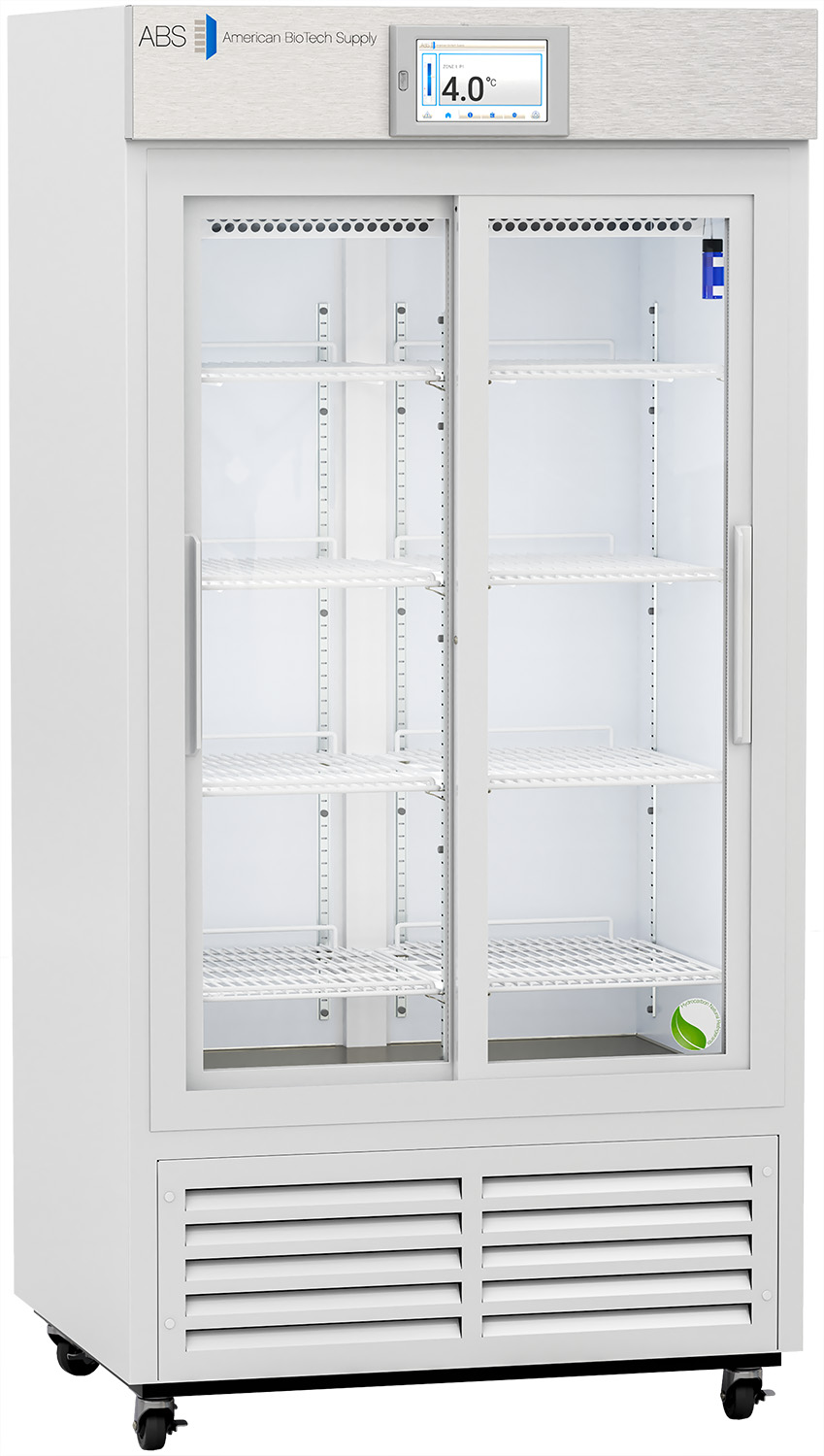

A tall, white, upright laboratory refrigerator with glass sliding doors, multiple adjustable shelves, a digital temperature display reading 4.0°C, and the American Biotech Supply logo at the top left corner. The fridge stands on caster wheels.

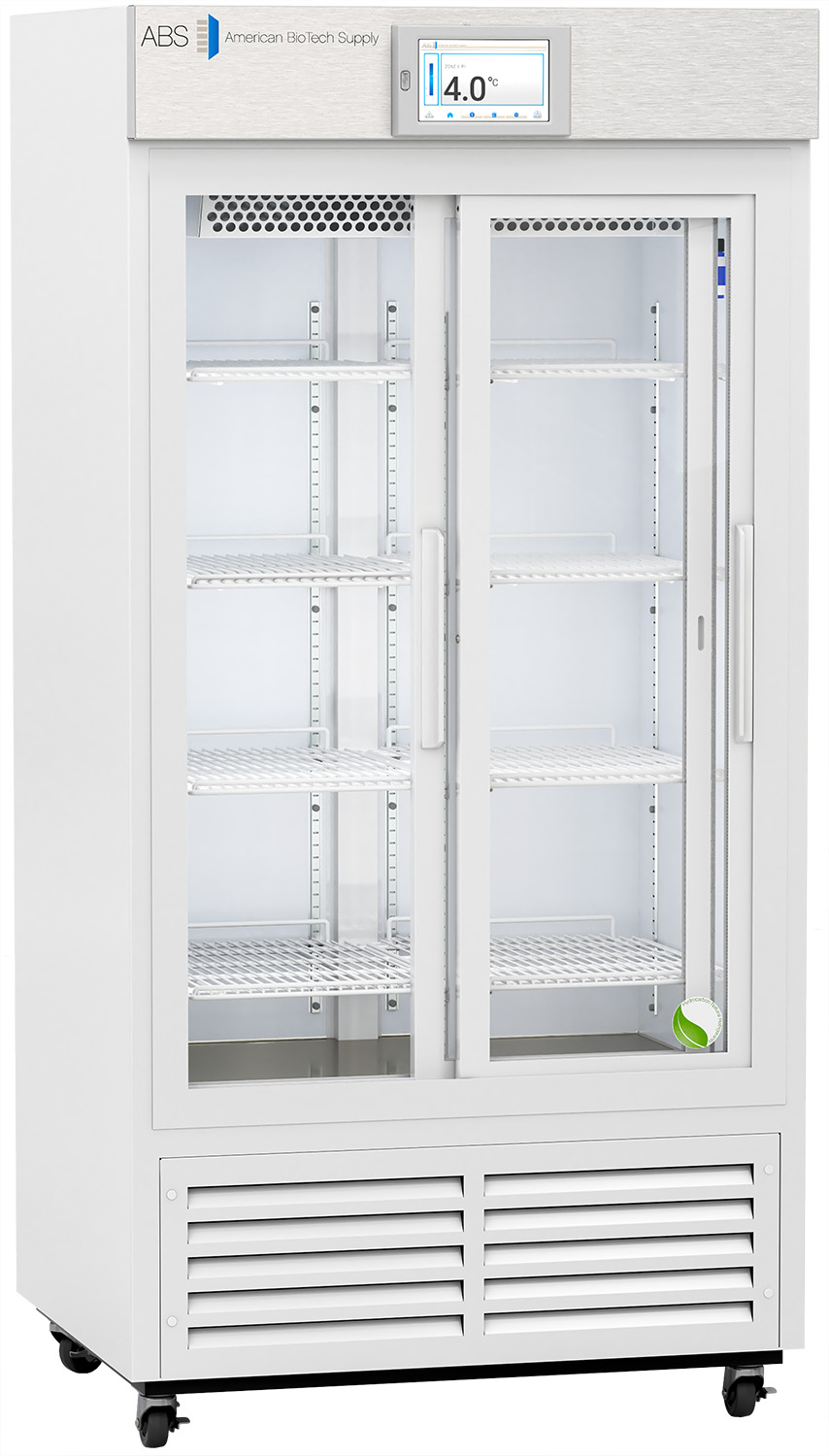

A tall, white laboratory refrigerator with glass sliding doors, adjustable wire shelves, a digital temperature display reading 4.0°C, and ventilation slats at the bottom. The unit is on wheels for mobility and has a brushed metal top panel labeled “ABS American BioTech Supply.”
ABT-VS-LP-33-TS DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

33 Cu. Ft. TempLog Premier Touchscreen Sliding Glass Door Laboratory Refrigerator with Variable Speed Compressor

Product Number: ABT-VS-LP-33-TS ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 16 23 26 36 47 49 69 72 CU. FT.

These premium touchscreen refrigerators offer precise temperature control and advanced digital monitoring, ideal for clinical and research settings. They feature variable speed compressor technology for exceptional performance and energy efficiency. Experience an intuitive color touchscreen controller, offering multi-layered access and data logging capabilities. Protect your samples with forced draft air circulation and customizable alarms with remote contacts. Also enjoy the benefit of natural, hydrocarbon refrigerants for energy savings and a greener laboratory footprint. This refrigerator is constructed with durable powder-coated steel, glass door transparency, a keyed access lock, LED interior lighting, and adjustable interior shelving. Also included is a comprehensive 3-year parts and labor warranty with a generous 7-year compressor warranty to protect your investment. With these refrigerators, you’ll increase performance and maximize efficiency in your lab.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-VS-LP-33-TS

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What is the adjustable temperature range on this refrigerator?

The adjustable temperature range is 2° C to 15° C. Maximum temperature variation in cabinet air is +/- 1.5° C, and stability measured with the simulator ballast is +/- 0.3° C.

Refrigeration System tab
What are the exterior dimensions and weight?

The exterior is 39.625″ wide, 32.5″ deep, and 81.75″ tall. Product weight is 355 lbs and shipping weight is 419 lbs.

Details tab
How much clearance does it need for installation?

The refrigerator requires a minimum of 2″ of clearance around the back and sides for proper ventilation, with more if it is next to heat-rejecting equipment. Improper installation will void the warranty and can lead to temperature maintenance issues, overheating, and possible failure.

Temp Controller tab
What are the electrical requirements?

The unit is rated at 3 Amps and uses a NEMA 5-15P plug. The facility must provide 110–120V AC with a 15A breaker and a NEMA 5-15 receptacle.

Details tab
What refrigerant and defrost method does it use?

It uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, with a hermetic variable speed compressor. The defrost method is Cycle Defrost.

Refrigeration System tab
What warranty is included?

It comes with a three (3) year parts and labor warranty and a seven (7) year compressor warranty.

Details tab
What is a Variable Speed Compressor (VSC)?

A variable speed compressor (VSC) self-adjusts to cooling demand instead of running at one fixed speed, giving greater efficiency and more cost savings than a traditional fixed-speed model. On this unit it works alongside the microprocessor temperature controller, which provides the precise temperature control.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-VS-LP-33-TS

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity (Cu. Ft.)
33 Cu. Ft.
Door
Two (2) sliding glass doors, self-closing
Shelves
Eight (8) adjustable shelves (adjustable in 1/2″ increments)
Mounting and installation
Swivel casters – locking front casters
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow management
Forced draft air circulation, patented air flow technology
External probe access
3/4″ probe access port on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Exterior materials
White powder coated steel
Access control
Keyed door lock
General warranty
Three (3) year parts and labor warranty
Compressor warranty
Seven (7) year compressor warranty
Product weight (lbs)
355
Shipping weight (lbs)
419
Exterior width (in)
39.625″
Exterior depth (in)
32.5″
Exterior height (in)
81.75″
Rated amperage
3 Amps
Power plug/power cord
NEMA 5-15P plug
Facility electrical requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency listing and certification
ETL, C-ETL listed: certified to UL471 standard.
Maximum temperature variation (cabinet air)
+/- 1.5° C
Stability  (simulator ballast)
+/- 0.3° C
Adjustable temperature range
2° C to 15° C
Energy consumption (KWh/day)
<2.8 KWh/day
Average heat rejection (BTU/hr)
<720 BTU/h
Noise pressure level (dBA)
40 dBA or less installed
Pull down time to nominal operating temp
< 40 min (empty)
Compressor
Hermetic, variable speed
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle Defrost
Performance note
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
Controller technology
Microprocessor with color touchscreen (8in) input and display, C°/F° switchable, resolution is 0.1° C/0.2° F
Battery backup
High capacity 12V battery for controller temperature and alarm display and logging only, no cooling active
Display technology
8″ touchscreen featuring: Security and Access: Multi-level password protection: User, Supervisor, and Admin roles for access and control. Advanced controls: Customizable passwords/PINs: Ensures tailored access for your team. Calibration adjustments: fine-tune temperature offsets for precise measurements. visual and user interface: intuitive touch screen: pinch-to-zoom, scrollable graphs, and customizable display options. Adjustable display settings: screen brightness, real-time temperature comparison to alarm points. and selectable °C/°F display with 0.1°C/0.2°F resolution.
Digital communication
4-20mA Output
External alarm connection
Remote alarm contacts
Display probe
Product simulator bottle with glass bead media
Alarms
Audible & Visual Alarms: customizable sounds and volumes; silent mode with visual persistence. Alarm delays: Adjustable settings for door, temperature, and power loss alarms to prevent nuisance alerts. Ring-back functionality. Audible alarms re-engage after a preset delay if the condition persists.
Disclaimers
Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
