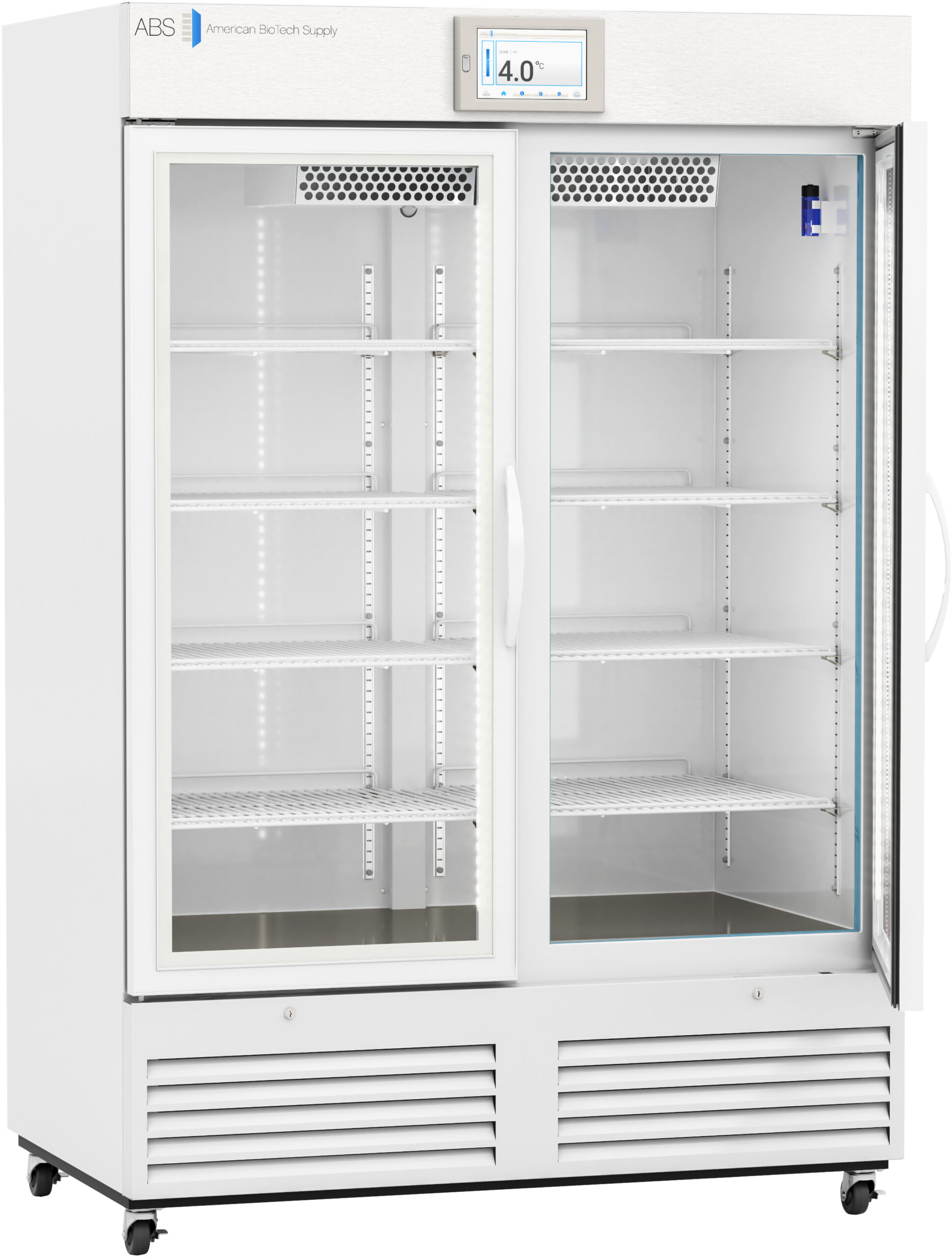

A large, white, commercial refrigerator with two clear sliding glass doors, five adjustable shelves, and a digital temperature display on top showing 4.0°C. The unit is empty and clean, designed for laboratory or medical use.
ABT-VS-LP-49-TS Datasheet

49 Cu. Ft. Touchscreen Glass Door Laboratory Refrigerator

Product Number: ABT-VS-LP-49-TS

A minimalist leaf icon with a gradient color transition from blue at the top to green at the bottom. The leaf features a simple, stylized design with a vertical line down the center, resembling a stem, and two side veins.Black and white certification logo with INTERTEK at the top, a stylized ETL in the center, and the letters C on the left and US on the right, indicating compliance with Canadian and U.S. safety standards.

These premium touchscreen refrigerators offer precise temperature control and advanced digital monitoring, ideal for clinical and research settings. They feature variable speed compressor technology for exceptional performance and energy efficiency. Experience an intuitive color touchscreen controller, offering multi-layered access and data logging capabilities. Protect your samples with forced draft air circulation and customizable alarms with remote contacts. Also enjoy the benefit of natural, hydrocarbon refrigerants for energy savings and a greener laboratory footprint. This refrigerator is constructed with durable powder-coated steel, self-closing glass doors, a keyed access lock, LED interior lighting, and adjustable interior shelving. Also included is a comprehensive 3-year parts and labor warranty with a generous 7-year compressor warranty to protect your investment. With these refrigerators, you’ll increase performance and maximize efficiency in your lab.

Product Inquiry
Details
Storage capacity (cu. ft) 49 Cu. Ft.
Door Two (2) swing glass doors, self-closing, right hinged, not reversible, magnetic door gasket
Shelves Eight (8) adjustable shelves (adjustable in ½” increments)
Drawers Non-applicable
Mounting and Installation Swivel casters – locking front casters
Interior lighting LED interior lights are safety shielded and switch controlled
Airflow Management Forced draft air circulation – Patented air flow technology
External probe access Probe access port (3/4″) on rear wall
Insulation Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials White powder coated steel
Access control Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty Three (3) year parts and labor warranty
Compressor warranty Seven (7) year compressor warranty
Product Weight (lbs) 452
Shipping Weight (lbs) 545
Exterior Width (in) 54″
Exterior Depth (in) 34.75″
Exterior Height (in) 81.75″
Rated Amperage 3 Amps
Power Plug/Power Cord NEMA 5-15 plug
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification ETL, C-ETL listed. Meets or exceeds Energy Star v2.0 for Laboratory Refrigerators. Official listing pending – see energystar.gov
Compressor Hermetic, Variable speed
Refrigerant EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser Tube and grid, high efficiency fan forced air
Evaporator Fin and tube, high efficiency fan forced air
Defrost Cycle defrost



Controller      technology Microprocessor with color touchscreen (8in) input and display, C°/F° switchable, resolution is 0.1° C/0.2° F
Noise pressure level (dBA) 40 dBA or less installed
Display          technology 8″ touchscreen featuring: Security and Access: Multi-Level Password Protection: User, Supervisor, and Admin roles for access and control. Advanced Controls Customizable Passwords/PINs: Ensures tailored access for your team. Calibration Adjustments: Fine-tune temperature offsets for precise measurements. Visual and User Interface: Intuitive Touch Screen: Pinch-to-zoom, scrollable graphs, and customizable display options. Adjustable Display Settings: Screen brightness, real-time temperature comparison to alarm points
Stability – simulator ballast (°C) +/- 0.2° C
Average heat    rejection (BTU/h) 630 BTU/h
Max temp variation – cabinet air (°C) +/- 1.0° C
Adjustable Temperature Range 2° C to 15° C
External alarm connection Remote alarm contacts
Digital    Communication 4-20mA Output
Battery Backup High capacity 12V battery for controller temperature and alarm display and logging only, no cooling active
Energy consumption (KWh/day) 2.5 KWh/day *meets Energy Star v2.0 for Laboratory Refrigerators.
Display probe Product simulator bottle with glass bead media
Pull down time to nominal operating  temp <40 min (empty)
Alarms Audible & Visual Alarms: Customizable sounds and volumes; silent mode with visual persistence. Alarm Delays: Adjustable settings for door, temperature, and power  loss alarms to prevent nuisance alerts. Ring-Back Functionality: Audible alarms re-engage after a preset delay if the condition persists.


Disclaimer(s): Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation


Performance Note Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
