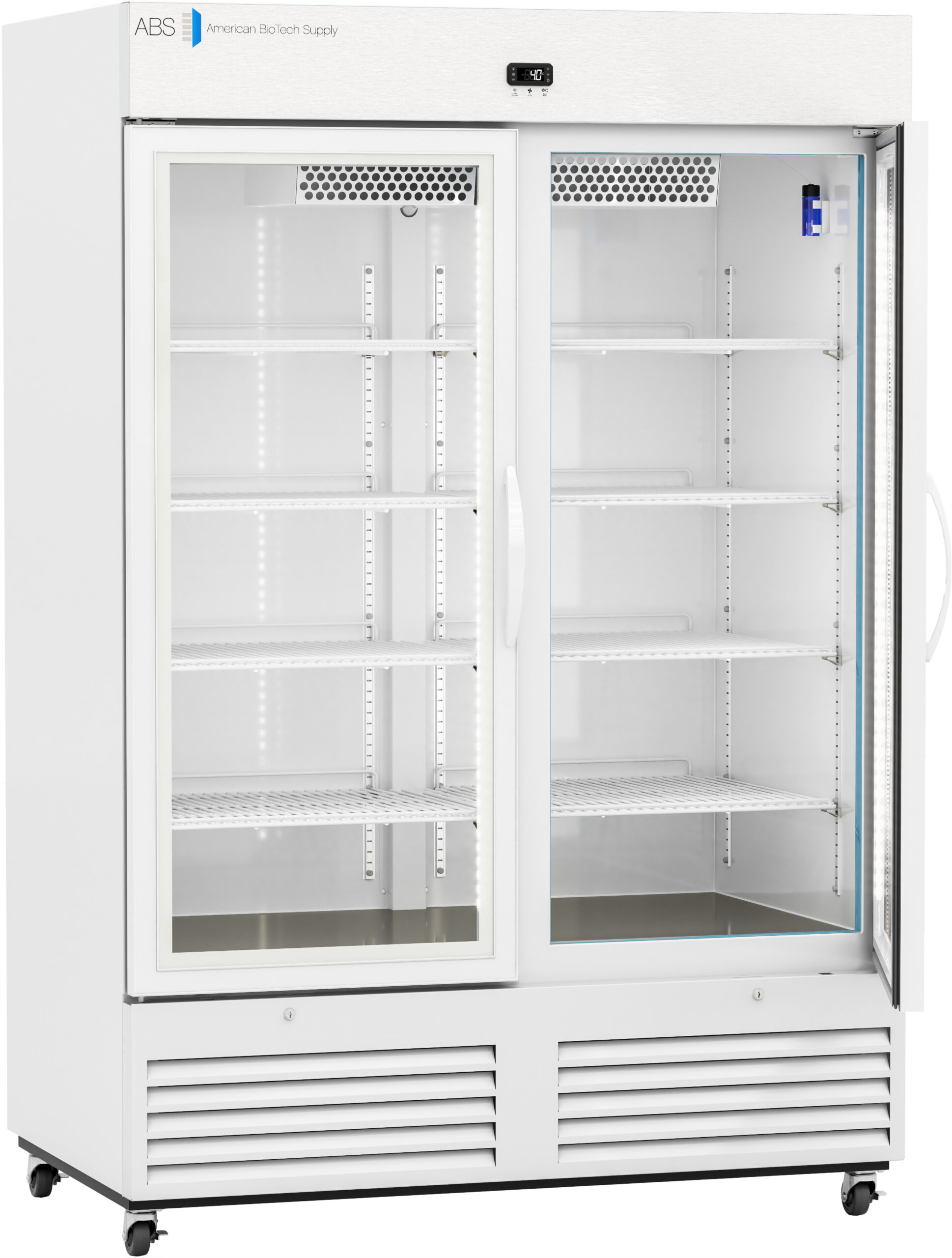

A large, white commercial refrigerator with glass double doors, interior shelves, and a digital temperature display at the top. The fridge sits on wheels and has ventilation grilles at the bottom, showing it is empty and clean inside.
ABT-VS-LS-49 DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

49 Cu. Ft. Standard Glass Door Laboratory Refrigerator

Product Number: ABT-VS-LS-49
ALSO AVAILABLE IN THESE SIZES12 16 20 23 26 33 36 47 69 72 CU. FT.

These laboratory refrigerators are designed for reliable and cost-effective cold storage. This model features ultra-low energy consumption and energy efficient natural refrigerants. Using microprocessor temperature technology, this unit delivers precise temperature monitoring and control. It offers essential security features, including a keyed door lock and temperature alarms, along with remote alarm contacts. Enjoy durable powder-coated steel construction, glass door transparency, and adjustable inner shelving to optimize your workflow. All features are designed to heighten performance and efficiency in your lab.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-VS-LS-49

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this refrigerator?

The adjustable temperature range is 2° C to 15° C, controlled by a microprocessor temperature controller that is C°/F° switchable with a resolution of 0.1° C/0.2° F.

Temp Controller tab
What are the exterior dimensions and weight?

Exterior width is 54″, depth is 34.75″, and height is 81.75″. Product weight is 448 lbs. and shipping weight is 540 lbs.

Details tab
How much clearance does it need for installation?

The refrigerator requires a minimum 2” of clearance at the back and sides of the unit for proper ventilation.

Temp Controller tab
What are the electrical requirements?

It requires 110 – 120V AC with a 15A breaker and a NEMA 5-15 receptacle. The unit has a rated amperage of 3 and comes with a NEMA 5-15 plug.

Details tab
What refrigerant and defrost type does it use?

The refrigeration system uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, with cycle defrost.

Refrigeration System tab
What warranty is included?

It comes with a two (2) year parts and labor warranty and a five (5) year compressor warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-VS-LS-49

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity
   49 Cu. Ft.
Door
   Two (2) swing glass doors, self-closing, one right hinged, one left hinged, magnetic door gasket
Shelves
   Eight(8) adjustable shelves (adjustable in ½” increments)
Mounting and Installation
   Swivel casters – locking front casters
Interior lighting
   LED interior lights are safety shielded and switch controlled
External probe access
   Probe access port (3/4″) on rear wall
Insulation
   Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
   White powder coated steel
Access Control
   Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty
   Two (2) year parts and labor warranty
Compressor  warranty
   Five (5) year compressor warranty
Product Weight   (lbs.)
   448
Shipping Weight (lbs.)
  540
 Exterior Width       (in)
   54″
 Exterior Depth      (in)
   34.75″
 Exterior Height     (in)
   81.75″
Rated Amperage
   3
Power Plug/Power Cord
   NEMA 5-15 plug
Facility Electrical Requirement
   110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
   ETL, C-ETL listed, Energy Star Certified
Compressor
Hermetic
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle Defrost
Controller  technology
Microprocessor temperature controller, C°/F° switchable, resolution is 0.1° C/0.2° F
Max temp      variation – cabinet   air (°C):
   +/- 2.5° C
Energy    consumption (KWh/day):
   <2.2 KWh/day Meets or exceeds Energy Star v2.0 for Laboratory Refrigerators.
Stability – simulator ballast (°C):
   +/- 0.5° C
Average heat rejection (BTU/h)
   < 570 BTU/h
Display      Technology
   Digital Temperature Display
Noise pressure    level (dBA)
   40 dBA or less installed
Pull down time to nominal operating temp
   < 40 min (empty)
Adjustable Temperature     Range
   2° C to 15° C
External alarm connection
   Remote alarm contacts
Display Probe
   Product simulator bottle with glass bead media
Alarms
   Audible and visual high/low temperature alarms, remote alarm contacts
Disclaimers
   Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance     Notes
   Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.         Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle     probe provided with the unit located center of empty chamber at steady state, no door openings

Related Products

A large, white medical refrigerator with two glass doors, five adjustable shelves per side, a digital control panel on top, and ventilation slots at the bottom; the interior is brightly lit and empty. The unit is on wheels for mobility.
ABT-VS-LP-49 49 Cu. Ft. Premier Glass Door Laboratory Refrigerator with Variable Speed Compressor
Product Number: ABT-VS-LP-49
A large, white, double-door commercial refrigerator with vertical handles, vented bottom panel, and a small digital display above the doors. The unit is on caster wheels and features a green leaf logo on the lower right corner, indicating energy efficiency.
ABT-VS-SLS-49 49 Cu. Ft. Standard Solid Door Laboratory Refrigerator
Product Number: ABT-VS-SLS-49
A large, white, three-door commercial refrigerator with glass doors showing empty adjustable shelves inside, vents at the bottom, wheels for mobility, and a digital display at the top center. The doors have vertical handles and the interior is brightly lit.
ABT-VS-LS-72 72 Cu. Ft. Standard Glass Door Laboratory Refrigerator
Product Number: ABT-VS-LS-72

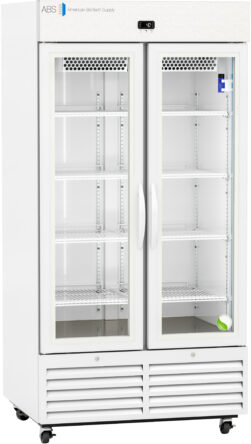

A white, upright laboratory refrigerator with double glass doors, metal shelves, and a digital temperature display on top. The unit is on wheels and labeled “ABS American BioTech Supply.” The interior is empty and brightly lit.
