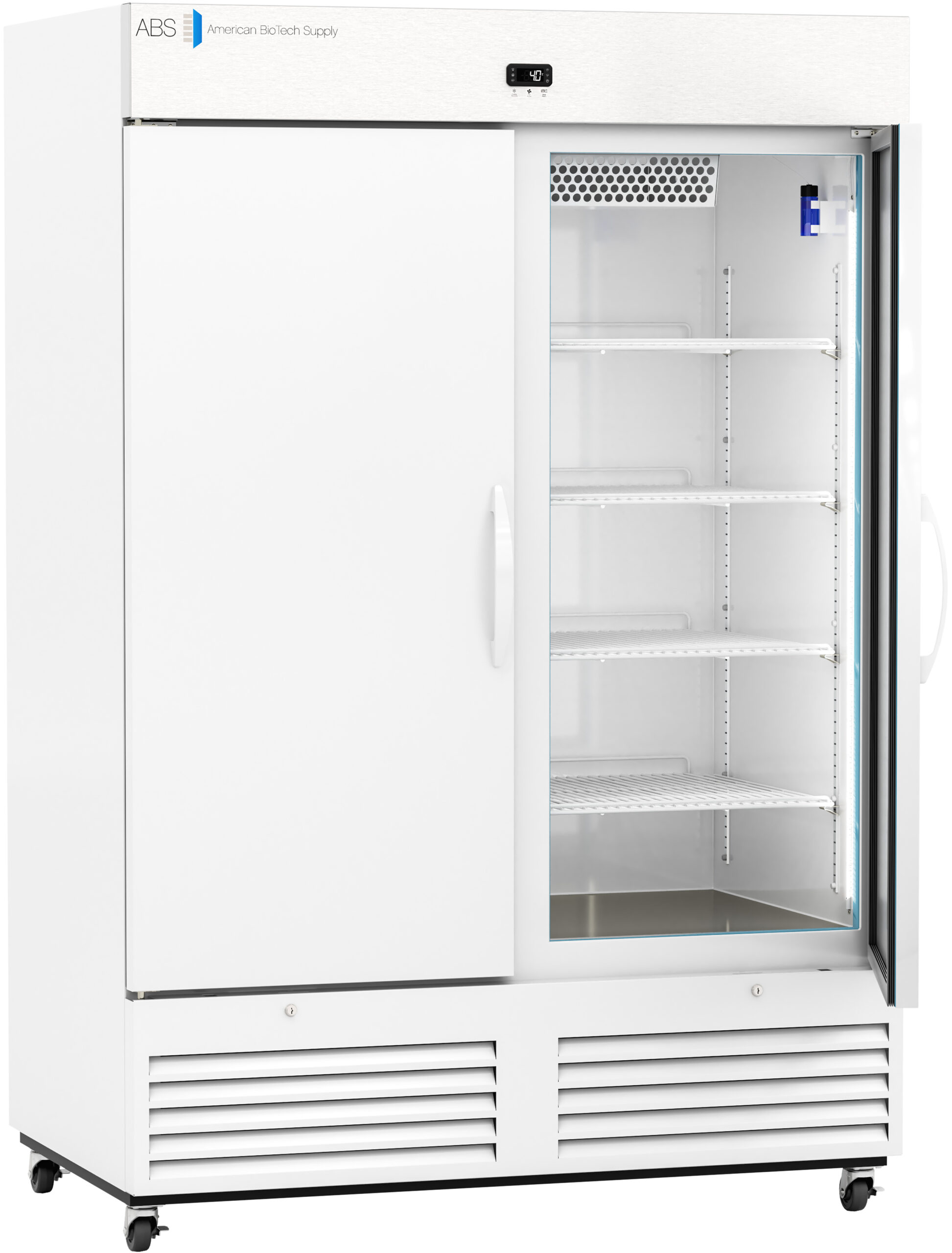

A large white laboratory refrigerator with two sliding doors, one solid and one glass. The interior has five adjustable wire shelves and is empty. The unit is on wheels, has vent grilles at the bottom, and a digital temperature display at the top.
ABT-VS-SLS-49 DataSheet

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

49 Cu. Ft. Standard Solid Door Laboratory Refrigerator

Product Number: ABT-VS-SLS-49 ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 16 23 26 36 72 CU. FT.

These laboratory refrigerators are designed for reliable and cost-effective cold storage. This model features ultra-low energy consumption and energy efficient natural refrigerants. Using microprocessor temperature technology, this unit delivers precise temperature monitoring and control. It offers essential security features, including keyed door locks and temperature alarms, along with remote alarm contacts. Enjoy durable powder-coated steel construction and adjustable inner shelving to optimize your workflow. All features are designed to heighten performance and efficiency in your lab.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-VS-SLS-49

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the temperature range I can set on this refrigerator?

The adjustable temperature range is 2° C to 15° C, set via a microprocessor temperature controller that is C°/F° switchable with a resolution of 0.1° C / 0.2° F.

Temp Controller tab
How many shelves does it come with and are they adjustable?

It includes eight (8) adjustable shelves, adjustable in ½" increments.

Details tab
What are the electrical requirements?

The unit is rated at 3 Amps and uses a NEMA 5-15 plug. The facility must provide 110–120V AC, a 15A breaker, and a NEMA 5-15 receptacle.

Details tab
How much clearance do I need around the unit?

A minimum of 2" of clearance is required around the back and sides for proper ventilation, with more if it is next to heat-rejecting equipment. Improper installation will void the warranty and can lead to temperature issues, overheating, and possible failure.

Temp Controller tab
What refrigerant does it use and how does it defrost?

It uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, and uses cycle defrost.

Performance tab
What warranty coverage comes with this refrigerator?

It carries a two (2) year parts and labor warranty and a five (5) year compressor warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-VS-SLS-49

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity (cu. ft)
49 Cu. Ft.
Door
Two (2) swing solid doors, self-closing, one right hinged, one left hinged, magnetic door gasket
Shelves
Eight (8) adjustable shelves (adjustable in ½” increments)
Mounting and Installation
Swivel casters – locking front casters
External probe access
3/4″ probe access port on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow Management
Non-applicable
Exterior materials
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Access control
Keyed door locks
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Five (5) year compressor warranty
Product Weight (lbs)
432
Shipping Weight (lbs)
462
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 plug
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed.
Maximum temperature variation (Cabinet air)
+/- 2.5° C
Stability (Simulator ballast)
+/- 0.5° C
Energy Consumption (kWh/day)
<2.2 KWh/day
Average Heat Rejection (BTU/hr)
<570 BTU/h
Pull down time to nominal operating temp
< 40 min (empty)
Noise Pressure Level (dBA)
40 dBA or less installed
Compressor
Hermetic
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle Defrost
Performance Notes
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
Controller technology
Microprocessor temperature controller, C°/F° switchable, resolution is 0.1° C/0.2° F
Battery Backup
For controller temperature display and alarms only, no cooling active
Display technology
Digital temperature display
Adjustable Temperature Range
2° C to 15° C
Digital Communication
Non-applicable
External alarm connection
Remote alarm contacts
Alarms
Audible and visual high/low temperature alarms, remote alarm contacts
Display Probe
Product simulator bottle with glass bead media
Disclaimers
Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure

Related Products

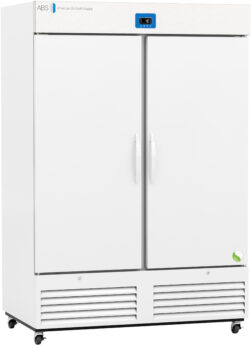

A large, commercial white double-door refrigerator with vertical handles, a digital display at the top center, ventilation grilles at the bottom, and small wheels. The brand ABS and American BioTech Supply are labeled on the upper left.
