7 Cu. Ft. Pharmacy Refrigerator & Controlled Auto Defrost Freezer Combination

Product Number: PH-ABT-HC-RFC7SA-CAD

Our Patented “Controlled Auto Defrost” Technology provides the convenience of an auto-defrost design while still ensuring that vaccines remain at consistent and stable temperatures below 5°F (-15°C)

For more information on Vaccine Storage: Vaccine Storage

The acceptable temperature ranges for vaccine storage are between 36° Fahrenheit and 46° Fahrenheit (or between 2° Celsius and 8° Celsius) in the refrigerator and between -58° Fahrenheit and +5° Fahrenheit (or between -50° Celsius and -15° Celsius) in the freezer.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-HC-RFC7SA-CAD

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What are the adjustable temperature ranges for the refrigerator and freezer?

The refrigerator adjusts from 36°F – 46°F (2°C – 8°C), and the freezer adjusts from 5°F – -13°F (-15°C – -25°C).

Temp Controller tab
What are the exterior dimensions and shipping weight?

Exterior dimensions are 23 ¾"W x 24" D x 53 1/8"H, and the shipping weight is 215 lbs.

Specifications tab
How does the Controlled Auto Defrost work on the freezer?

The freezer uses a patented Controlled Auto Defrost with an auto defrost cycle every 6 hours at a set point of -11°F / -24°C. The refrigerator uses cycle defrost.

Temp Controller tab
What are the electrical requirements?

The unit runs on 115V, 60 Hz, drawing 1.3 Amps for the refrigerator and 1 Amp for the freezer, with a 1/6 HP refrigerator compressor and 1/8 HP freezer compressor. Please note this unit requires 2 outlets.

Specifications tab
How is the shelving configured?

There are 5 adjustable shelves total — 3 in the refrigerator and 2 in the freezer — each with a guard rail on the back to prevent product from being pushed against the back wall. A bottom footed shelf in both compartments allows air circulation.

Details tab
What warranty and certifications come with this unit?

It carries a two year parts and labor warranty, plus an additional three year compressor parts warranty. It is Green Leaf Verified and UL/cUL Listed (US & Canada).

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-HC-RFC7SA-CAD

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 5.2 cu. ft. capacity (Refrigerator) / 1.0 cu. ft. capacity (Freezer) Two exterior swing doors (solid door refrigerator/solid door freezer), right hinged, not reversible
  • 5 adjustable shelves total with guard rail on back to prevent product from being pushed against back wall
  • 3 adjustable shelves, Refrigerator; 2 adjustable shelves, Freezer
  • Bottom footed shelf to allow air circulation, Refrigerator and Freezer Vaccine storage power cord warning label
  • Forced draft circulation Refrigerator
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Integrated door handles
  • Leveling legs
  • Stacking kit
  • Two probe access ports (3/8″); one, refrigerator/one, freezer
  • White powder coated exterior
  • HFC-free refrigerant (R600a), foam insulation and packaging Pharmacy refrigerator/freezer toolkit and temperature logs
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty
  • Pyxis®, Omnicell ®and AcuDose RX® compatible

Accessories:

0504 Basket ABT-SLD BSKT-FULL-0504



0504 Bottom Basket ABT-BSKT-BASE-FIXED-0504

  • Exterior dimensions: 23 ¾”W x 24” D x 53 1/8″H
  • Controlled Auto Defrost freezer, Patented Technology
  • Cycle defrost refrigerator
  • 115V, 60 Hz, 1.3 Amps refrigerator, 1 Amp freezer, 1/6 HP refrigerator, 1/8 HP freezer
  • UL/C-UL listed
  • Shipping weight: 215 lbs.
  • *Please note this unit requires 2 outlets.
  • Microprocessor temperature controller, refrigerator and freezer Digital temperature display with sample simulated probe, refrigerator and freezer
  • Adjustable operating temperature range:
  • Refrigerator: 36°F – 46°F (2°C – 8°C)
  • Freezer: 5°F – -13°F (-15°C – -25°C)
  • Defrost:
  • Auto defrost cycle every 6 hours: (at Set Point -11°F /-24°C)
  • Max air temp in empty freezer: 5°F (-15°C)
  • Max air temp in loaded freezer: 3°F (-16°C)
  • Max sample temp in empty freezer: 0°F (-18°C)
  • Max sample temp in loaded freezer: -4°F (-20°C)
  • Calibrated using a NIST traceable device, certificate included
  • Remote alarm contacts, refrigerator and freezer

Related Products

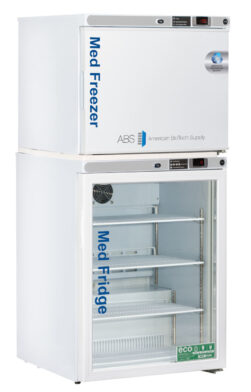

A white medical freezer sits atop a matching medical fridge with a glass door. Both are labeled “Med Freezer” and “Med Fridge” in blue. Shelves inside the fridge are empty. Logos for American BioTech Supply and eco-friendly features are visible.
