9 Cu. Ft. Pharmacy Refrigerator and Freezer Combination-Left Hinged

Product Number: PH-ABT-HC-RFC9-LH



The Premier Pharmacy Dual Temp Combination units feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. REFRIGERATORS ONLY

All models are equipped with digital temperature displays for convenient monitoring. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. The freezer units feature either an automatic or manual defrost operating system. For manual defrost freezers, periodic manual defrosting is required.

This model is designed with a “front-breathing” ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.

For more information on Vaccine Storage: Vaccine Storage

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-HC-RFC9-LH

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature ranges can I set on the refrigerator and freezer?

The refrigerator has an adjustable operating range of 36°F to 46°F (2°C to 8°C), and the freezer has an adjustable operating range of 5°F to -13°F (-15°C to -25°C).

Temp Controller tab
What are the exterior dimensions and shipping weight?

The exterior is 23 ¾" wide, 24 ½" deep, and 66 ¾" high. Shipping weight is 269 lbs.

Specifications tab
Can this unit be built into a cabinet with limited clearance?

Yes. It is designed with a front-breathing ventilation system that eliminates the need for clearance around the top and sides, so it can be incorporated into cabinets and other applications where free space is limited.

Summary
What type of defrost does this combination unit use?

It is a manual defrost freezer with a cycle defrost refrigerator. For the manual defrost freezer, periodic manual defrosting is required.

Specifications tab
What alarms and monitoring features are included?

The unit includes digital temperature displays for both refrigerator and freezer with battery back-up to support temperature monitoring and alarms, audible and visual high and low temperature alarms in both compartments, and remote alarm contacts for both. Each compartment has 2 probes, with 1 in air and 1 in a sample bottle.

Temp Controller tab
What is the warranty on this unit?

It carries a two year parts and labor warranty, plus an additional three year compressor parts warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-HC-RFC9-LH

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 9 Cu. Ft. capacity (4.6 Ref./4.2 Freezer)
  • 2 adjustable/1 fixed shelves refrigerator/2 fixed shelves freezer with guard rails on back in Refrigerator to prevent product from being pushed against back wall
  • Back wall evaporator cover, Refrigerator
  • Forced draft circulation Refrigerator
  • Vaccine storage power cord warning label
  • Keyed door locks
  • Magnetic door gasket for positive seal
  • Recessed door handle
  • Leveling legs
  • Stacking kit
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Pharmacy refrigerator/freezer toolkit and temperature logs
  • Pyxis®, Omnicell® and AcuDose RX® compatible
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty
  • Exterior dimensionsWidth: 23 ¾”Depth: 24 ½”Height: 66 ¾”
  • Manual defrost freezer / cycle defrost refrigerator
  • 115V, 60 Hz, 1.74 Amps Refrigerator, 1.5 Amps Freezer, 1/8 HP Refrigerator and Freezer
  • UL/C-UL listed
  • Shipping weight: 269 lbs.
  • Microprocessor temperature controller, refrigerator and freezer
  • Digital temperature display, refrigerator and freezer with battery back-up to support temperature monitoring and alarms
  • Adjustable operating temperature rangeRefrigerator: 36°F to 46°F (2°C to 8°C)Freezer: 5°F to -13°F (-15°C to -25°C)
  • Calibrated using a NIST traceable device, certificate included
  • Audible and visual high and low temperature alarms, refrigerator and freezer
  • 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
  • Remote alarm contacts, refrigerator and freezer

Related Products

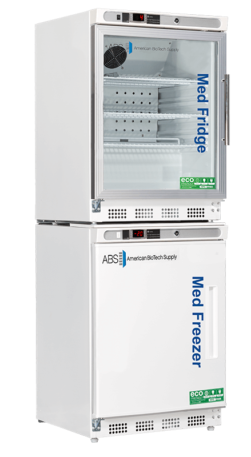

A white, upright medical refrigerator-freezer unit with glass-doored fridge on top and solid-doored freezer below. Both sections are labeled “Med Fridge” and “Med Freezer.” Digital temperature displays and eco-friendly badges are visible on the front.
