16 Cu. Ft. Premier Pharmacy Glass Door Refrigerator Certified to NSF/ANSI 456

Product Number: PH-ABT-NSF-16G
ALSO AVAILABLE IN THESE SIZES12 23 26 49 CU. FT.

These premier upright refrigerators are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. Refrigerators protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.

These glass door refrigerators utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, LED interior lighting, and probe access ports. American Biotech Supply Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency.

For more information on Vaccine Storage: Vaccine Storage
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

*-one or more of these certifications may apply to this unit.



Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-NSF-16G

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature setpoint range does the controller support, and can I change it?

The temperature setpoint range is 1°C to 10°C. The setpoint must remain unaltered from the factory setting to remain compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements.

Temp Controller tab
What are the shelving details inside this refrigerator?

It comes with six shelves, five adjustable and one fixed, with a guard rail on the back.

Description tab
How much does the unit weigh, and what's the shipping weight?

Product weight is 249 lbs. and shipping weight is 289 lbs.

Description tab
What electrical service does this unit need?

The facility electrical requirement is 110-120V AC, 15 A minimum, and the unit has a rated amperage of 3 Amps. It uses a NEMA 5-15 plug with an 8 to 10 ft typical cord that conforms to UL471 requirements.

Description tab
What warranty is included?

Two (2) years parts and labor warranty, excluding display probe calibration, plus a five (5) year compressor warranty.

Description tab
What alarms and remote monitoring options are included?

The controller provides visual and audible High / Low temperature indicators that comply with the alarm requirements defined in the NSF/ANSI 456 Standard for Vaccine Storage, and it has state switching remote alarm contacts for external alarm connection.

Temp Controller tab
What does NSF/ANSI 456 certified mean, and who is it for?

NSF/ANSI 456 is the vaccine storage standard from NSF International, which sets performance and construction requirements for vaccine refrigerators and freezers. A certified unit like this one is tested by an independent third-party lab under protocols that go far beyond those for a standard pharmacy refrigerator: vaccine simulation devices are placed at worst-case positions inside the unit and temperatures are recorded 30 to 90 times faster than a typical data logger. It holds temperature within ±0.5°C, with forced-air circulation and dual temperature monitoring with audible and visual alarms. It is for anyone who stores vaccines or other temperature-sensitive pharmaceuticals and needs certified protection through heavy use and frequent door openings: pharmacies, clinics, physician offices, hospitals and immunization programs.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-NSF-16G

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Description
Single Glass Door Pharmacy/Vaccine Upright Refrigerator
Operational environment
Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
Storage capacity
16 cu. ft. gross volume
Door
One swing glass door, self-closing, right hinged, non-reversible, magnetic sealed gasket, keyed lock
Shelves
Six shelves (five adjustable/one fixed) with guard rail on back
Mounting
3 1/2″ Swivel Casters(two locking)
Interior lighting
Shielded, switched LED lighting, full coverage, balanced spectrum
Airflow management
Forced Air technology, patent pending
External probe access
Rear wall port (3/4″) dia.
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Pyxis®, Omnicell® and AcuDose RX® compatible
General warranty
Two (2) years parts and labor warranty, excluding display probe calibration
Compressor warranty
Five (5) years compressor warranty
Product Weight
249 lbs.
Shipping Weight
289 lbs.
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 plug, 8 to 10 ft typical, conforms to UL471 requirements, Vaccine Storage power cord warning label
Facility Electrical Requirement
110-120V AC: 15 A (minimum)
Agency Listing and Certification
Certified with the temperature performance requirements as defined in the NSF/ANSI 456 Standard for Vaccine Storage for all testing scenarios. UL, C-UL, ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety.
Included Accessories
Pharmacy refrigerator/freezer toolkit and temperature logs



Uniformity¹ (Cabinet air)
+/- 0.9°C
Stability² (Cabinet air)
+/- 1.0°C
Maximum temperature variation (Cabinet air)
+/-1.2°C
Temperature rise after 8 sec door openings
Temperature did not exceed 4.3°C at any probe for all required NSF/ANSI 456 testing protocolsᶟ
Recovery after 3 min door opening
All probes recover to under 8°C within 6.5 min.
Energy consumption
1.25 KWh/day⁴
Average heat rejection
1.97 KWh/day (280BTU/h)⁴
Noise pressure level (dBA)
48 or less installed
Pull down time to 4°C nominal operating temp
30 min



Controller technology
Parametric, microprocessor, LED display with 0.1°C resolution
Temperature setpoint range
1°C to 10°C (Setpoint must remain unaltered from the factory setting to remain compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements)
Calibration
Calibrated using a NIST traceable device, certificate included
External alarm connection
State switching remote alarm contacts
Alarms
Visual and audible indicators, High / Low temperature, compliant with alarm requirements defined in the NSF/ANSI 456 Standard for Vaccine Storage
Simulator ballast
Glass bead thermal media



Related Products

A tall, white medical refrigerator on wheels with a digital temperature display showing 4.0°C. The door has a handle on the left and Med Fridge written vertically. Vents are at the bottom and the ABS logo is at the top left corner of the fridge.
PH-ABT-NSF-16S 16 Cu. Ft. Premier Pharmacy Solid Door Refrigerator Certified to NSF/ANSI 456
Product Number: PH-ABT-NSF-16S
A tall, white medical refrigerator with a glass door, labeled Med Fridge. It has seven metal wire shelves, an electronic display at the top showing temperature settings, a handle on the left, and is mounted on four small wheels.
PH-ABT-NSF-23G 23 Cu. Ft. Premier Pharmacy Glass Door Refrigerator Certified to NSF/ANSI 456
Product Number: PH-ABT-NSF-23G

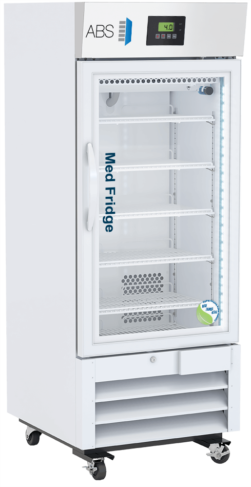

A white, upright medical refrigerator on wheels with a clear glass door, digital temperature display, interior LED lighting, and multiple wire shelves. The words “Med Fridge” and a blue-green sticker are visible on the door. The brand “ABS” is on the top panel.
