23 Cu. Ft. Premier Pharmacy Glass Door Refrigerator Certified to NSF/ANSI 456

Product Number: PH-ABT-NSF-23G
ALSO AVAILABLE IN THESE SIZES12 16 26 49 CU. FT.

These premier upright refrigerators are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. Refrigerators protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.

These glass door refrigerators utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, LED interior lighting, and probe access ports. American Biotech Supply Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency.

For more information on Vaccine Storage: Vaccine Storage
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

*-one or more of these certifications may apply to this unit.



Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-NSF-23G

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the temperature setpoint range on this refrigerator?

The setpoint range is 1°C to 10°C. The setpoint must remain unaltered from the factory setting to remain compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements.

Temp Controller tab
How many shelves does it come with and how are they configured?

It includes seven shelves — six adjustable and one fixed — with a guard rail on the back.

Description tab
What are the exterior dimensions and weight?

The exterior measures 26 7/8″ wide, 34 7/8″ deep, and 81 3/4″ high. Product weight is 216 lbs. and shipping weight is 256 lbs.

Description tab
What are the electrical requirements and plug type?

It is rated at 3 Amps and uses a NEMA 5-15 plug (8 to 10 ft typical) conforming to UL471 requirements. The facility must provide 110-120V AC with a minimum 15 A circuit.

Description tab
What alarms are included on this unit?

The controller provides visual and audible indicators for high and low temperature, compliant with the alarm requirements defined in the NSF/ANSI 456 Standard for Vaccine Storage. State switching remote alarm contacts are also provided for external alarm connection.

Temp Controller tab
What is the warranty?

The general warranty is two (2) years parts and labor, excluding display probe calibration, with a five (5) year compressor warranty.

Description tab
What does NSF/ANSI 456 certified mean, and who is it for?

NSF/ANSI 456 is the vaccine storage standard from NSF International, which sets performance and construction requirements for vaccine refrigerators and freezers. A certified unit like this one is tested by an independent third-party lab under protocols that go far beyond those for a standard pharmacy refrigerator: vaccine simulation devices are placed at worst-case positions inside the unit and temperatures are recorded 30 to 90 times faster than a typical data logger. It holds temperature within ±0.5°C, with forced-air circulation and dual temperature monitoring with audible and visual alarms. It is for anyone who stores vaccines or other temperature-sensitive pharmaceuticals and needs certified protection through heavy use and frequent door openings: pharmacies, clinics, physician offices, hospitals and immunization programs.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-NSF-23G

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Description
Single Glass Door Pharmacy/Vaccine Upright Refrigerator
Operational environment
Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
Storage capacity
23 cu. ft. gross volume
Door
One glass door, self-closing, right hinged, non-reversible, magnetic sealed gasket, keyed lock
Shelves
Seven shelves (six adjustable/one fixed) with guard rail on back
Mounting
3 1/2″ Swivel Castors(two locking)
Interior lighting
Shielded, switched LED lighting, full coverage, balanced spectrum
Airflow management
Forced Air technology, patent pending
External probe access
Rear wall port (3/4″) dia.
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Pyxis®, Omnicell® and AcuDose RX® compatible
General warranty
Two (2) years parts and labor warranty, excluding display probe calibration
Compressor warranty
Five (5) years compressor warranty
 Exterior Width
26 7/8″
 Exterior Depth
34 7/8″
 Exterior Height
81 3/4″
Product Weight
216 lbs.
Shipping Weight
256 lbs.
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 plug, 8 to 10 ft typical, conforms to UL471 requirements, Vaccine Storage power cord warning label
Facility Electrical Requirement
110-120V AC: 15 A (minimum)
Agency Listing and Certification
Certified with the temperature performance requirements as defined in the NSF/ANSI 456 Standard for Vaccine Storage for all testing scenarios. UL, C-UL, ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety.
Included Accessories
Pharmacy refrigerator/freezer toolkit and temperature logs



Uniformity¹ (Cabinet air)
+/- 1.0°C
Stability² (Cabinet air)
+/- 1.1°C
Maximum temperature variation (Cabinet air)
+/-1.4°C
Temperature rise after 8 sec door openings
Temperature did not exceed 6.7°C at any probe for all required NSF/ANSI 456 testing protocolsᶟ
Recovery after 3 min door opening
All probes recover to under 8°C within 6.5 min.
Energy consumption
1.32 KWh/day⁴
Average heat rejection
2.21 KWh/day (315 BTU/h)⁴
Noise pressure level (dBA)
49 or less installed
Pull down time to 4°C nominal operating temp
30 min









Controller technology
Parametric, microprocessor, LED display with 0.1°C resolution
Temperature setpoint range
1°C to 10°C (Setpoint must remain unaltered from the factory setting to remain compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements)
Calibration
Calibrated using a NIST traceable device, certificate included
External alarm connection
State switching remote alarm contacts
Alarms
Visual and audible indicators, High / Low temperature, compliant with alarm requirements defined in the NSF/ANSI 456 Standard for Vaccine Storage
Simulator ballast
Glass bead thermal media



Related Products

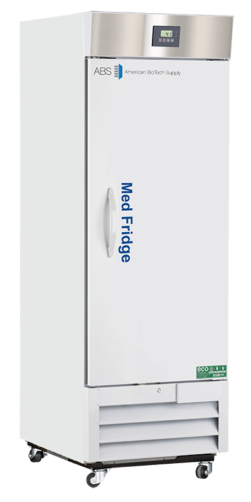

A tall, white, upright refrigerator labeled Medi Fridge with a stainless steel control panel on top, displaying a digital temperature. The fridge stands on four wheels and has air vents at the bottom front. A small eco-friendly sticker appears on the lower right corner.
PH-ABT-NSF-23S 23 Cu. Ft. Premier Pharmacy Solid Door Refrigerator Certified to NSF/ANSI 456
Product Number: PH-ABT-NSF-23S

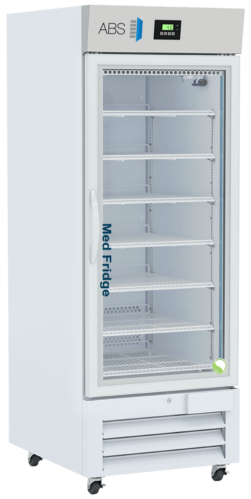

A tall, white medical refrigerator with a glass door, six interior shelves, digital control panel on top, ABS logo, and Med Fridge label on the door; the unit stands on four wheels and is empty inside.
