16 Cu. Ft. Standard Pharmacy Solid Door Refrigerator Certified to NSF/ANSI 456

Product Number: PH-ABT-NSF-S16S
ALSO AVAILABLE IN THESE SIZES12 23 26 49 CU. FT.

These standard upright refrigerators are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. Refrigerators protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.

These solid door refrigerators utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, LED interior lighting, and probe access ports. American Biotech Supply Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency.

For more information on Vaccine Storage: Vaccine Storage
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

*-one or more of these certifications may apply to this unit.



Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-NSF-S16S

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature setpoint range does the controller support, and can I change it?

The temperature setpoint range is 1°C to 10°C. The setpoint must remain unaltered from the factory setting to remain compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements.

Temp Controller tab
How many shelves does the PH-ABT-NSF-S16S come with?

It comes with four shelves, three adjustable and one fixed, with a guard rail on the back.

Description tab
What are the product and shipping weights?

The product weight is 243 lbs. and the shipping weight is 283 lbs.

Description tab
What are the electrical requirements for this refrigerator?

It has a rated amperage of 3 Amps and uses a NEMA 5-15 plug with a cord typically 8 to 10 ft long. The facility must provide 110-120V AC with a 15 A minimum circuit.

Description tab
What warranty is included?

The unit has a two (2) year parts and labor general warranty, plus a five (5) year compressor warranty.

Description tab
What certifications does this refrigerator carry?

It is ENERGY STAR Certified, Intertek ETL Listed, Green Leaf Verified, Certified to NSF/ANSI 456 for vaccine storage, and UL/cUL Listed for the US and Canada. It is also certified to UL471 standard for hydrocarbon refrigerant safety.

Certifications
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-NSF-S16S

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Description
Single Solid Door Pharmacy/Vaccine Upright Refrigerator
Operational environment
Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
Storage capacity
16 cu. ft. gross volume
Door
One swing solid door, self-closing, right hinged, non-reversible, magnetic sealed gasket, keyed lock
Shelves
Four shelves (three adjustable/one fixed) with guard rail on back
Mounting
3 1/2″ Swivel Casters(two locking)
Interior lighting
Shielded, switched LED lighting, full coverage, balanced spectrum
Airflow management
Forced Air technology, patent pending
External probe access
Rear wall port (3/4″) dia.
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Pyxis®, Omnicell® and AcuDose RX® compatible
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Five (5) years compressor warranty
Product Weight
243 lbs.
Shipping Weight
283 lbs.
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 plug, 8 to 10 ft typical, conforms to UL471 requirements, Vaccine Storage power cord warning label
Facility Electrical Requirement
110-120V AC: 15 A (minimum)
Agency Listing and Certification
Certified with the temperature performance requirements as defined in the NSF/ANSI 456 Standard for Vaccine Storage for all testing scenarios. UL, C-UL, ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety.
Included Accessories
Pharmacy refrigerator/freezer toolkit and temperature logs



Uniformity¹ (Cabinet air)
+/- 0.9°C
Stability² (Cabinet air)
+/- 1.0°C
Maximum temperature variation (Cabinet air)
+/-1.2°C
Temperature rise after 8 sec door openings
Temperature did not exceed 6.5°C at any probe for all required NSF/ANSI 456 testing protocolsᶟ
Recovery after 3 min door opening
All probes recover to under 8°C within 4.3 min.
Energy consumption
1.25 KWh/day⁴
Average heat rejection
1.97 KWh/day (280BTU/h)⁴
Noise pressure level (dBA)
48 or less installed
Pull down time to 4°C nominal operating temp
30 min



Controller technology
Parametric, microprocessor, LED display with 0.1°C resolution
Temperature setpoint range
1°C to 10°C (Setpoint must remain unaltered from the factory setting to remain compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements)
Calibration
Calibrated using a NIST traceable device, certificate included
External alarm connection
State switching remote alarm contacts
Alarms
Visual and audible indicators, High / Low temperature, compliant with alarm requirements defined in the NSF/ANSI 456 Standard for Vaccine Storage
Simulator ballast
Glass bead thermal media

Related Products

A tall, white medical refrigerator on wheels with a digital temperature display showing 4.0°C. The door has a handle on the left and Med Fridge written vertically. Vents are at the bottom and the ABS logo is at the top left corner of the fridge.
PH-ABT-NSF-16S 16 Cu. Ft. Premier Pharmacy Solid Door Refrigerator Certified to NSF/ANSI 456
Product Number: PH-ABT-NSF-16S
A tall, white NSF certified medical pharmacy refrigerator with a glass door, interior shelves, digital controls at the bottom, and caster wheels. The label “Med Fridge” is visible inside, and the logo “American BioTech Supply” appears at the top. The fridge is empty.
PH-ABT-NSF-S16G 16 Cu. Ft. Standard Pharmacy Glass Door Refrigerator Certified to NSF/ANSI 456
Product Number: PH-ABT-NSF-S16G
A tall, white NSF/ANSI 456 certified pharmacy refrigerator medical refrigerator with a single door, labeled “Med Fridge.” It has a gray control panel on top, ventilation grilles at the bottom, wheels for mobility, and the logo “American BioTech Supply” on the upper front.
PH-ABT-NSF-S23S 23 Cu. Ft. Standard Pharmacy Solid Door Refrigerator Certified to NSF/ANSI 456
Product Number: PH-ABT-NSF-S23S

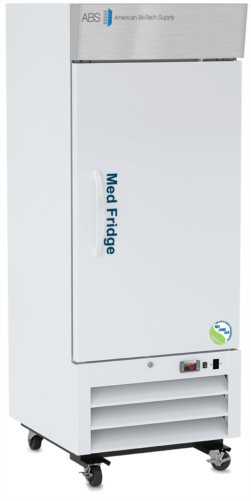

A tall, white medical refrigerator labeled “Med Fridge” with a vertical handle, digital temperature display, ventilation grille, and four caster wheels. It features the ABS logo and a small eco-friendly badge on the lower right of the door.
