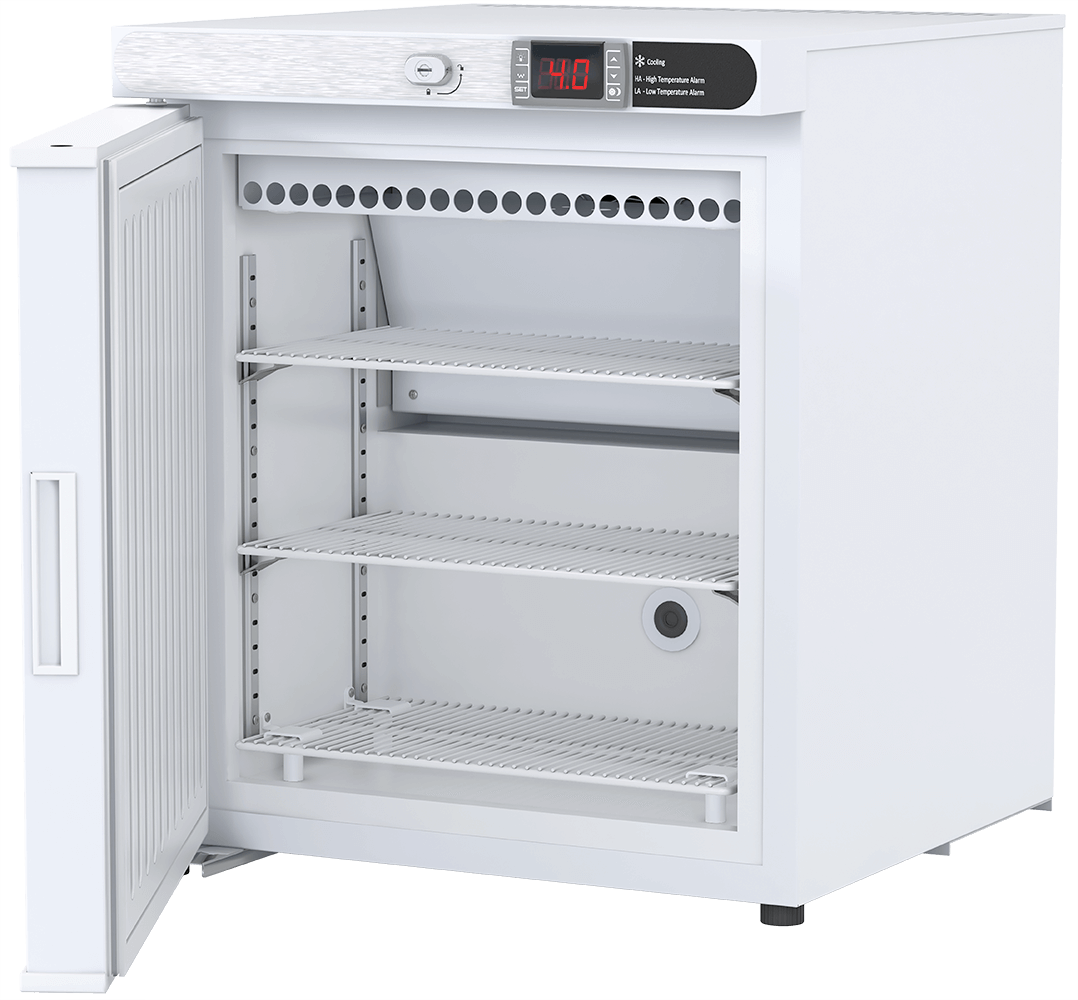

White upright laboratory refrigerator with open door showing three wire shelves. Digital display on top shows "40" in red text. Control panel indicates cooling and temperature alarm functions.
PH-ABT-NSF-UCFS-0104-LH DataSheet Manual 25569 - NSF-ANSI 456 Units V4

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

1 Cu. Ft. Solid Door Freestanding Countertop Vaccine Refrigerator Left Hinged Certified to NSF/ANSI 456

Product Number: PH-ABT-NSF-UCFS-0104-LH
ALSO AVAILABLE IN THESE SIZES1 2.5 4.6 LH 5.2 CU. FT.

These premier countertop refrigerators are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. Refrigerators protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.

These solid door freestanding refrigerators utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, LED interior lighting, and probe access ports with included probes. American Biotech Supply Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency.

For more information on Vaccine Storage: Vaccine Storage
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

*-one or more of these certifications may apply to this unit.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-NSF-UCFS-0104-LH

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature setpoint range does this refrigerator support?

The controller has a temperature setpoint range of 1°C to 10°C. The setpoint must remain unaltered from the factory setting to remain compliant with the NSF/ANSI 456 standard for Vaccine Storage.

Temp Controller tab
What are the exterior dimensions and weight?

The exterior measures 17 1/4″ wide by 19 1/4″ deep by 21 1/4″ high. Product weight is 66 lbs. and shipping weight is 94 lbs.

Description tab
How much clearance do I need to leave around the unit?

4″ of clearance on all sides must be maintained for adequate ventilation. The unit sits on leveling legs.

Description tab
What shelving is included?

The unit comes with three shelves — two adjustable and one fixed — with a guard rail on the back.

Description tab
What refrigerant does it use and how does it defrost?

It uses R600a (isobutane), an EPA SNAP compliant refrigerant. Defrost is cycle optimized and zero energy.

Performance tab
What warranty comes with this refrigerator?

It carries a two (2) year parts and labor warranty, excluding display probe calibration, plus a five (5) year compressor warranty.

Description tab
What does NSF/ANSI 456 certified mean, and who is it for?

NSF/ANSI 456 is the vaccine storage standard from NSF International, which sets performance and construction requirements for vaccine refrigerators and freezers. A certified unit like this one is tested by an independent third-party lab under protocols that go far beyond those for a standard pharmacy refrigerator: vaccine simulation devices are placed at worst-case positions inside the unit and temperatures are recorded 30 to 90 times faster than a typical data logger. It holds temperature within ±0.5°C, with forced-air circulation and dual temperature monitoring with audible and visual alarms. It is for anyone who stores vaccines or other temperature-sensitive pharmaceuticals and needs certified protection through heavy use and frequent door openings: pharmacies, clinics, physician offices, hospitals and immunization programs.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-NSF-UCFS-0104-LH

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Description
Single Solid Door Pharmacy/Vaccine Countertop Refrigerator Left Hinged Freestanding
Operational environment
Indoor use only. Optimal operating range: +18°C to +26°C (+65°F to +78°F), <70% RH
Storage capacity
1 cu. ft. gross volume
Door
One swing solid door, self-closing, left hinged, non-reversible, magnetic sealed gasket, keyed lock
Shelves
Three shelves (two adjustable/one fixed) with guard rail on back
Mounting and Installation
Leveling legs. Note: 4″ of clearance on all sides must be maintained for adequate ventilation
Interior lighting
Shielded, switched LED lighting, full coverage, balanced spectrum
Airflow management
Forced Air technology, patent pending
External probe access
Rear wall port (23/32″) dia.
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Pyxis®, Omnicell® and AcuDose RX® compatible
General warranty
Two (2) years parts and labor warranty, excluding display probe calibration
Compressor warranty
Five (5) years compressor warranty
 Exterior Width
17 1/4″
 Exterior Depth
19 1/4″
 Exterior Height
21 1/4″
Product Weight
66 lbs.
Shipping Weight
94 lbs.
Rated Amperage
0.9 Amps
Power Plug/Power Cord
NEMA 5-15 plug, 8 to 10 ft typical, conforms to UL471 requirements, Vaccine storage power cord warning label
Facility Electrical Requirement
110-120V AC: 15 A (minimum)
Agency Listing and Certification
Certified in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. UL, C-UL, ETL, C-ETL listed (either single or dual agency listings) and certified to UL471 standard, hydrocarbon refrigerant safety.
Included Accessories
Pharmacy refrigerator/freezer toolkit and temperature logs



Refrigeration System
Compressor
Hermetic, high performance
Refrigerant
EPA SNAP compliant, R600a, Isobutane
Condenser
Tube and grid construction, fanless
Evaporator
Plate wall
Defrost
Cycle optimized, zero energy
Performance
Uniformity¹ (Cabinet air)
+/- 1.5°C
Stability² (Cabinet air)
+/- 0.7°C
Maximum temperature variation
+/-1.8°C
Temperature rise after an after 8 sec door openings
Temperature did not exceed 6.8°C at any probe for all required NSF/ANSI 456 testing scenariosᶟ
Recovery after 3 min door opening
All probes recover to under 8°C within 5.5 min.
Energy consumption
0.71 KWh/day⁴
Average heat rejection
1.01 KWh/day (237 BTU/h)⁴
Noise pressure level (dBA)
34 or less installed
Pull down time to nominal operating temp
35 min



Performance data acquired at 22°C ambient, using NSF/ANSI 456 compliant validation ballast probes, empty chamber, during stabilized steady state operation and a DAQ sampling rate of one measurement every 10 seconds

  • Uniformity is defined as the maximum variance in temperature across all probes at any point in time over the testing period
  • Stability is defined as the maximum variance in temperature experienced by any single probe over the testing period
  • Temperature performance for all loaded and unloaded door opening protocols, all alarm, controller and probe requirements as defined in the NSF/ANSI 456 standard for vaccine storage
  • Data per Energy Star test results or equivalent testing and calculation.  Heat rejection based on daily averages, not continuous operation.  Performance exceeds Energy Star requirements.



Controller technology
Parametric, microprocessor, LED display with 0.1°C resolution
Temperature setpoint range
1°C to 10°C (Setpoint must remain unaltered from the factory setting to remain compliant with NSF/ANSI 456 standard for Vaccine Storage requirements)
Calibration
Calibrated using a NIST traceable device, certificate included
External alarm connection
State switching remote alarm contacts
Alarms
Visual and audible indicators
High / Low temperature, compliant with alarm requirements defined in the NSF/ANSI 456 Standard for Vaccine Storage
Simulator ballast
Glass bead thermal media
