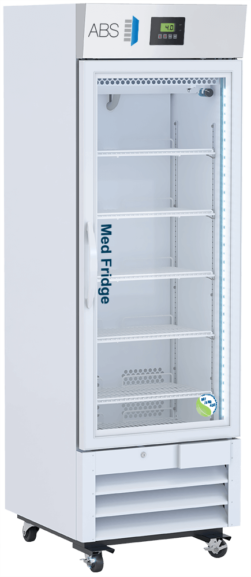

An upright medical refrigerator with a glass door, digital temperature display, white exterior, five adjustable metal shelves, interior lighting, and caster wheels at the base. The door is labeled “Med Fridge” and the current temperature reads 3.4°C.

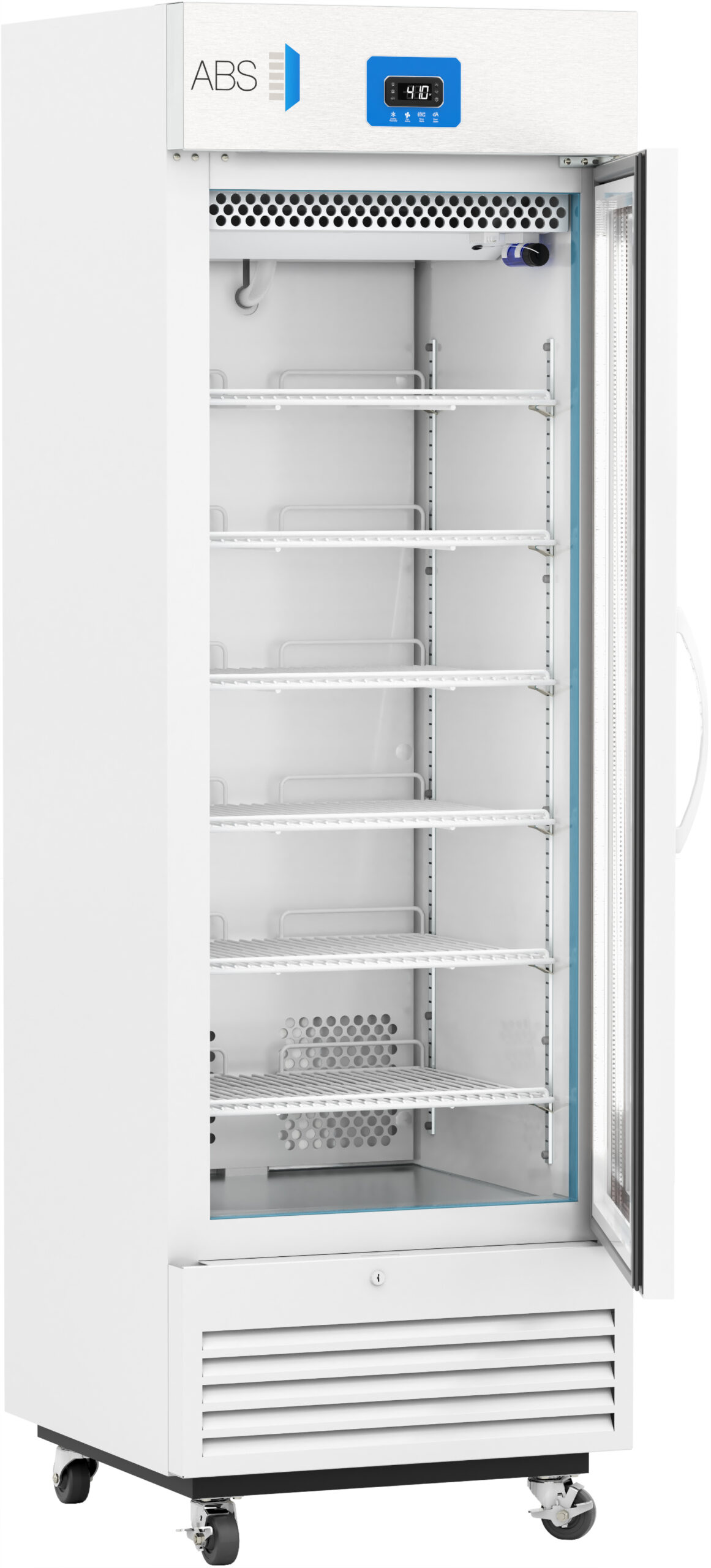

A tall, white, single-door commercial refrigerator with glass front, six adjustable wire shelves, digital temperature display at the top, vented panel at the bottom, and mounted on four caster wheels. The refrigerator is empty and the door is open.
PH-ABT-VS-16G DataSheet

16 Cu. Ft. Premier Glass Door Pharmacy Refrigerator

Product Number: PH-ABT-VS-16G

These premier pharmacy refrigerators are engineered with variable speed technology for exceptional efficiency and performance in clinical and research environments.

They feature precise microprocessor temperature control and variable speed compressor technology. Enjoy low energy consumption and natural hydrocarbon refrigerants for cost-savings and energy efficiency.

Security and monitoring features include a keyed door lock and comprehensive alarms with remote alarm contacts. The cabinet is built with durable powder-coated steel, a self-closing glass door, safety-shielded LED lighting, and adjustable interior shelving to enhance your workflow.

This model delivers optimal temperature stability and includes a 2-year parts and labor warranty with a generous 7-year warranty on the compressor. These premier refrigerators are designed to increase performance and efficiency in your clinical setting.

Product Inquiry
Details
Storage capacity 16 Cu. Ft.
Door One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves Six (6) adjustable shelves (adjustable in ½” increments)
Drawers Non-applicable
Mounting and Installation Swivel casters – locking front casters
Interior lighting LED interior lights are safety shielded and switch controlled
Airflow Management Forced draft air circulation – Patented air flow technology
External probe access Probe access port (3/4″) on rear wall
Insulation Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials White powder coated steel
Access control Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty Two (2) years parts and labor warranty
Compressor warranty Seven (7) years compressor warranty
Product Weight (lbs) 243
Shipping Weight (lbs) 290
Exterior Width (in) 25″
Exterior Depth (in) 28.875″
Exterior Height (in) 79″
Rated Amperage 2 Amps
Power Plug/Power Cord NEMA 5-15 plug, vaccine storage power cord warning label
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification ETL, C-ETL listed. Meets or exceeds Energy Star v2.0 for Laboratory Refrigerators. Official listing pending – see energystar.gov
Compressor Hermetic, Variable speed
Refrigerant EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser Tube and grid, high efficiency fan forced air
Evaporator Fin and tube, high efficiency fan forced air
Defrost Off-cycle defrost, no heat added
Controller technology   Microprocessor temperature controller with variable frequency compressor control, C/F switchable, resolution is 0.1C/0.2F
Noise pressure level   (dBA)   40 dBA or less installed
Display technology   Digital Temperature Display
Stability – simulator    ballast (°C)   +/- 0.3
Average heat rejection (BTU/h)   < 250 BTU/h
Max temp variation – cabinet air (°C)   +/- 1.5 °C
Adjustable Temperature Range 36°F to 46°F (2°C to 8°C), Calibrated using a NIST traceable device, certificate included
External alarm    connection   Remote alarm contacts
Included accessories   Pharmacy refrigerator/freezer toolkit
Battery Backup   For controller temperature display and alarms only, no cooling active
Energy consumption (KWh/day)   <0.9 KWh/day *meets Energy Star v2.0 for Laboratory Refrigerators
Display probe   Product simulator bottle with glass bead media
Pull down time to      nominal operating  temp   < 30 min (empty)
Alarms   Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm


Disclaimer(s):   Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation


Performance Note   Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and       ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady   state, no door openings
