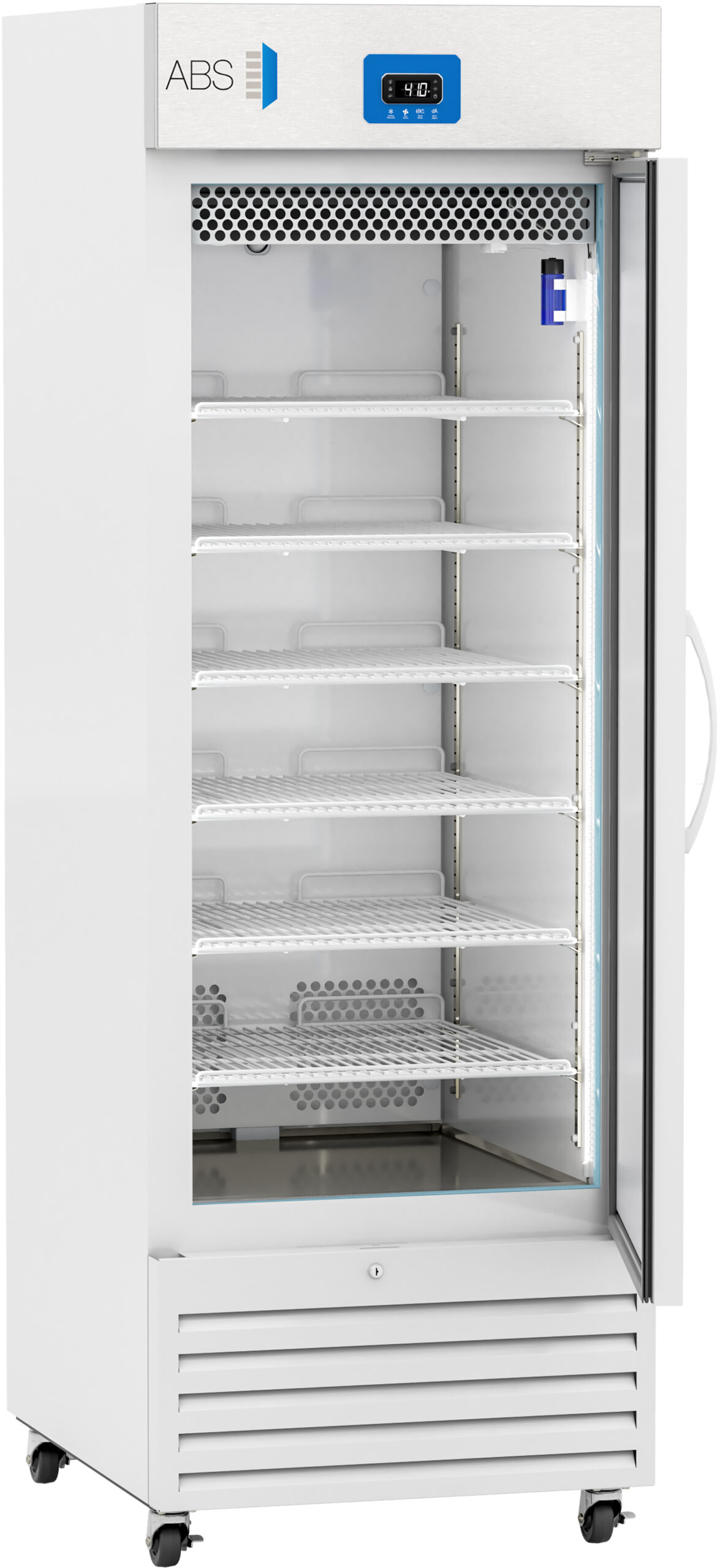

A tall, white laboratory refrigerator with a glass door, digital temperature display, and multiple empty wire shelves. The door is open, revealing the interior and shelves. The unit has wheels and ventilation grilles at the bottom.
PH-ABT-VS-23S DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

23 Cu. Ft. Premier Solid Door Pharmacy Refrigerator with Variable Speed Compressor

Product Number: PH-ABT-VS-23S ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 16 26 36 49 72 CU. FT.

These premier pharmacy refrigerators are engineered with variable speed technology for exceptional efficiency and performance in clinical and research environments. They feature precise microprocessor temperature control and variable speed compressor technology. Enjoy low energy consumption and natural hydrocarbon refrigerants for cost-savings and energy efficiency. Security and monitoring features include a keyed door lock and comprehensive alarms with remote alarm contacts. The cabinet is built with durable powder-coated steel, a self-closing door, safety-shielded LED lighting, and adjustable interior shelving to enhance your workflow. This model delivers optimal temperature stability and includes a 2-year parts and labor warranty with a generous 7-year warranty on the compressor. These premier refrigerators are designed to increase performance and efficiency in your clinical setting.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-VS-23S

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range does this refrigerator maintain?

The adjustable temperature range is 36°F to 46°F (2°C to 8°C), calibrated using a NIST traceable device with a certificate included.

Temp Controller tab
How many shelves come with it, and are they adjustable?

It includes six (6) adjustable shelves, adjustable in ½" increments.

Description tab
What clearance do I need around the unit for installation?

A minimum 2" of clearance is required around the back and sides for proper ventilation, more if next to heat rejecting equipment. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

Temp Controller tab
What alarms are built in?

The unit has audible and visual high/low temperature alarms, remote alarm contacts, a sensor error alarm, a power failure alarm, and a door ajar alarm. Battery backup supports the controller temperature display and alarms only, with no cooling active.

Temp Controller tab
What are the electrical requirements and amp draw?

The facility requires 110–120V AC with a 15A breaker and a NEMA 5-15 receptacle. The unit has a NEMA 5-15 plug and a rated amperage of 3 Amps.

Description tab
What refrigerant and defrost type does it use?

The refrigerant is EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, and the defrost type is Cycle Defrost.

Performance tab
What is a Variable Speed Compressor (VSC)?

A variable speed compressor (VSC) self-adjusts to cooling demand instead of running at one fixed speed, giving greater efficiency and more cost savings than a traditional fixed-speed model. On this unit it works alongside the microprocessor temperature controller, which provides the precise temperature control.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-VS-23S

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity (cu. ft)
23 Cu. Ft.
Door
One (1) swing solid door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves
Six (6) adjustable shelves (adjustable in ½” increments)
Mounting and Installation
Swivel casters – locking front casters
External probe access
3/4″ probe access port on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow Management
Forced draft air circulation, patented air flow technology
Exterior materials
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Access control
Keyed door lock; compatible with optional digital lock (Pyxis, Omnicell, and AcuDose RX)
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Seven (7) year compressor warranty
Product Weight (lbs)
284
Shipping Weight (lbs)
327
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 plug, vaccine storage power cord warning label
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed. Energy Star Certified
Maximum temperature variation (Cabinet air)
+/- 1.5° C
Stability (Simulator ballast)
+/- 0.3° C
Energy Consumption (kWh/day)
<1.2 KWh/day
Average Heat Rejection (BTU/hr)
<320 BTU/h
Pull down time to nominal operating temp
< 35 min (empty)
Noise Pressure Level (dBA)
40 dBA or less installed
Compressor
Hermetic, variable speed
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle Defrost
Performance Notes
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
Controller technology
Microprocessor temperature controller with variable frequency compressor control, C°/F° switchable, resolution is 0.1° C/0.2° F
Battery Backup
For controller temperature display and alarms only, no cooling active
Display technology
 Digital temperature display
Adjustable Temperature Range
36°F to 46°F (2°C to 8°C) Calibrated using a NIST traceable device, certificate included
Digital Communication
Non-applicable
External alarm connection
Remote alarm contacts
Alarms
Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm
Display Probe
Product simulator bottle with glass bead media
Included Accessories
Pharmacy refrigerator/freezer toolkit
Disclaimers
Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure

Related Products

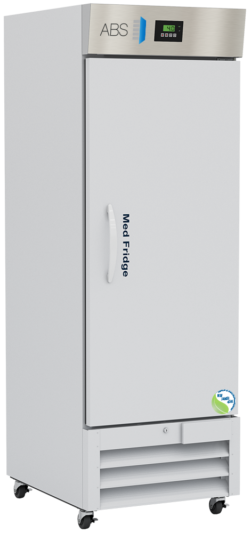

A tall, white, upright refrigerator labeled Medi Fridge with a stainless steel control panel on top, displaying a digital temperature. The fridge stands on four wheels and has air vents at the bottom front. A small eco-friendly sticker appears on the lower right corner.
