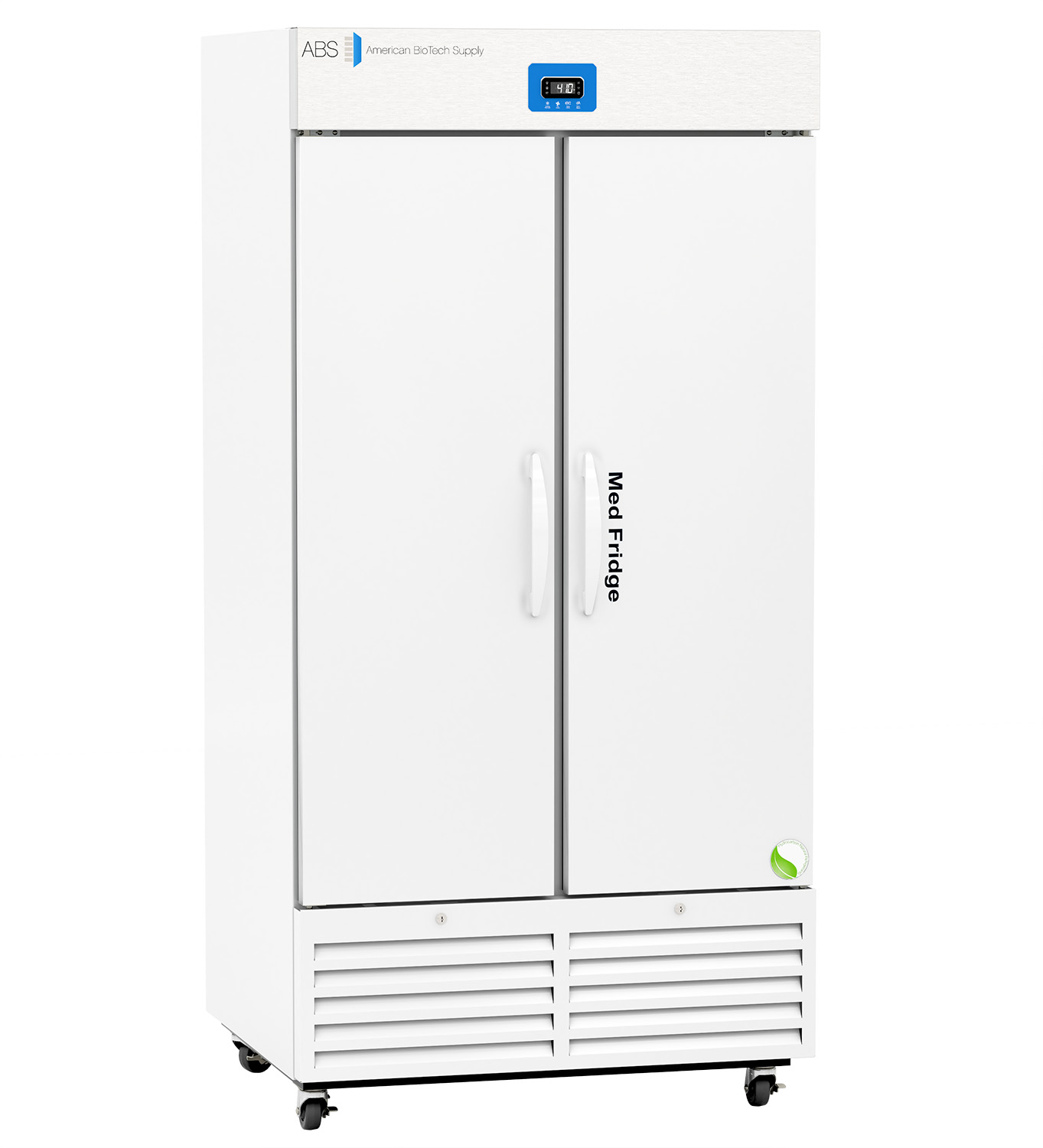

A large, white, double-door medical refrigerator on wheels, showing “ABS” branding at the top left, a digital temperature display at the top center, and “Med Fridge” written on the right door. Vents are at the bottom and there are handles on each door.

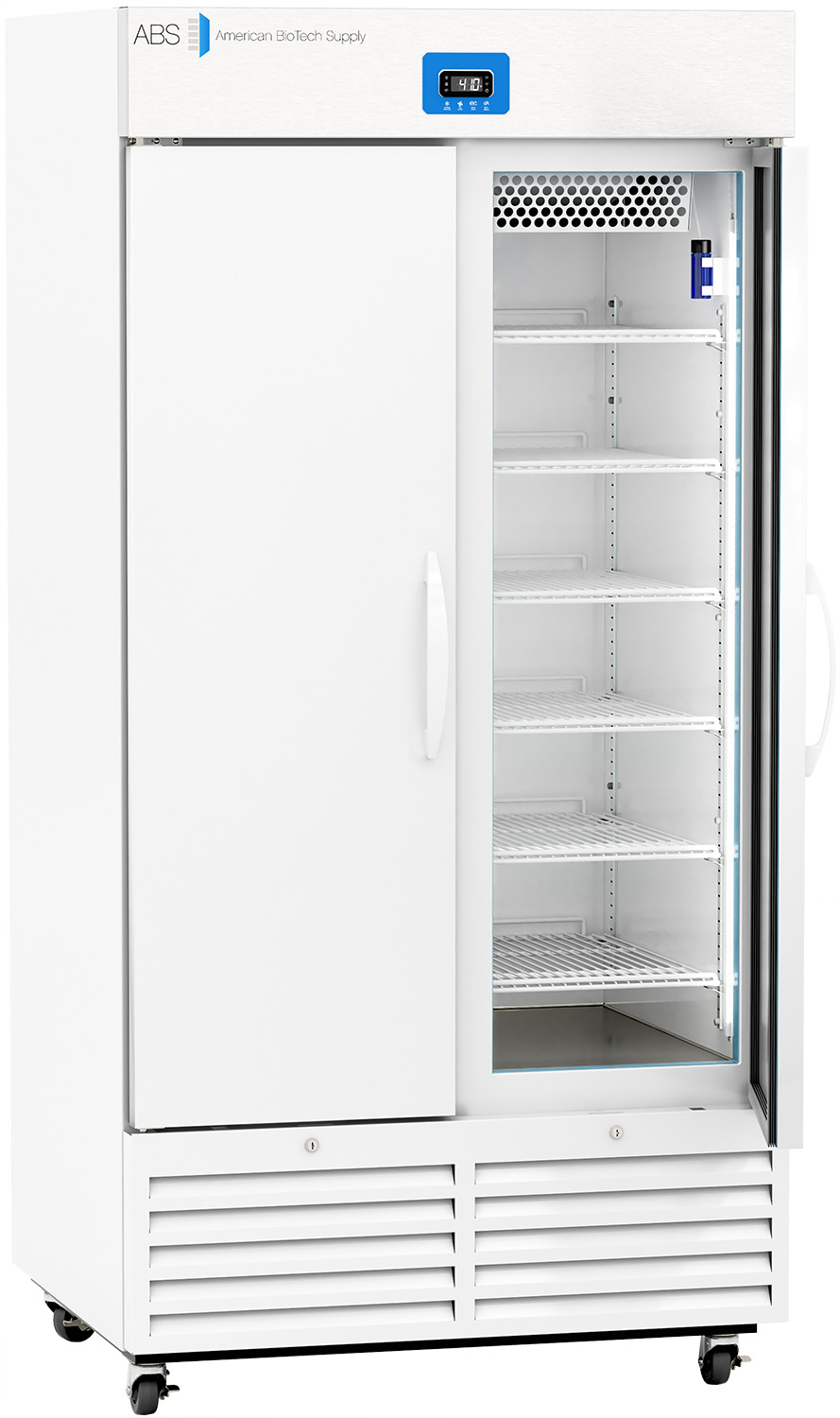

A tall white laboratory refrigerator with two doors: one solid, one glass. The glass door is open, showing multiple empty white wire shelves inside. The front panel displays a digital temperature readout. The unit is on wheels.
PH-ABT-VS-36S DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

36 Cu. Ft. Premier Solid Door Pharmacy Refrigerator with Variable Speed Compressor

Product Number: PH-ABT-VS-36S ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 16 23 26 49 72 CU. FT.

These premier pharmacy refrigerators are engineered with variable speed technology for exceptional efficiency and performance in clinical and research environments. They feature precise microprocessor temperature control and variable speed compressor technology. Enjoy low energy consumption and natural hydrocarbon refrigerants for cost-savings and energy efficiency. Security and monitoring features include keyed door locks and comprehensive alarms with remote alarm contacts. The cabinet is built with durable powder-coated steel, self-closing doors, safety-shielded LED lighting, and adjustable interior shelving to enhance your workflow. This model delivers optimal temperature stability and includes a 2-year parts and labor warranty with a generous 7-year warranty on the compressor. These premier refrigerators are designed to increase performance and efficiency in your clinical setting.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-VS-36S

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range does this refrigerator hold and how stable is it?

The adjustable temperature range is 36° F to 46° F (2° C to 8° C), with maximum cabinet air variation of +/- 1.5° C and simulator ballast stability of +/- 0.3° C. It is calibrated using a NIST traceable device, and the certificate is included.

Refrigeration System tab
What are the exterior dimensions and weight?

The exterior is 39.625″ wide, 34.75″ deep, and 81.75″ tall. Product weight is 345 lbs and shipping weight is 395 lbs.

Details tab
How much clearance does it need around the cabinet?

A minimum of 2″ of clearance is required around the back and sides for proper ventilation, and more if it is next to heat-rejecting equipment. Improper installation will void the warranty and can lead to temperature maintenance issues, overheating, and possible failure.

Temp Controller tab
What alarms are included?

It has audible and visual high/low temperature alarms, remote alarm contacts, a sensor error alarm, a power failure alarm, a door ajar alarm, and alarm mute. Battery backup supports the controller temperature display and alarms only, with no cooling active.

Temp Controller tab
What are the electrical requirements?

The unit is rated at 3 Amps and uses a NEMA 5-15P plug. The facility must provide 110–120V AC, a 15A breaker, and a NEMA 5-15 receptacle.

Details tab
What refrigerant and defrost type does it use, and what is the warranty?

It uses EPA SNAP compliant R600a Isobutane (hydrocarbon natural refrigerant) with cycle defrost and a hermetic variable speed compressor. The warranty is two (2) years parts and labor, plus a seven (7) year compressor warranty.

Refrigeration System tab
What is a Variable Speed Compressor (VSC)?

A variable speed compressor (VSC) self-adjusts to cooling demand instead of running at one fixed speed, giving greater efficiency and more cost savings than a traditional fixed-speed model. On this unit it works alongside the microprocessor temperature controller, which provides the precise temperature control.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-VS-36S

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity (Cu. Ft.)
36 Cu. Ft.
Door
Two (2) swing solid doors, self-closing, one right hinged, one left hinged, magnetic door gasket
Shelves
Twelve (12) adjustable shelves (adjustable in 1/2″ increments)
Mounting and installation
Swivel casters – locking front casters
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow management
Forced draft air circulation, patented air flow technology
External probe access
3/4″ probe access port on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Exterior materials
White powder coated steel
Access control
Keyed door lock
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Seven (7) year compressor warranty
Product weight (lbs)
345
Shipping weight (lbs)
395
Exterior width (in)
39.625″
Exterior depth (in)
34.75″
Exterior height (in)
81.75″
Rated amperage
3 Amps
Power plug/power cord
NEMA 5-15P plug, vaccine storage power cord warning label
Facility electrical requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency listing and certification
ETL, C-ETL listed: certified to UL471 standard
Maximum temperature variation (cabinet air)
+/- 1.5° C
Stability  (simulator ballast)
+/- 0.3° C
Adjustable temperature range
36° F to 46° F (2° C to 8° C), Calibrated using a NIST traceable device, certificate included
Energy consumption (KWh/day)
<2.2 KWh/day
Average heat rejection (BTU/hr)
<570 BTU/h
Noise pressure level (dBA)
40 dBA or less installed
 Pull down time to nominal operating temp
< 40 min (empty)
Compressor
Hermetic, variable speed
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle Defrost
Performance note
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
Controller technology
Microprocessor temperature controller with variable frequency compressor control
Battery backup
For controller temperature display and alarms only, no cooling active
Display technology
Non-applicable
Digital communication
Non-applicable
External alarm connection
Remote alarm contacts
Display probe
Product simulator bottle with glass bead media
Alarms
Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm, and alarm mute
Included accessories
Pharmacy refrigerator/freezer toolkit
Disclaimers
Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
