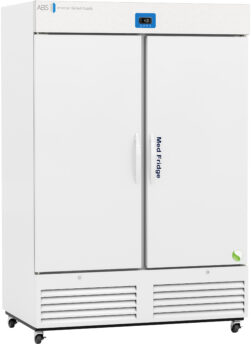

A large white double-door medical refrigerator on wheels with a digital temperature display on top, labeled “Med Fridge.” Vents and a green leaf logo are at the bottom, and the brand “American Biotech Supply” is displayed on the upper left.

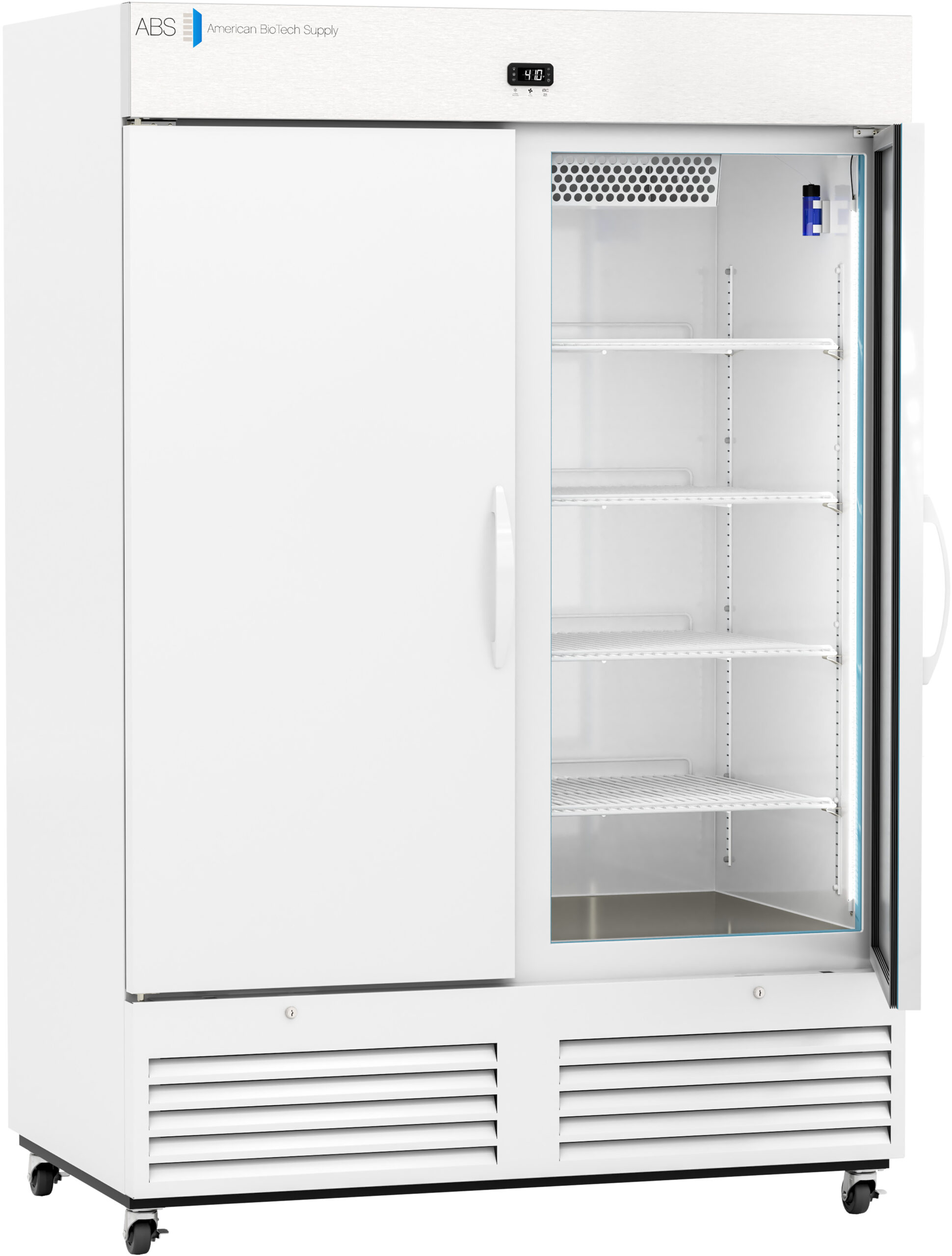

A large white industrial refrigerator with a digital display, sliding doors—one solid, one glass—five adjustable shelves, ventilation grilles at the bottom, and caster wheels; labeled “ABS American Biotech Supply” at the top left.
PH-ABT-VS-S49S DataSheet

PH-ABT-VS-S49S 49 Cu. Ft. Standard Solid Door Pharmacy Refrigerator

Product Number: PH-ABT-VS-S49S ★ NEW PRODUCT

These pharmacy refrigerators are designed for reliable and cost-effective cold storage. This model features ultra-low energy consumption and energy efficient natural refrigerants. Using microprocessor temperature technology, this unit delivers precise temperature monitoring and control. It offers essential security features, including keyed door locks and temperature alarms, along with remote alarm contacts. Enjoy durable powder-coated steel construction and adjustable inner shelving to optimize your workflow. All features are designed to heighten performance and efficiency in your clinical setting.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Description
Storage capacity (cu. ft) 49 Cu. Ft.
Door Two (2) swing solid doors, self-closing, right hinged, not reversible, magnetic door gasket
Shelves Eight (8) adjustable shelves (adjustable in ½” increments)
Mounting and Installation Swivel casters – locking front casters
External probe access 3/4″ probe access port on rear wall
Insulation Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Interior lighting LED interior lights are safety shielded and switch controlled
Airflow Management Forced draft air circulation, patented air flow technology
Exterior materials Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Access control Keyed door locks
General warranty Two (2) year parts and labor warranty
Compressor warranty Five (5) year compressor warranty
Product Weight (lbs) 432
Shipping Weight (lbs) 462
Rated Amperage 3 Amps
Power Plug/Power Cord NEMA 5-15 plug, vaccine storage power cord warning label
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification ETL, C-ETL listed. Meets or exceeds ENERGY STAR® v2.0 for Laboratory Refrigerators. Official listing pending – see energystar.gov
Maximum temperature variation (Cabinet air) +/- 2.5° C
Stability (Simulator ballast) +/- 0.5° C
Energy Consumption (kWh/day) <2.2 KWh/day  *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
Average Heat Rejection (BTU/hr) <570 BTU/h
Pull down time to nominal operating temp < 40 min (empty)
Noise Pressure Level (dBA) 40 dBA or less installed
Compressor Hermetic
Refrigerant EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser Tube and grid, high efficiency fan forced air
Evaporator Fin and tube, high efficiency fan forced air
Defrost Cycle Defrost
Performance Notes Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
Controller technology Microprocessor temperature controller, C°/F° switchable, resolution is 0.1° C/0.2° F
Battery Backup Non-applicable
Display technology Digital temperature display
Adjustable Temperature Range 36°F to 46°F (2°C to 8°C) Calibrated using a NIST traceable device, certificate included
Digital Communication Non-applicable
Included Accessories Pharmacy refrigerator/freezer toolkit
External alarm connection Remote alarm contacts
Alarms Audible and visual high/low temperature alarms, remote alarm contacts
Display Probe Product simulator bottle with glass bead media
Disclaimers Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
