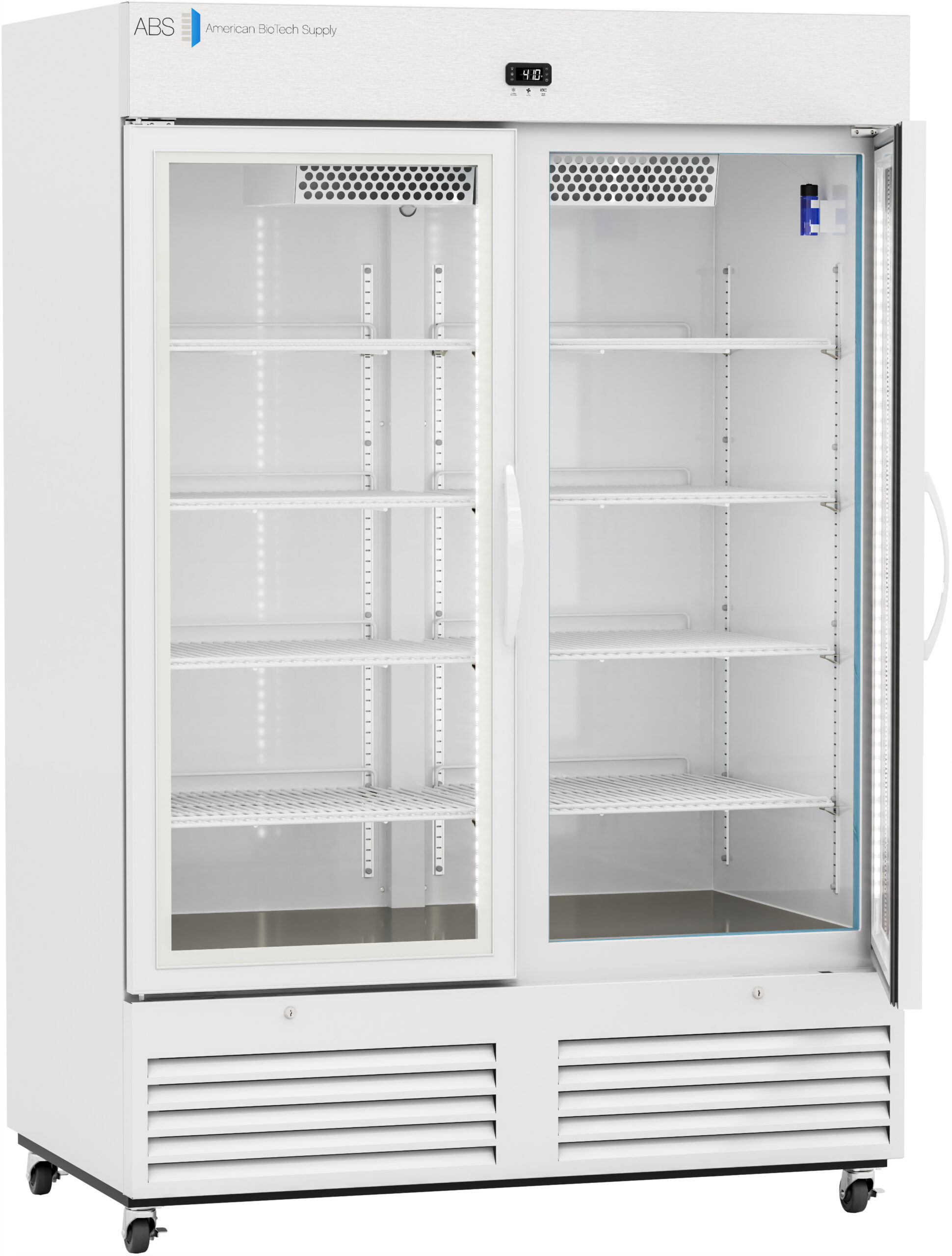

A tall, white laboratory refrigerator with two glass sliding doors, several adjustable wire shelves inside, a digital temperature display above the doors, and ventilation panels at the base. The interior is empty and well-lit.
PH-ABT-VS-S49G DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

49 Cu. Ft. Standard Glass Door Pharmacy Refrigerator

Product Number: PH-ABT-VS-S49G ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 16 23 26 33 36 47 69 72 CU. FT.

These pharmacy refrigerators are designed for reliable and cost-effective cold storage. This model features ultra-low energy consumption and energy efficient natural refrigerants. Using microprocessor temperature technology, this unit delivers precise temperature monitoring and control. It offers essential security features, including a keyed door lock and temperature alarms, along with remote alarm contacts. Enjoy durable powder-coated steel construction, glass door transparency, and adjustable inner shelving to optimize your workflow. All features are designed to heighten performance and efficiency in your clinical setting.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-VS-S49G

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the temperature range on this refrigerator?

The adjustable temperature range is 36° F to 46° F (2° C to 8° C). It's calibrated using a NIST traceable device and a certificate is included.

Temp Controller tab
What are the exterior dimensions and weight?

Exterior dimensions are 54″ wide, 34.75″ deep, and 81.75″ high. Product weight is 448 lbs and shipping weight is 540 lbs.

Details tab
How much clearance does it need for installation?

The refrigerator requires a minimum 2" of clearance at the back and sides of the unit for proper ventilation.

Temp Controller tab
What are the electrical requirements?

The unit is rated at 3 Amps and uses a NEMA 5-15 plug. Facility electrical requirement is 110–120V AC with a 15A breaker and NEMA 5-15 receptacle.

Details tab
What refrigerant and defrost type does it use?

It uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, with a hermetic compressor. Defrost is cycle defrost.

Refrigeration System tab
What warranty comes with it?

It includes a two (2) year parts and labor warranty and a five (5) year compressor warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-VS-S49G

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity
49 Cu. Ft.
Door
Two (2) swing glass doors, self-closing, one right hinged, one left hinged, magnetic door gasket
Shelves
Eight (8) adjustable shelves (adjustable in ½” increments)
Drawers
Non-applicable
Mounting and Installation
Swivel casters – locking front casters
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow Management
Forced draft air circulation – Patented air flow technology
External probe access
Probe access port (3/4″) on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Five (5) year compressor warranty
Product Weight (lbs)
448
Shipping Weight (lbs)
540
Exterior Width (in)
54″
Exterior Depth (in)
34.75″
Exterior Height (in)
81.75″
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 plug, vaccine storage power cord warning label
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed, Energy Star Certified
Compressor
Hermetic
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle defrost
Controller technology
Microprocessor temperature controller, C°/F° switchable, resolution is 0.1° C/0.2° F
Noise pressure level   (dBA)
40 dBA or less installed
Display technology
 Digital Temperature Display
Stability – simulator    ballast (°C)
+/- 0.5° C
Average heat rejection (BTU/h)
< 570 BTU/h
Max temp variation – cabinet air (°C)
+/- 2.5° C
Adjustable Temperature Range
36° F to 46° F (2° C to 8° C), Calibrated using a NIST traceable device, certificate included
External alarm    connection
Remote alarm contacts
Included accessories
Pharmacy refrigerator/freezer toolkit
Energy consumption (KWh/day)
<2.2 KWh/day *meets Energy Star v2.0 for Laboratory Refrigerators
Display probe
Product simulator bottle with glass bead media
Pull down time to nominal operating   temp
< 40 min (empty)
Alarms
Audible and visual high/low temperature alarms, remote alarm contacts
Disclaimer(s):
Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance Note
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings

Related Products

A large, white, commercial refrigerator with glass double doors, labeled “Med Fridge.” The fridge has multiple empty shelves inside, a digital temperature display on top, vents at the bottom, and is set on caster wheels for mobility.
PH-ABT-VS-49G 49 Cu. Ft. Premier Glass Door Pharmacy Refrigerator with Variable Speed Compressor
Product Number: PH-ABT-VS-49G

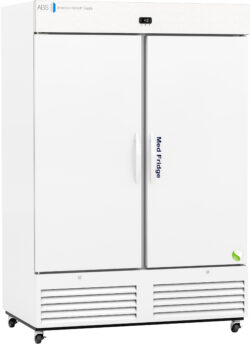

A large white double-door medical refrigerator on wheels with a digital temperature display on top, labeled “Med Fridge.” Vents and a green leaf logo are at the bottom, and the brand “American Biotech Supply” is displayed on the upper left.
