Standard Series
A tall, white medical refrigerator with a glass door displays five empty shelves. The digital display at the top shows a temperature of 2.4°C. “Medi Fridge” is written inside. The fridge is on wheels and has vents near the bottom. An upright, white laboratory refrigerator with a glass door is shown open, revealing five empty wire shelves inside. The digital temperature display above the door reads 4.0°C. The unit has a handle on the door and sits on four caster wheels.
A tall, white medical refrigerator with a glass door displays five empty shelves. The digital display at the top shows a temperature of 2.4°C. “Medi Fridge” is written inside. The fridge is on wheels and has vents near the bottom.

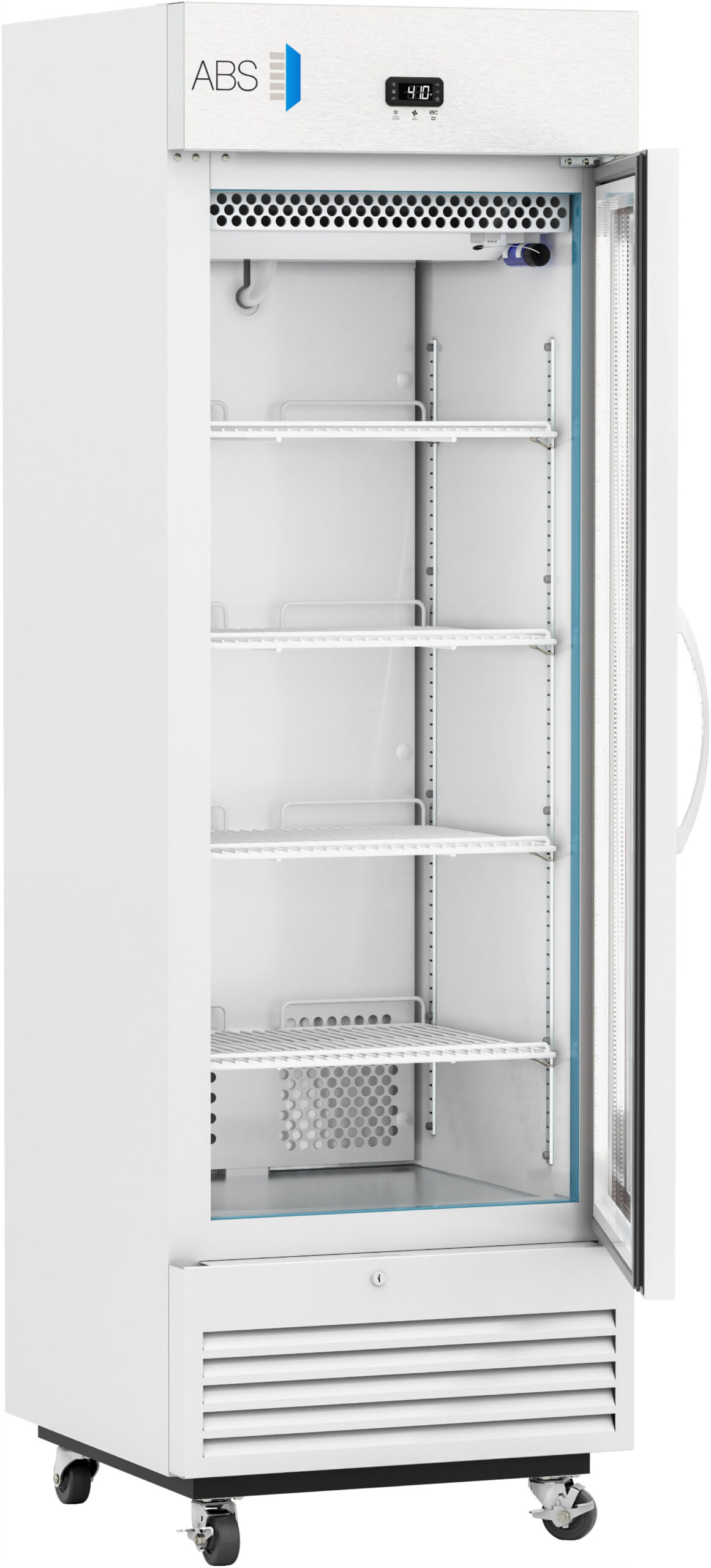

An upright, white laboratory refrigerator with a glass door is shown open, revealing five empty wire shelves inside. The digital temperature display above the door reads 4.0°C. The unit has a handle on the door and sits on four caster wheels.
PH-ABT-VS-S16G DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

16 Cu. Ft. Standard Glass Door Pharmacy Refrigerator

Product Number: PH-ABT-VS-S16G
ALSO AVAILABLE IN THESE SIZES12 23 26 33 36 47 49 69 72 CU. FT.

These pharmacy refrigerators are designed for reliable and cost-effective cold storage. This model features ultra-low energy consumption and energy efficient natural refrigerants. Using microprocessor temperature technology, this unit delivers precise temperature monitoring and control. It offers essential security features, including a keyed door lock and temperature alarms, along with remote alarm contacts. Enjoy durable powder-coated steel construction, glass door transparency, and adjustable inner shelving to optimize your workflow. All features are designed to heighten performance and efficiency in your clinical setting.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-VS-S16G

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range does this refrigerator hold?

The adjustable temperature range is 36°F to 46°F (2°C to 8°C). It is calibrated using a NIST traceable device, and a certificate is included.

Temp Controller tab
What are the exterior dimensions and weight?

The exterior is 25″ wide, 28.875″ deep, and 79″ high. Product weight is 243 lbs and shipping weight is 290 lbs.

Details tab
How much clearance does the unit need for ventilation?

A minimum of 2″ of clearance is required at the back and sides of the unit for proper ventilation.

Temp Controller tab
What are the electrical requirements?

The unit is rated at 2 Amps and uses a NEMA 5-15 plug. Facility requirements are 110–120V AC, a 15A breaker, and a NEMA 5-15 receptacle.

Details tab
What refrigerant and defrost type does it use?

It uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, with a hermetic compressor. Defrost is cycle defrost.

Refrigeration System tab
What warranty is included?

The unit comes with a two (2) year parts and labor warranty and a five (5) year compressor warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-VS-S16G

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity
16 Cu. Ft.
Door
One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves
Four (4) adjustable shelves (adjustable in ½” increments)
Drawers
Non-applicable
Mounting and Installation
Swivel casters – locking front casters
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow Management
Forced draft air circulation – Patented air flow technology
External probe access
Probe access port (3/4″) on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty
Two(2) year parts and labor warranty
Compressor warranty
Five (5) year compressor warranty
Product Weight (lbs)
243
Shipping Weight (lbs)
290
Exterior Width (in)
25″
Exterior Depth (in)
28.875″
Exterior Height (in)
79″
Rated Amperage
2 Amps
Power Plug/Power Cord
NEMA 5-15 plug, vaccine storage power cord warning label
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed, Energy Star Certified
Compressor
Hermetic
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle defrost
Controller technology
Microprocessor temperature controller, C°/F° switchable, resolution is 0.1° C/0.2° F
Noise pressure level   (dBA)
40 dBA or less installed
Display technology
 Digital Temperature Display
Stability – simulator    ballast (°C)
+/- 0.5° C
Average heat rejection (BTU/h)
< 250 BTU/h
Max temp variation – cabinet air (°C)
+/- 2.5° C
Adjustable Temperature Range
36° F to 46° F (2° C to 8° C), Calibrated using a NIST traceable device, certificate included
External alarm    connection
Remote alarm contacts
Included accessories
Pharmacy refrigerator/freezer toolkit
Energy consumption (KWh/day)
<0.9 KWh/day *meets Energy Star v2.0 for Laboratory Refrigerators
Display probe
Product simulator bottle with glass bead media
Pull down time to nominal operating   temp
< 30 min (empty)
Alarms
Audible and visual high/low temperature alarms, remote alarm contacts
Disclaimer(s):
Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance Note
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings

Related Products

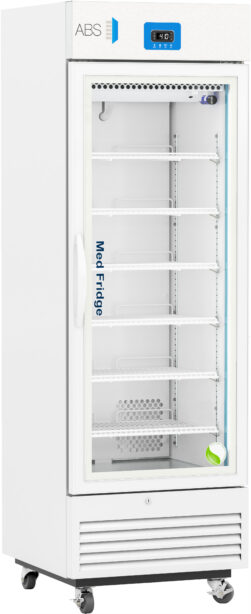

An upright medical refrigerator with a glass door, digital temperature display, white exterior, five adjustable metal shelves, interior lighting, and caster wheels at the base. The door is labeled “Med Fridge” and the current temperature reads 3.4°C.
PH-ABT-VS-16G 16 Cu. Ft. Premier Glass Door Pharmacy Refrigerator with Variable Speed Compressor
Product Number: PH-ABT-VS-16G

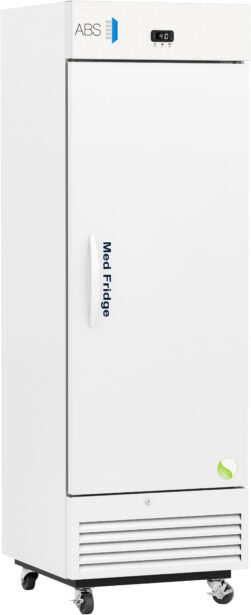

A tall, white medical refrigerator with a digital temperature display showing 4.0°C. The door has a vertical handle and Med Fridge written on it. The fridge stands on caster wheels and has vented panels at the bottom. A green leaf logo appears on the lower right.
PH-ABT-VS-S16S 16 Cu. Ft. Standard Solid Door Pharmacy Refrigerator
Product Number: PH-ABT-VS-S16S
A tall, white, single-door medical refrigerator with a glass front displays five empty wire shelves. The digital temperature display above the door shows 2.0°C. The fridge stands on four small wheels and has ventilation slots at the bottom.
PH-ABT-VS-S23G 23 Cu. Ft. Standard Glass Door Pharmacy Refrigerator
Product Number: PH-ABT-VS-S23G

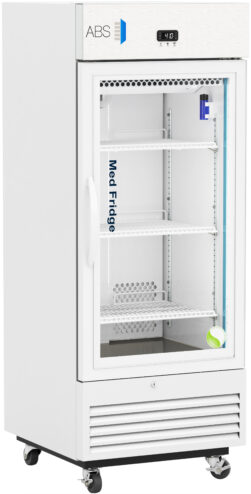

A tall, white medical refrigerator with a glass door, digital temperature display, interior shelves, and Medi Fridge text. The unit has vents at the bottom, sits on four wheels, and displays the ABS logo on the upper left corner.
