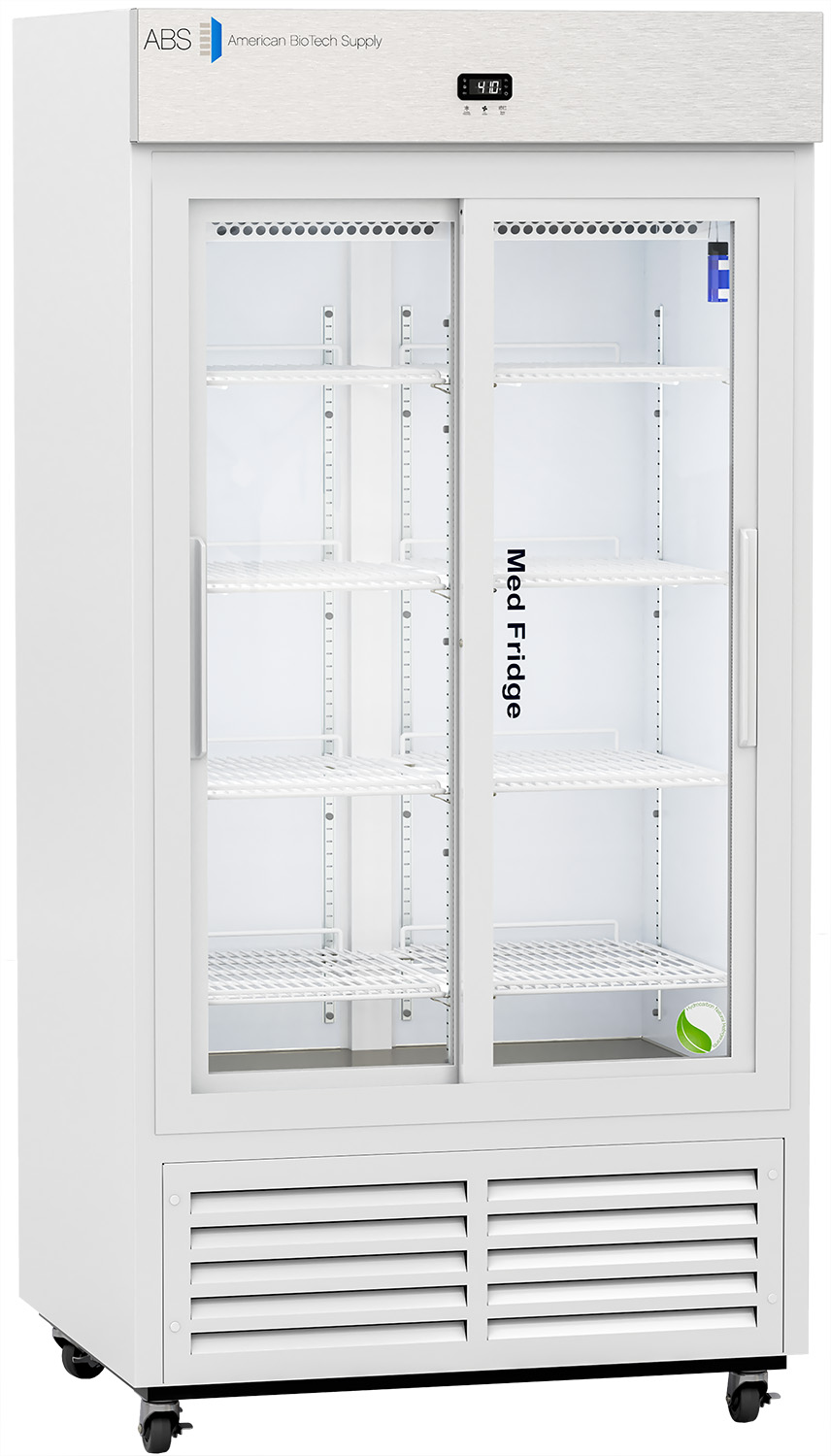

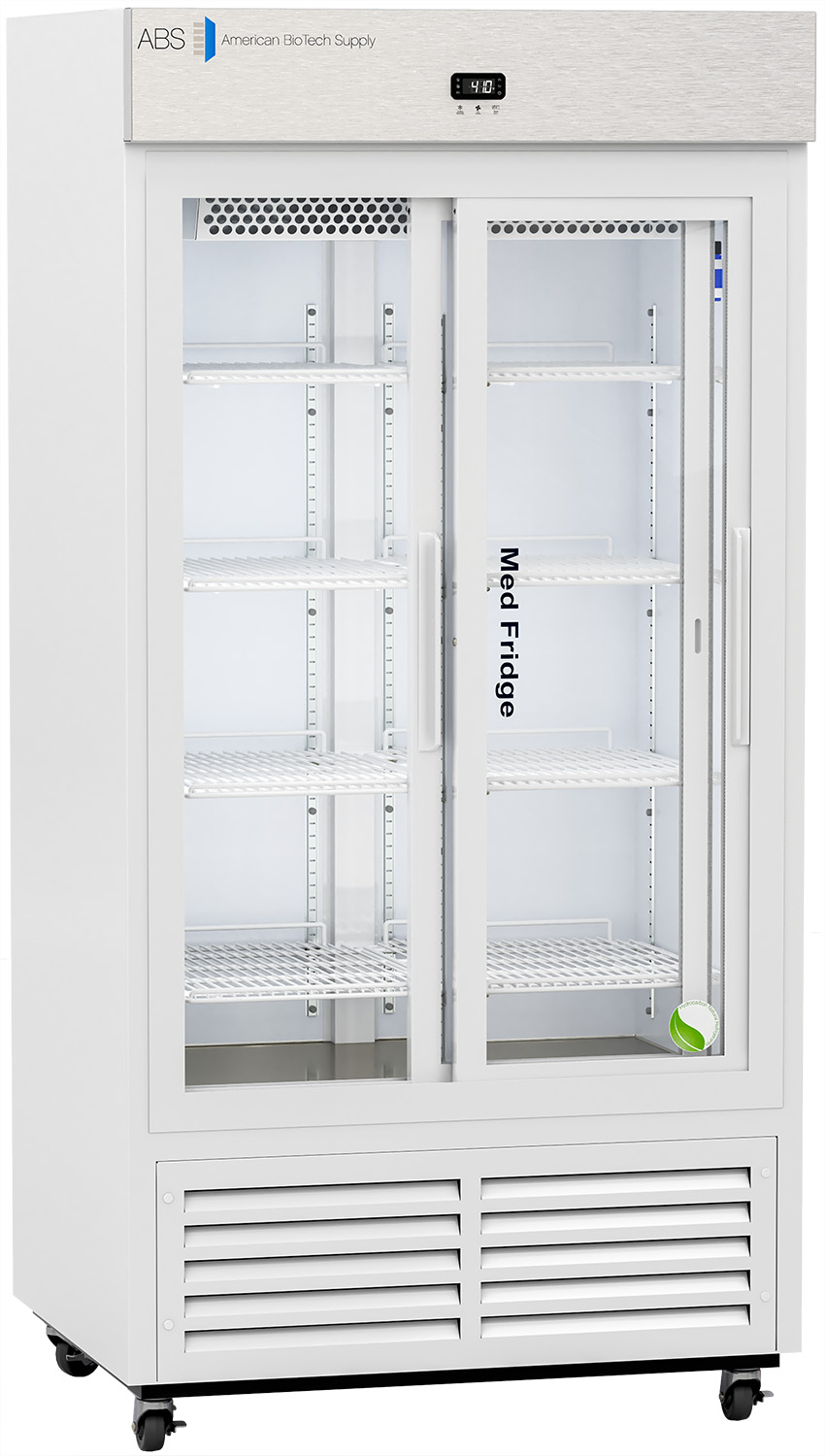

A tall, white laboratory refrigerator with glass sliding doors, digital temperature display, multiple adjustable wire shelves inside, and caster wheels underneath. The brand name “American BioTech Supply” and “Med- Fridge” text are visible on the front. A tall, white medical refrigerator with glass double doors showing empty wire shelves inside. The control panel is above the doors, and the bottom has a vent. The label reads Med Fridge and American Biotech Supply. The fridge is on caster wheels.
A tall, white laboratory refrigerator with glass sliding doors, digital temperature display, multiple adjustable wire shelves inside, and caster wheels underneath. The brand name “American BioTech Supply” and “Med- Fridge” text are visible on the front.
A tall, white medical refrigerator with glass double doors showing empty wire shelves inside. The control panel is above the doors, and the bottom has a vent. The label reads Med Fridge and American Biotech Supply. The fridge is on caster wheels.
PH-ABT-VS-S33G DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

33 Cu. Ft. Standard Sliding Glass Door Pharmacy Refrigerator

Product Number: PH-ABT-VS-S33G ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 16 23 26 36 47 49 69 72 CU. FT.

These pharmacy refrigerators are designed for reliable and cost-effective cold storage. This model features ultra-low energy consumption and energy efficient natural refrigerants. Using microprocessor temperature technology, this unit delivers precise temperature monitoring and control. It offers essential security features, including a keyed door lock and temperature alarms, along with remote alarm contacts. Enjoy durable powder-coated steel construction, glass door transparency, and adjustable inner shelving to optimize your workflow. All features are designed to heighten performance and efficiency in your clinical setting.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-VS-S33G

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range does this refrigerator hold?

The adjustable temperature range is 36° F to 46° F (2° C to 8° C), calibrated using a NIST traceable device with certificate included.

Refrigeration System tab
How big is the unit and how much does it weigh?

Exterior dimensions are 39.625″ wide, 32.5″ deep, and 81.75″ tall. Product weight is 355 lbs and shipping weight is 419 lbs.

Details tab
How much clearance does it need for installation?

The refrigerator requires a minimum 2″ of clearance around the back and sides for proper ventilation, with more if located next to heat-rejecting equipment. Improper installation will void the warranty and can lead to temperature maintenance issues, overheating, and possible failure.

Temp Controller tab
What alarms are included?

It has audible and visual high/low temperature alarms, remote alarm contacts, and a sensor error alarm.

Temp Controller tab
What are the electrical requirements?

The unit is rated at 3 Amps and uses a NEMA 5-15P plug. The facility must provide 110–120V AC with a 15A breaker and NEMA 5-15 receptacle.

Details tab
What refrigerant is used and how is defrost handled?

The system uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, with cycle defrost.

Refrigeration System tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-VS-S33G

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity (Cu. Ft.)
33 Cu. Ft.
Door
Two (2) sliding glass doors, self-closing
Shelves
Eight (8) adjustable shelves (adjustable in 1/2″ increments)
Mounting and installation
Swivel casters – locking front casters
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow management
Non-applicable
External probe access
3/4″ probe access port on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Exterior materials
White powder coated steel
Access control
Keyed door lock
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Five (5) year compressor warranty
Product weight (lbs)
355
Shipping weight (lbs)
419
Exterior width (in)
39.625″
Exterior depth (in)
32.5″
Exterior height (in)
81.75″
Rated amperage
3 Amps
Power plug/power cord
NEMA 5-15P plug, vaccine storage power cord warning label
Facility electrical requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency listing and certification
ETL, C-ETL listed: certified to UL471 standard
Maximum temperature variation (cabinet air)
+/- 3.0° C
Stability  (simulator ballast)
+/- 0.5° C
Adjustable temperature range
36° F to 46° F (2° C to 8° C), Calibrated using a NIST traceable device, certificate included
Energy consumption (KWh/day)
<2.5 KWh/day
Average heat rejection (BTU/hr)
<640 BTU/h
Noise pressure level (dBA)
40 dBA or less installed
Pull down time to nominal operating temp
< 40 min (empty)
Compressor
Hermetic
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle Defrost
Performance note
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
Controller technology
Microprocessor temperature controller
Battery backup
Non-applicable
Display technology
Non-applicable
Digital communication
Non-applicable
External alarm connection
Remote alarm contacts
Display probe
Product simulator bottle with glass bead media
Alarms
Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm
Included accessories
Pharmacy refrigerator/freezer toolkit
Disclaimers
Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
