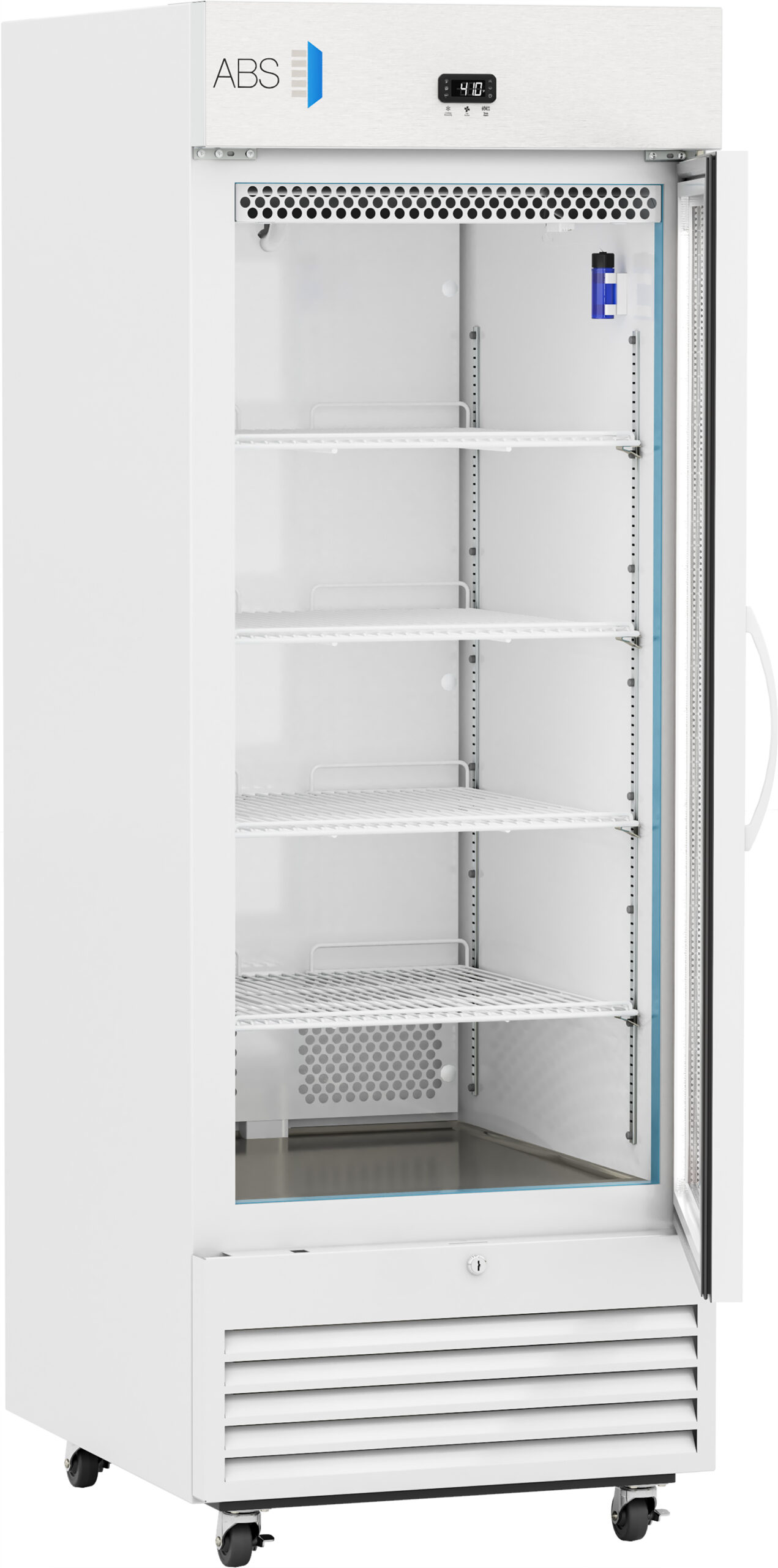

A tall, white, upright laboratory refrigerator with a glass door is shown open. The interior has multiple adjustable wire shelves, a digital temperature display at the top, and wheels at the base for mobility. The unit is clean and empty.
PH-ABT-VS-S26G DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

26 Cu. Ft. Standard Glass Door Pharmacy Refrigerator

Product Number: PH-ABT-VS-S26G
ALSO AVAILABLE IN THESE SIZES12 16 23 33 36 47 49 69 72 CU. FT.

These pharmacy refrigerators are designed for reliable and cost-effective cold storage. This model features ultra-low energy consumption and energy efficient natural refrigerants. Using microprocessor temperature technology, this unit delivers precise temperature monitoring and control. It offers essential security features, including a keyed door lock and temperature alarms, along with remote alarm contacts. Enjoy durable powder-coated steel construction, glass door transparency and adjustable inner shelving to optimize your workflow. All features are designed to heighten performance and efficiency in your clinical setting.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-VS-S26G

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this refrigerator?

The adjustable temperature range is 36° F to 46° F (2° C to 8° C). It is calibrated using a NIST traceable device, and the certificate is included.

Temp Controller tab
What are the exterior dimensions and weight?

The exterior is 28.5″ wide, 36.5″ deep, and 81.75″ high. Product weight is 292 lbs and shipping weight is 345 lbs.

Details tab
How much clearance does it need around the cabinet?

The refrigerator requires a minimum 2” of clearance at the back and sides of the unit for proper ventilation.

Temp Controller tab
What refrigerant and defrost type does it use?

It uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, with a hermetic compressor. The defrost is cycle defrost.

Refrigeration System tab
What electrical service is required?

The facility must provide 110–120V AC on a 15A breaker with a NEMA 5-15 receptacle. The unit is rated at 3 Amps and ships with a NEMA 5-15 plug.

Details tab
What alarms and monitoring features are included?

The unit has audible and visual high/low temperature alarms with remote alarm contacts, and a digital temperature display driven by a microprocessor controller with 0.1° C/0.2° F resolution. A product simulator bottle with glass bead media is used as the display probe, and a 3/4″ probe access port is provided on the rear wall.

Temp Controller tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-VS-S26G

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity (cu. ft)
26 Cu. Ft.
Door
One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves
Four (4) adjustable shelves (adjustable in ½” increments)
Drawers
Non-applicable
Mounting and Installation
Swivel casters – locking front casters
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow Management
Forced draft air circulation – Patented air flow technology
External probe access
Probe access port (3/4″) on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Five (5) year compressor warranty
Product Weight (lbs)
292
Shipping Weight (lbs)
345
Exterior Width (in)
28.5″
Exterior Depth (in)
36.5″
Exterior Height (in)
81.75″
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 plug, vaccine storage power cord warning label
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed, Energy Star Certified
Compressor
Hermetic
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle defrost
Controller technology
Microprocessor temperature controller, C°/F° switchable, resolution is 0.1° C/0.2° F
Noise pressure level   (dBA)
40 dBA or less installed
Display technology
 Digital Temperature Display
Stability – simulator    ballast (°C)
+/- 0.5° C
Average heat rejection (BTU/h)
< 320 BTU/h
Max temp variation – cabinet air (°C)
+/- 2.5° C
Adjustable Temperature Range
36° F to 46° F (2° C to 8° C), Calibrated using a NIST traceable device, certificate included
External alarm    connection
Remote alarm contacts
Included accessories
Pharmacy refrigerator/freezer toolkit
Energy consumption (KWh/day)
<1.2 KWh/day *meets Energy Star v2.0 for Laboratory Refrigerators
Display probe
Product simulator bottle with glass bead media
Pull down time to nominal operating   temp
<35 min (empty)
Alarms
Audible and visual high/low temperature alarms, remote alarm contacts
Disclaimer(s):
Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance Note
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings

Related Products

A tall, white medical refrigerator with a glass front door, digital temperature display, seven adjustable wire shelves, ventilation slots at the bottom, and caster wheels. The words Med Fridge are printed on the inside of the door.
PH-ABT-VS-26G 26 Cu. Ft. Premier Glass Door Pharmacy Refrigerator with Variable Speed Compressor
Product Number: PH-ABT-VS-26G

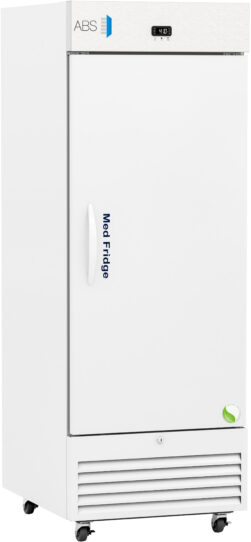

A tall, white medical refrigerator labeled “Medi-Fridge” with a digital temperature display on the top front panel showing 3.4°C, a solid door with a handle, ventilation grilles at the bottom, and four caster wheels for mobility.
PH-ABT-VS-S26S 26 Cu. Ft. Standard Solid Door Pharmacy Refrigerator
Product Number: PH-ABT-VS-S26S

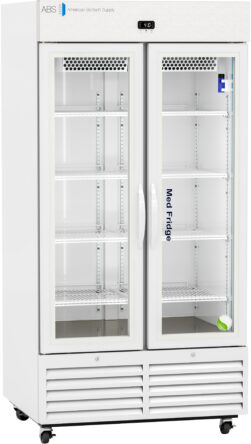

A tall, white, double-door medical refrigerator with glass doors, labeled Med Fridge. It has a digital temperature display at the top, several adjustable wire shelves inside, and ventilation panels at the bottom. The fridge is on wheels.
