16 Cu. Ft. Premier Glass Door Chromatography Refrigerator

Product Number: ABT-HC-CP-16
ALSO AVAILABLE IN THESE SIZES23 26 33 36 47 49 69 72 CU. FT.



The Premier Chromatography Refrigerators feature a microprocessor temperature controller and display, allowing for precise temperature control, verification and recovery versus mechanical style thermostats.  One interior duplex electrical outlet and two side wall port holes are provided to simplify the setup and operation of laboratory procedures. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. All Chromatography units require two electrical outlets.

The temperature display and alarm module offers an array of robust security features with a monitoring and alarm system that is 100% independent of a microprocessor temperature controller.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-CP-16

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the temperature range on this chromatography refrigerator?

The adjustable operating temperature range is 1°-10°C, controlled by a microprocessor temperature controller with a digital display that can be set in Celsius or Fahrenheit with .1° resolution.

Temp Controller tab
What are the exterior dimensions and will I need extra clearance for the access ports?

Exterior dimensions are 26 1/2" W x 29 3/4" D x 79" H with casters, or 75 1/2" H without casters. The width is 26 1/2" with the access ports closed and 34 1/2" with them open, so plan clearance accordingly.

Specifications tab
How many shelves does it come with and are they adjustable?

It comes with three adjustable shelves, adjustable in 1/2" increments.

Details tab
What alarms are included on this unit?

The digital temperature display and alarm module provides audible and visual high/low temperature alarms, a sensor error alarm, a power failure alarm, remote alarm contacts, alarm validation (audible, visual, and remote), and alarm mute with ring back. It also includes a resettable 1-point Min/Max History and uses 2 probes, one in air and one in a sample bottle.

Temp Controller tab
What are the electrical requirements?

The unit runs on 115V, 60 Hz, 3 Amps, 1/5 HP, and it requires two (2) electrical outlets.

Specifications tab
What refrigerant does it use and what's the warranty?

It uses hydrocarbon natural refrigerant (R290). The warranty is two years parts and labor, plus an additional three years compressor parts warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-CP-16

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 16 Cu. Ft. capacity
  • One swing glass door, self-closing, right hinged, not reversible
  • Three adjustable shelves (adjustable in ½” increments)
  • Forced draft air circulation
  • Keyed door lock
  • One GFCI protected duplex electrical outlet
  • Two 2” access ports with spring-loaded, self-closing gasketed metal covers
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • LED interior lights are safety shielded and switch controlled
  • Swivel Casters (3 ½”)
  • Probe access port (3/4”)
  • Advanced hydrocarbon detector
  • White powder-coated steel interior and exterior
  • High density urethane foam cabinet insulation
  • Hydrocarbon, natural refrigerant (R290)
  • ETL Listed
  • Two year parts and labor warranty, plus an additional three compressor parts warrant
  • ENERGY STAR CERTIFIED
  • Exterior dimensions: 26 1/2” W* x 29 3/4” D x 79” H with casters; 75 ½” H without casters. *Width w/access ports closed; 34 1/2” width w/access ports open
  • Cycle defrost
  • 115V, 60 Hz, 3 Amps, 1/5 HP
  • Shipping weight: 283 lbs. Note: This unit requires two (2) outlets
  • Microprocessor Temperature Controller
  • Adjustable operating temperature range: 1°-10°C
  • Digital Temperature Display and Alarm Module
  • Sample simulated digital temperature display; .1° Resolution
  • Adjustable temperature display in Celsius or Fahrenheit
  • Audible and visual high/low temperature alarms
  • Sensor error alarm
  • Power failure alarm
  • Resettable 1-point Min/Max History
  • Remote alarm contacts
  • 2 probes; 1 in air and 1 in sample bottle
  • Alarm validation (audible, visual, and remote alarm)
  • Alarm mute with ring back

Related Products

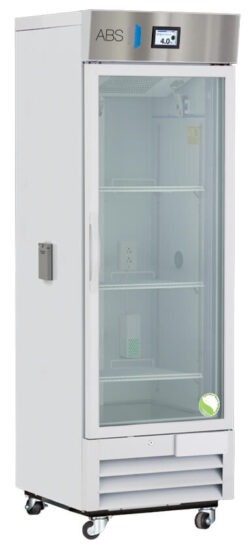

A tall, white medical refrigerator with a glass door, digital temperature display showing 4.0°C, lock on the side, and three interior shelves. The unit stands on four wheels and has ABS branding on the stainless steel top panel.
ABT-HC-CP-16-TS 16 cu. ft. TempLog Premier Glass Door Chromatography Refrigerator
Product Number: ABT-HC-CP-16-TS

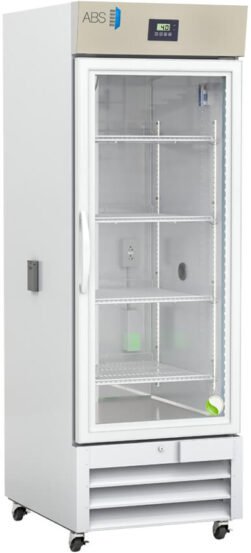

A tall, white medical refrigerator with a transparent glass door, metal handle, and digital temperature display on top. Inside are four wire shelves, a power outlet, and a few small items. The unit has vents and wheels at the base.
