Premier Series
A tall, white medical refrigerator with a transparent glass door, metal handle, and digital temperature display on top. Inside are four wire shelves, a power outlet, and a few small items. The unit has vents and wheels at the base. ABS laboratory refrigerator with open glass door displaying four wire shelves, digital temperature display at 4°C, internal outlet, and vent. White cabinet on casters with louvered base.
A tall, white medical refrigerator with a transparent glass door, metal handle, and digital temperature display on top. Inside are four wire shelves, a power outlet, and a few small items. The unit has vents and wheels at the base.
ABS laboratory refrigerator with open glass door displaying four wire shelves, digital temperature display at 4°C, internal outlet, and vent. White cabinet on casters with louvered base.
ABT-HC-CP-23 Datasheet

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

23 Cu. Ft. Premier Glass Door Chromatography Refrigerator

Product Number: ABT-HC-CP-23
ALSO AVAILABLE IN THESE SIZES16 26 33 36 47 49 69 72 CU. FT.



The Premier Chromatography Refrigerators feature a microprocessor temperature controller and display, allowing for precise temperature control, verification and recovery versus mechanical style thermostats.  One interior duplex electrical outlet and two side wall port holes are provided to simplify the setup and operation of laboratory procedures. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. All Chromatography units require two electrical outlets.

The temperature display and alarm module offers an array of robust security features with a monitoring and alarm system that is 100% independent of a microprocessor temperature controller.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-CP-23

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the operating temperature range on this chromatography fridge?

The adjustable operating temperature range is 1°-10°C.

Temp Controller tab
What are the exterior dimensions and will it fit through a standard doorway?

Exterior dimensions are 28 3/8" W x 34 3/4" D x 81 3/4" H with casters, or 78 1/4" H without casters. Width is 28 3/8" with the access ports closed, but 36 3/8" with the access ports open.

Specifications tab
How many electrical outlets does it need and what are the electrical requirements?

The unit requires two (2) outlets and runs on 115V, 60 Hz, 3 Amps, 1/5 HP.

Specifications tab
What alarms are included on the temperature display module?

It includes audible and visual high/low temperature alarms, a sensor error alarm, a power failure alarm, remote alarm contacts, alarm validation (audible, visual, and remote), and alarm mute with ring back. There are also 2 probes, one in air and one in a sample bottle.

Temp Controller tab
What refrigerant does it use?

It uses hydrocarbon natural refrigerant (R290), which reduces global-warming potential and meets EPA/SNAP mandates along with UL and ASHRAE compliance guidelines.

Summary
What warranty comes with the unit?

It carries a two year parts and labor warranty, plus an additional three year compressor parts warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-CP-23

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 23 Cu. Ft. capacity
  • One swing glass door, self-closing, right hinged, not reversible
  • Four adjustable shelves (adjustable in ½” increments)
  • Forced draft air circulation
  • Keyed door lock
  • One GFCI protected duplex electrical outlet
  • Two 2” access ports with spring-loaded, self-closing gasketed metal covers
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • LED interior lights are safety shielded and switch controlled
  • Swivel Casters (3 ½”)
  • Probe access port (3/4”)
  • Advanced hydrocarbon detector
  • White powder-coated steel interior and exterior
  • High density urethane foam cabinet insulation
  • Hydrocarbon, natural refrigerant (R290)
  • ETL Listed
  • Two year parts and labor warranty, plus an additional three compressor parts warranty
  • Exterior dimensions: 28 3/8” W* x 34 3/4” D x 81 ¾” H with casters; 78 ¼” H without casters. *Width w/access ports closed; 36 3/8” width w/access ports open
  • Cycle defrost
  • 115V, 60 Hz, 3 Amps, 1/5 HP
  • Shipping weight: 336 lbs. Note: This unit requires two (2) outlets
  • Microprocessor Temperature Controller
  • Adjustable operating temperature range: 1°-10°C
  • Digital Temperature Display and Alarm Module
  • Sample simulated digital temperature display; .1° Resolution
  • Adjustable temperature display in Celsius or Fahrenheit
  • Audible and visual high/low temperature alarms
  • Sensor error alarm
  • Power failure alarm
  • Resettable 1-point Min/Max History
  • Remote alarm contacts
  • 2 probes; 1 in air and 1 in sample bottle
  • Alarm validation (audible, visual, and remote alarm)
  • Alarm mute with ring back

Related Products

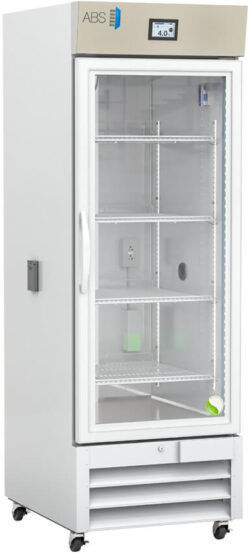

A tall, white laboratory refrigerator with a transparent glass door, digital temperature display showing 4.0°C, and four adjustable interior shelves, some holding bottles. The fridge stands on wheels and has ventilation grilles at the bottom.
ABT-HC-CP-23-TS 23 Cu. Ft. TempLog Premier Glass Door Chromatography Refrigerator
Product Number: ABT-HC-CP-23-TS

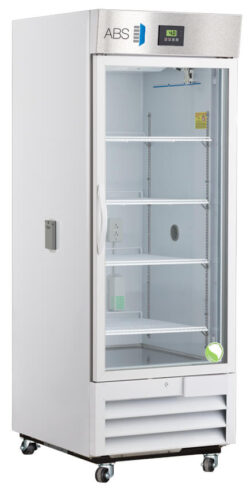

A tall, white commercial refrigerator with a glass door, metal frame, and four adjustable shelves. The digital display and logo ABS are visible on the top front panel. The fridge stands on four wheels and appears empty inside.
ABT-HC-CP-26 26 Cu. Ft. Premier Glass Door Chromatography Refrigerator
Product Number: ABT-HC-CP-26

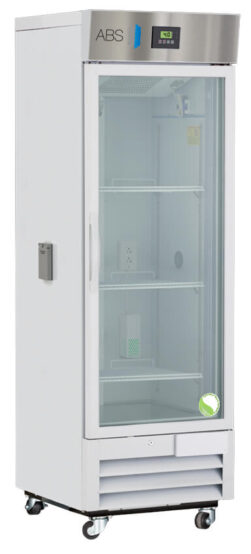

A tall, white laboratory refrigerator with a glass door, three shelves, a digital control panel on top, and ABS branding. The unit stands on four caster wheels, and the lower front has ventilation slats. The interior is empty, except for a small box on the bottom shelf.
