69 Cu. Ft. Premier Sliding Glass Door Chromatography Refrigerator

Product Number: ABT-HC-CP-69
ALSO AVAILABLE IN THESE SIZES16 23 26 33 36 47 49 72 CU. FT.



The Premier Chromatography Refrigerators feature a microprocessor temperature controller and display, allowing for precise temperature control, verification and recovery versus mechanical style thermostats.  One interior duplex electrical outlet and two side wall port holes are provided to simplify the setup and operation of laboratory procedures. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. All Chromatography units require two electrical outlets.

The temperature display and alarm module offers an array of robust security features with a monitoring and alarm system that is 100% independent of a microprocessor temperature controller.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-CP-69

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the temperature range on this chromatography refrigerator?

The adjustable operating temperature range is 1°-10°C, controlled by a microprocessor temperature controller with a digital display and .1° resolution. The display can be set to Celsius or Fahrenheit.

Temp Controller tab
What are the exterior dimensions and how much does it weigh?

Exterior dimensions are 82 1/2" W x 33 1/4" D x 78 1/4" H without casters, or 81 3/4" H with casters. Width is 90 1/2" with the access ports open, and shipping weight is 738 lbs.

Specifications tab
How many outlets do I need to run it, and what are the electrical requirements?

The unit runs on 115V, 60 Hz, 7.5 Amps, 1/2 HP, and it requires two electrical outlets.

Specifications tab
What shelving comes with it?

It includes twelve adjustable shelves, adjustable in 1/2" increments.

Details tab
What alarms does the monitoring system provide?

The Digital Temperature Display and Alarm Module provides audible and visual high/low temperature alarms, a sensor error alarm, a power failure alarm, remote alarm contacts, alarm validation (audible, visual, and remote), and alarm mute with ring back. It also includes a resettable 1-point Min/Max history and uses two probes, one in air and one in a sample bottle.

Temp Controller tab
What refrigerant does it use and what certifications does it carry?

It uses hydrocarbon natural refrigerant R290. The unit is Intertek ETL Listed and Green Leaf Verified.

Certifications
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-CP-69

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 69 Cu. Ft. capacity
  • Three sliding glass doors, self-closing
  • Twelve adjustable shelves (adjustable in ½” increments)
  • Forced draft air circulation
  • Keyed door lock
  • One GFCI protected duplex electrical outlet
  • Two 2” access ports with spring-loaded, self-closing gasketed metal covers
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • LED interior lights are safety shielded and switch controlled
  • Swivel Casters (3 ½”)
  • Probe access port (3/4”)
  • Advanced hydrocarbon detector
  • White powder-coated steel interior and exterior
  • High density urethane foam cabinet insulation
  • Hydrocarbon, natural refrigerant (R290)
  • ETL Listed
  • Two year parts and labor warranty, plus an additional three compressor parts warranty
  • Exterior dimensions: 82 1/2” W* x 33 1/4” D x 78 ¼” H without casters; 81 ¾” H with casters. *Width w/access ports closed; 90 1/2” width w/access ports open
  • Cycle defrost
  • 115V, 60 Hz, 7.5 Amps, 1/2 HP
  • Shipping weight: 738 lbs. Note: This unit requires two (2) outlets
  • Microprocessor Temperature Controller
  • Adjustable operating temperature range: 1°-10°C
  • Digital Temperature Display and Alarm Module
  • Sample simulated digital temperature display; .1° Resolution
  • Adjustable temperature display in Celsius or Fahrenheit
  • Audible and visual high/low temperature alarms
  • Sensor error alarm
  • Power failure alarm
  • Resettable 1-point Min/Max History
  • Remote alarm contacts
  • 2 probes; 1 in air and 1 in sample bottle
  • Alarm validation (audible, visual, and remote alarm)
  • Alarm mute with ring back

Related Products

A large, commercial glass-door refrigerator with three sliding doors, stainless steel trim on top, shelves inside, digital temperature display reading 4.0°C, and a few items on the shelves. The unit is white with ventilation at the bottom.
ABT-HC-CP-69-TS 69 Cu. Ft. TempLog Premier Sliding Glass Door Chromatography Refrigerator
Product Number: ABT-HC-CP-69-TS
A large, white, three-door laboratory refrigerator with glass doors and metal shelves. The digital temperature display is above the center door. Shelves inside are empty, and interior LED lights illuminate the unit. Vents are located along the bottom front.
ABT-HC-CP-72 72 Cu. Ft. Premier Glass Door Chromatography Refrigerator
Product Number: ABT-HC-CP-72

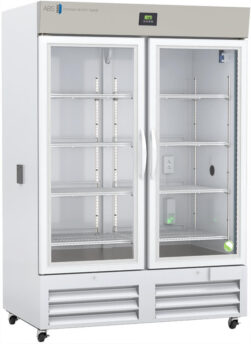

A large, upright, white laboratory refrigerator with two glass doors, metal handles, and multiple adjustable wire shelves inside. A digital temperature display is on the top panel; the bottom front features ventilation grilles. The interior appears empty.
