23 Cu. Ft. Standard Glass Door Chromatography Refrigerator

Product Number: ABT-HC-CS-23
ALSO AVAILABLE IN THESE SIZES16 26 33 36 47 49 69 72 CU. FT.



Replaces Part #: ABT-CS-23

The Standard Chromatography Refrigerators feature a microprocessor temperature controller and display, allowing for precise temperature control, verification and recovery versus mechanical style thermostats.

One interior duplex electrical outlet and one side all port hole is provided to simplify the setup and operation of laboratory procedures.  An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings.

All Chromatography units require two electrical outlets.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines



Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-CS-23

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this chromatography refrigerator?

The adjustable operating temperature is 1°C to 10°C, set through the microprocessor temperature controller with digital display.

Temp Controller tab
How many electrical outlets does this unit need and what are the electrical requirements?

This unit requires two (2) outlets. Electrical specs are 115V, 60 Hz, 3 Amps, 1/5 HP, with 4932 BTU/HR.

Specifications tab
What are the exterior dimensions and shipping weight?

Width is 27 5/8" with the access port closed and 31 1/2" with the port open, depth is 34 3/4", and height is 81 3/4" with casters or 78 1/4" without. Shipping weight is 336 lbs.

Specifications tab
What alarms and probes are included for monitoring?

It has audible and visual high and low temperature alarms, two probes (one in air and one in a sample bottle), and remote alarm contacts.

Temp Controller tab
What refrigerant does it use and how is it defrosted?

It uses hydrocarbon natural refrigerant (R290) and runs on a cycle defrost system.

Details tab
What warranty and certifications come with this refrigerator?

It carries a one year parts and labor warranty, plus an additional four year compressor parts warranty. It is ENERGY STAR Certified, Intertek ETL Listed, and Green Leaf Verified.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-CS-23

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 23 Cu. Ft. Capacity
  • Four adjustable shelves (adjustable in ½” increments)
  • Forced draft air circulation
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • Swivel casters (3 ½”)
  • LED interior lights are safety shielded and switch controlled
  • Hydrocarbon, natural refrigerant (R290)
  • One year parts and labor warranty, plus an additional four year compressor parts warranty
  • Exterior dimensionsWidth: 27 5/8” with access port closed; 31 ½”  width with access port openDepth: 34 ¾”Height: 81 ¾” with casters; 78 ¼”  without casters
  • Cycle defrost
  • 115V, 60 Hz, 3 Amps, 1/5 HP, BTU/HR 4932
  • ETL Listed
  • Shipping weight: 336 lbs.
  • Note: This unit requires two (2) outlets.
  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • 2 probes; 1 in air and 1 in sample bottle
  • Remote alarm contacts
  • Adjustable operating temperature: 1°C to 10°C

Related Products

A tall, white medical refrigerator with a transparent glass door, metal handle, and digital temperature display on top. Inside are four wire shelves, a power outlet, and a few small items. The unit has vents and wheels at the base.
ABT-HC-CP-23 23 Cu. Ft. Premier Glass Door Chromatography Refrigerator
Product Number: ABT-HC-CP-23

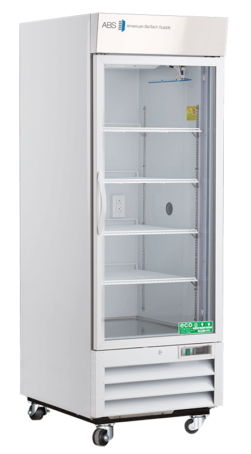

A tall, white laboratory refrigerator with a glass front door, labeled “American BioTech Supply.” It has four adjustable shelves, wheels for mobility, and a vent at the bottom. The interior is empty, and green eco-friendly labels are visible on the lower door.
ABT-HC-CS-26 26 Cu. Ft. Standard Glass Door Chromatography Refrigerator
Product Number: ABT-HC-CS-26

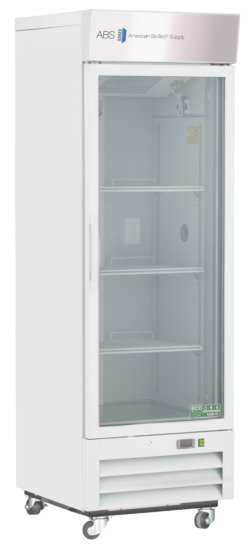

A tall, white laboratory refrigerator with a glass door, labeled ABS American BioTech Supply at the top. The fridge has three empty wire shelves, interior lighting, and sits on four caster wheels. Temperature controls and vents are at the bottom front.
