69 Cu. Ft. Standard Glass Door Chromatography Refrigerator

Product Number: ABT-HC-CS-69
ALSO AVAILABLE IN THESE SIZES16 23 26 33 36 47 49 72 CU. FT.



Replaces Part #: ABT-CS-69

The Standard Chromatography Refrigerators feature a microprocessor temperature controller and display, allowing for precise temperature control, verification and recovery versus mechanical style thermostats.

One interior duplex electrical outlet and one side all port hole is provided to simplify the setup and operation of laboratory procedures.  An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings.

All Chromatography units require two electrical outlets.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines



Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-CS-69

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the temperature range on this unit?

The adjustable operating temperature is 1°C to 10°C, controlled by a microprocessor temperature controller with a digital display.

Temp Controller tab
How many shelves does it come with and are they adjustable?

It comes with twelve adjustable shelves, adjustable in ½" increments.

Details tab
What are the exterior dimensions and shipping weight?

Width is 81 ¾" with the access port closed or 85 ¾" with it open, depth is 33 ¼", and height is 81 ¾" with casters or 78 ¼" without. Shipping weight is 738 lbs.

Specifications tab
What are the electrical requirements?

115V, 60 Hz, 7.5 Amps, 1/2 HP. The unit requires two (2) outlets.

Specifications tab
What refrigerant does it use?

It uses hydrocarbon, natural refrigerant (R290), which reduces global-warming potential while meeting EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Summary
What alarms and temperature probes are included?

It has audible and visual high and low temperature alarms, two probes (one in air and one in a sample bottle), and remote alarm contacts.

Temp Controller tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-CS-69

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 69 Cu. Ft. Capacity
  • Twelve adjustable shelves (adjustable in ½” increments)
  • Forced draft air circulation
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Integrated door handles
  • Swivel casters (3 ½”)
  • Interior lights are safety shielded and switch controlled
  • Hydrocarbon, natural refrigerant (R290)
  • One year parts and labor warranty, plus an additional four year compressor parts warranty



  • Exterior dimensionsWidth: 81 ¾” access port closed; 85 ¾” width with access port openDepth: 33 ¼”Height: 81 ¾” with casters; 78 ¼” without casters.
  • Cycle defrost
  • 115V, 60 Hz, 7.5 Amps, 1/2 HP
  • ETL listed
  • Shipping weight: 738 lbs.
  • Note: This unit requires two (2) outlets.
  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • 2 probes; 1 in air and 1 in sample bottle
  • Remote alarm contacts
  • Adjustable operating temperature: 1°C to 10°C

Related Products

A large, commercial white refrigerator with three clear glass sliding doors, empty interior shelves, a digital display above, and a stainless steel upper panel. The unit stands on small wheels and has ventilation grilles at the bottom.
ABT-HC-CP-69 69 Cu. Ft. Premier Sliding Glass Door Chromatography Refrigerator
Product Number: ABT-HC-CP-69
A large, white commercial refrigerator with three clear glass doors, vertical handles, metal trim, and interior shelves. The refrigerator is empty and on wheels, with ventilation grilles at the bottom and a logo on the top left corner.
ABT-HC-CS-72 72 Cu. Ft. Standard Glass Door Chromatography Refrigerator
Product Number: ABT-HC-CS-72

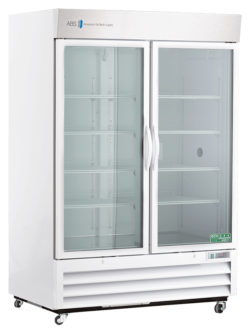

A large, white commercial refrigerator with two clear glass sliding doors, silver handles, and multiple adjustable shelves inside. The unit stands on small wheels and features ventilation grilles at the bottom. The logo ABS is visible on the upper left corner.
