A white upright Standard Flammable Storage Refrigerator with a solid door, vertical left-side handle, and multiple warning labels, including yellow and red signs. Features a vent at the bottom and the American BioTech Supply logo at the top. Upright flammable storage refrigerator, LCD display, door open
A white upright Standard Flammable Storage Refrigerator with a solid door, vertical left-side handle, and multiple warning labels, including yellow and red signs. Features a vent at the bottom and the American BioTech Supply logo at the top.
Upright flammable storage refrigerator, LCD display, door open
ABT-HC-FRS-30 DataSheet

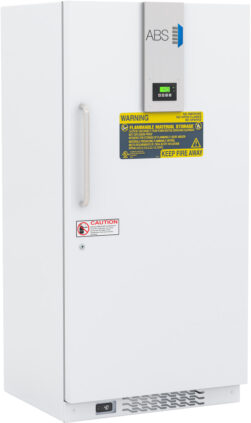

30 cu. ft. Capacity Standard Flammable Storage Refrigerator with Natural Refrigerants

Product Number: ABT-HC-FRS-30

This 30 cu. ft. flammable storage refrigerator offers a secure solution for storing volatile materials in laboratory and industrial settings. Utilizing EPA SNAP compliant hydrocarbon refrigerants, this unit minimizes environmental impact while maximizing energy efficiency. This refrigerator provides precise temperature control through microprocessor technology. Enjoy tight temperature uniformity with an operation range of 2°C to 10°C. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. Adjustable interior shelving allows for versatile organization. Keep your samples protected with audible and visual high/low-temperature alarms and a door ajar alarm with remote contacts. With its low energy consumption and enhanced safety features, the ABT-HC-FRS-30 delivers reliable operation for the safe storage of flammable substances.

Product Inquiry
Description
Storage capacity (cu. ft) 30 Cu. Ft.
Door One solid swing, right hinged; stainless steel door handle; magnetic door gasket
Shelves Five adjustable
Drawers Non-applicable
Mounting and Installation Leveling Legs
Interior lighting Non-applicable
Airflow Management Forced draft circulation
External probe access 3/4″ probe access port on rear wall
Insulation EPA compliant high density urethane foam
Exterior materials Powder coated steel
Access control Keyed Door Lock
General warranty Two (2) year parts and labor warranty
Compressor warranty Five (5) year compressor parts warranty
Product Weight (lbs) 330
Shipping Weight (lbs) 360
Rated Amperage 3.1 Amps
Power Plug/Power Cord NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120
standard, in compliance with the requirements for Flammable Materials Storage Refrigerators as defined by NFPA 99 and 45
Uniformity (Cabinet air) +/- 1.6°C
Stability (Cabinet air) +/- 1.0°C
Maximum temperature variation 3.6 °C Total
(Cabinet air)
Energy Consumption (KWh/day) < 1.5 KWh/day
Average Heat Rejection (BTU/hr) 500 BTU/hr
Pull down time to nominal operating temp
<35 min (empty)
Width (in.) 35.75″
Depth (in.) 35.5″
Height (in.) 72.5″
Refrigerant EPA SNAP compliant R600a Isobutane
Controller technology Microprocessor temperature controller with variable frequency compressor control
Battery Backup Optional accessory
External alarm connection Remote alarm contacts
Adjustable Temperature Range 2°C to 10°C
Temperature Setpoint Range Notes Minimum temperature limited to avoid freezing
Alarms Audible and visual high/low-temperature alarms, Door ajar alarm, Remote alarm contacts
Display Probe Product simulator bottle with glass bead media
Disclaimers
Refrigerator requires a minimum 4” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
