Premier Series
A tall, white laboratory freezer with a digital control panel displaying “-86°C.” The unit has a vertical handle, a caution sticker, vents near the base, and sits on four caster wheels. The ABS logo is visible at the top right of the door. A tall, white, upright freezer stands on wheels with its door open, revealing four metal shelves inside. The shelves each have a rectangular cut-out handle. The freezer has a vent at the bottom and a sturdy side handle on the door. A white, upright commercial refrigerator stands on wheels with its door open. Inside, there are four empty wire shelves. The interior is clean and well-lit, and the door has a sturdy handle. Vents and controls are visible at the bottom front.

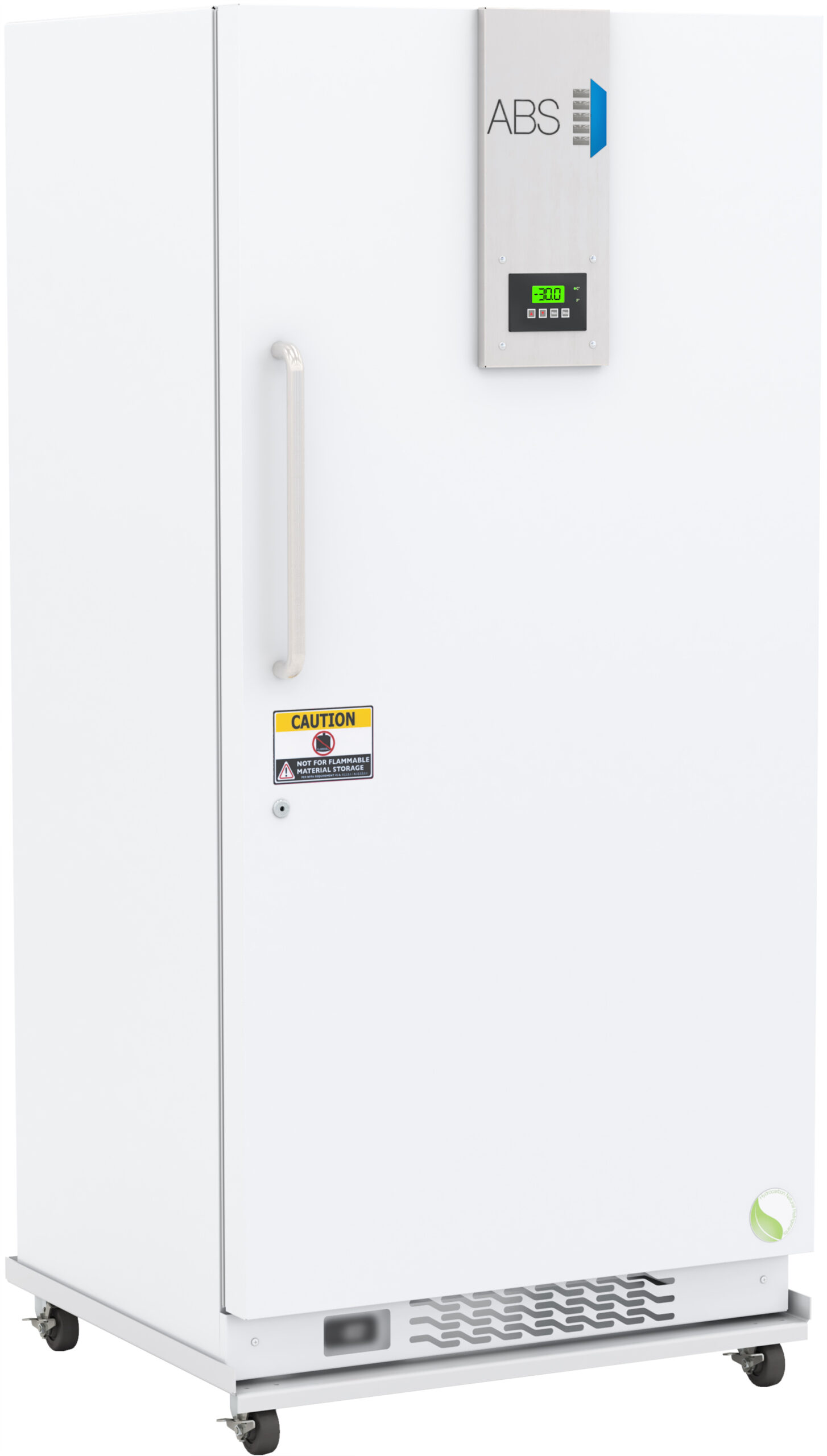

A tall, white laboratory freezer with a digital control panel displaying “-86°C.” The unit has a vertical handle, a caution sticker, vents near the base, and sits on four caster wheels. The ABS logo is visible at the top right of the door.

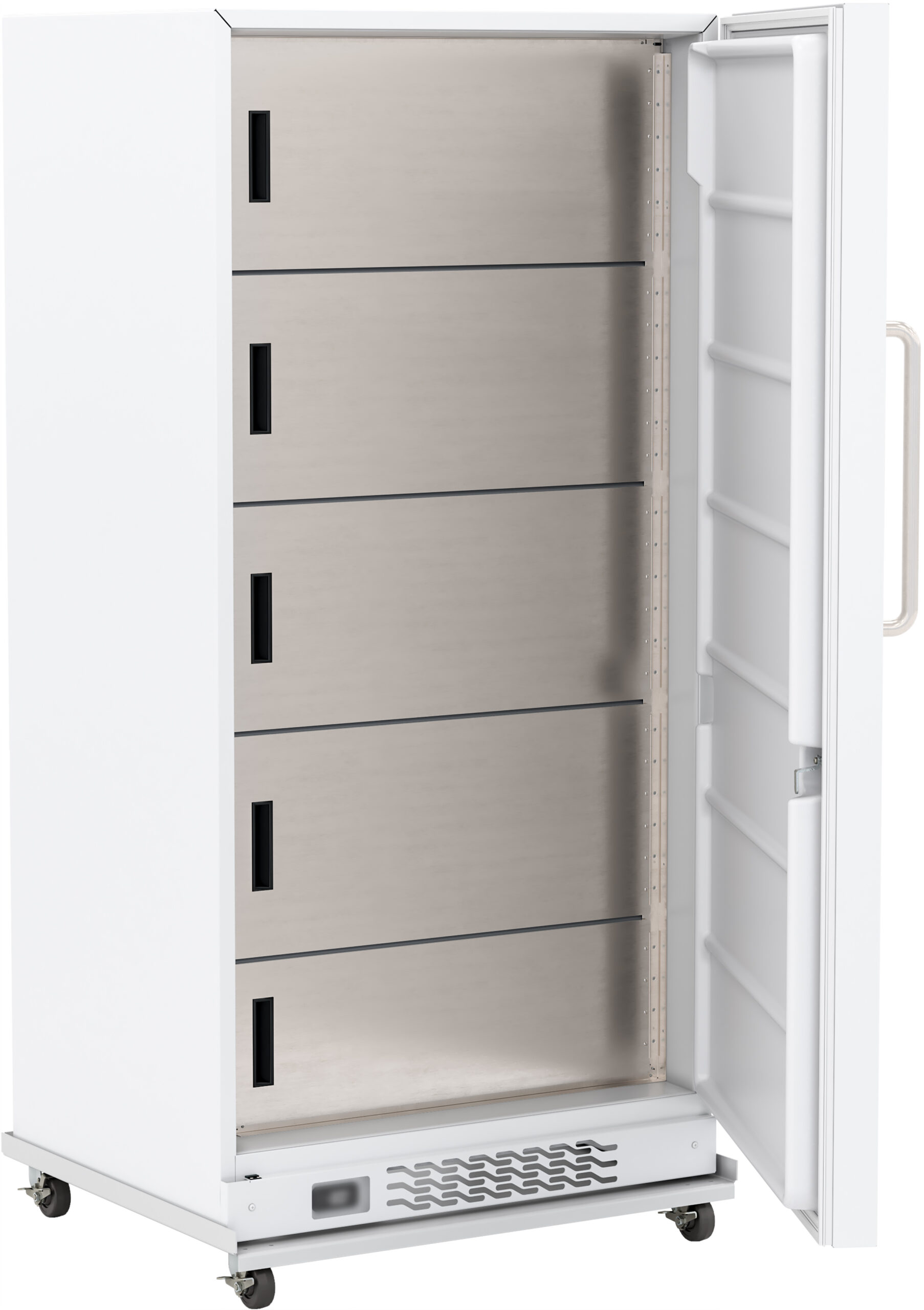

A tall, white, upright freezer stands on wheels with its door open, revealing four metal shelves inside. The shelves each have a rectangular cut-out handle. The freezer has a vent at the bottom and a sturdy side handle on the door.

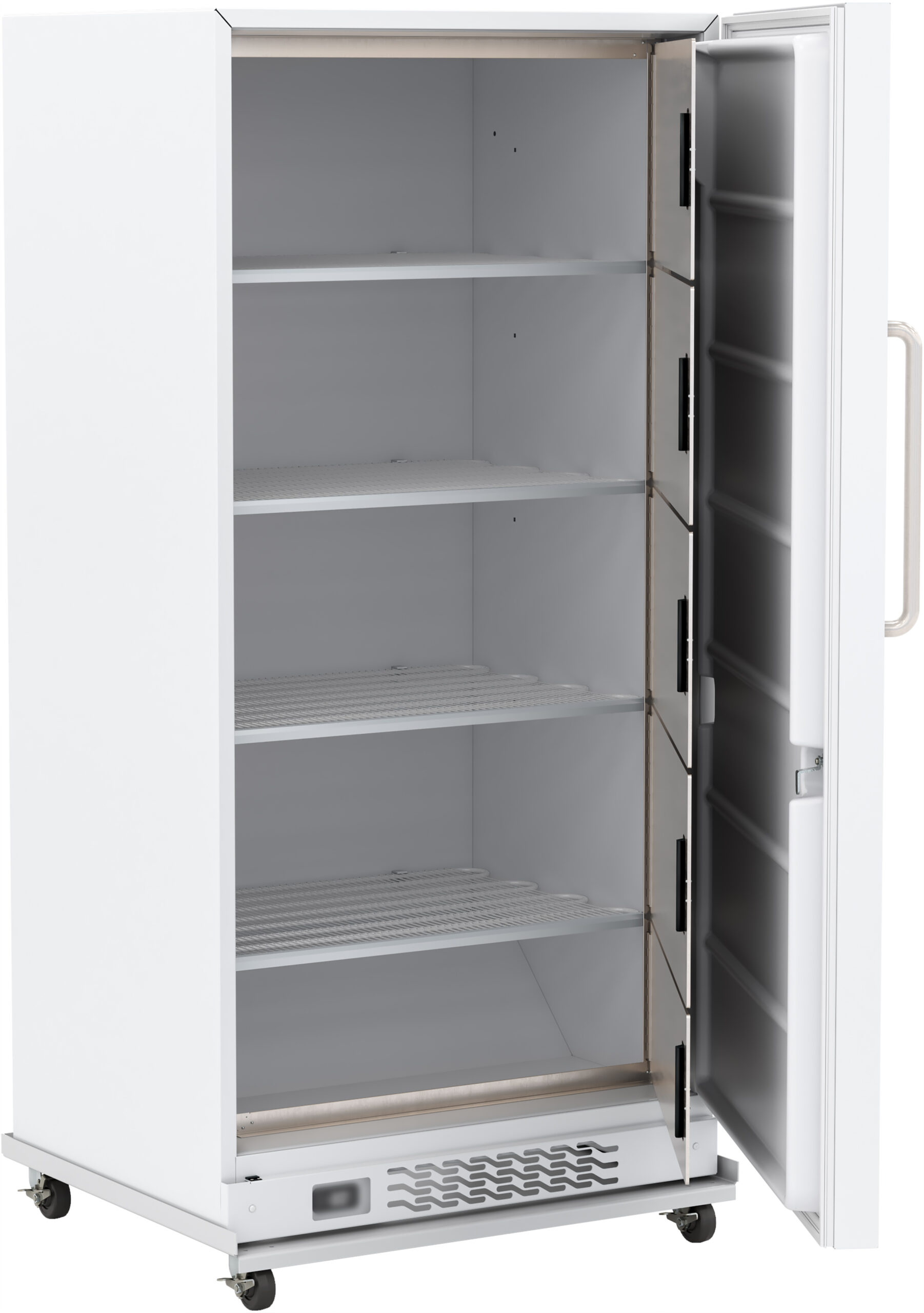

A white, upright commercial refrigerator stands on wheels with its door open. Inside, there are four empty wire shelves. The interior is clean and well-lit, and the door has a sturdy handle. Vents and controls are visible at the bottom front.

30 cu. ft. Premier Manual Defrost Laboratory Freezer -30C

Product Number: ABT-HC-MFP-3030

This premier manual defrost freezer offers 30 cubic feet of versatile storage for laboratory environments. Featuring variable speed compressor technology, this freezer delivers powerful cooling designed to save energy and enhance system performance. Its temperature control is powered by microprocessor technology, protecting samples down to -33°C. Enjoy a robust alarm system to protect your samples, and benefit from natural hydrocarbon refrigerants that meet EPA SNAP standards for environmental safety. With low energy consumption and environmental benefits, this model is an efficient and next-level solution for diverse laboratory applications.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-MFP-3030

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this freezer?

The adjustable temperature range is -27°C to -33°C, controlled by a microprocessor temperature controller with variable frequency compressor control.

Temp Controller tab
How much clearance does the unit need, and what are the room conditions for use?

The equipment requires 4" of clearance around the back and sides for proper ventilation; improper installation will void the warranty and lead to temperature maintenance issues, overheating and possible failure. It is for indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH.

Temp Controller tab
What alarms are included?

It has adjustable alarm volume, audible and visual high and low temperature alarms, sensor error alarm, power failure alarm, door ajar alarm, low battery alarm, alarm validation (audible, visual, and remote alarm), and alarm mute with ring back. Remote alarm contacts are also provided for an external connection.

Temp Controller tab
What are the electrical requirements?

The freezer draws 3.3 Amps and uses a NEMA 5-15P plug on a 6 ft long cord. The facility must provide 110–120V AC, a 15A breaker, and a NEMA 5-15 receptacle.

Description tab
What refrigerant does it use and what is the defrost type?

It uses EPA SNAP compliant R290 propane refrigerant with a hermetic, variable speed compressor. Defrost is manual, and defrosting must be performed periodically to prevent severe ice build-up.

Performance tab
What warranty coverage comes with this freezer?

The unit carries a two (2) year parts and labor general warranty and a five (5) year compressor parts warranty.

Description tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-MFP-3030

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity (cu. ft)
30 Cu. Ft.
Door
One (1) solid swing, right hinged; stainless steel door handle; magnetic door gasket
Interior
Five (5) inner fast-freeze compartments with doors for temperature maintenance
Shelves
Four (4) fixed evaporator shelves
Mounting and Installation
Caster platform
External probe access
3/4″ probe access port on rear wall
Insulation
EPA compliant high density urethane foam
Exterior materials
Powder coated steel
Access control
Keyed door lock
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Five (5) year compressor parts warranty
Product Weight (lbs)
330
Shipping Weight (lbs)
360
Rated Amperage
3.3 Amps
Power Plug/Power Cord
NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard.
Uniformity (Cabinet air)
+/- 2.5°C
Stability (Cabinet air)
+/- 3.5°C
Maximum temperature variation (Cabinet air)
7.5°C Total
Energy Consumption (kWh/day)
7.7 kWh/day
Average Heat Rejection (BTU/hr)
1100 BTU/hr
Pull down time to nominal operating temp
120 min (empty)
Compressor
Hermetic, variable speed
Refrigerant
EPA SNAP compliant R290 propane
Condenser
Static – exterior walls of cabinet with auxiliary fan
Evaporator
Evaporator shelves
Defrost
Manual defrost
Controller technology
Microprocessor temperature controller with variable frequency compressor control
Battery Backup
Temperature display and alarm only (no active cooling)
Display technology
Digital temperature display, sample simulated digital temperature display; .1° resolution
Adjustable Temperature Range
-27° C to -33° C
External alarm connection
Remote alarm contacts
Alarms
Adjustable alarm volume, audible and visual high and low temperature alarms, sensor error alarm, power failure alarm, door ajar alarm, low battery alarm, alarm validation (audible, visual, and remote alarm), alarm mute with ring back
Display Probe
Product simulator bottle with glass bead media
Disclaimers
Defrosting of the unit will need to be performed periodically to prevent severe ice build-up. Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH Specifications are subject to change. Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure. Performance claims are based on testing at 22°C ambient using unbuffered air temperatures in an empty freezer at steady state operation. Performance may vary with environmental conditions, product load, or door openings.
