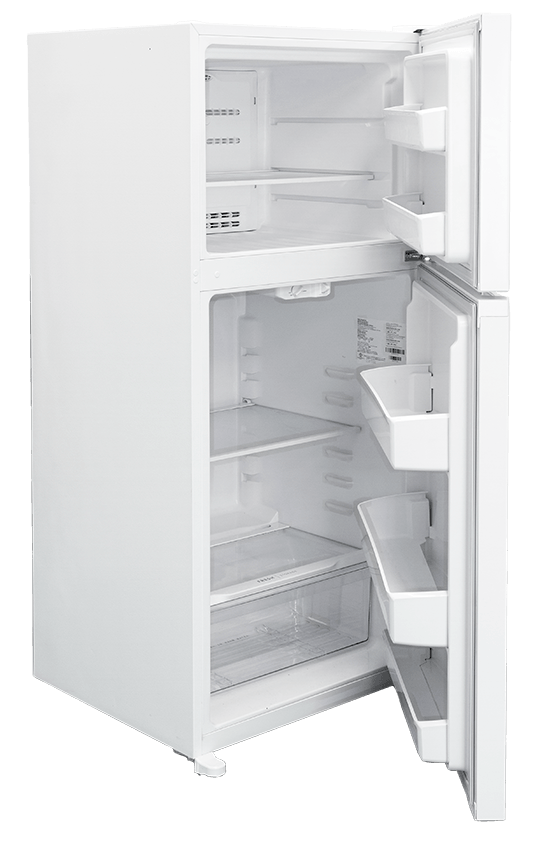

White two-door refrigerator with both doors open, showing empty shelves in the upper freezer compartment and lower refrigerator section with door storage compartments.
ABT-HC-RFC-15A Ext Cutsheet ABT-HC-RFC-15A SpecSheet ABT-HC-RFC-15A Int Cutsheet Manual 21645 - Laboratory Refrigerator or Freezer Series with mech or digital thermostat 3.11.22

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

14 Cu. Ft. General Purpose Refrigerator & Freezer Combination

Product Number: ABT-HC-RFC-15A
ALSO AVAILABLE IN THESE SIZES3 20 CU. FT.

The General Purpose Dual Temperature units meets and exceeds the specifications of most general-purpose units and provides both refrigerator and freezer compartments and are provided with standard analog dial temperature thermostats. Units are intended for general purpose applications only where precise temperature control and maintenance are not essential and there are no requirements for temperature alarms.

Models with auto defrost freezer compartments have programmed defrost cycles that will reach air temperatures of approximately 0 degrees Celsius.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.



Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-HC-RFC-15A

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the temperature range for the refrigerator and freezer sections?

The refrigerator temperature range is 0°C to 10°C, and the freezer chamber runs -15°C to -10°C with two auto defrost cycles warming to 0°C per day.

Temp Controller tab
How is the 14 cu ft capacity split between the fridge and freezer?

The 14 cu. ft. total is split as 10 cu. ft. refrigerator and 4 cu. ft. freezer.

Details tab
What are the exterior dimensions and shipping weight?

Exterior dimensions are 27 3/8″W x 29″D x 60 3/8″H, and the shipping weight is 135 lbs.

Specifications tab
What are the electrical requirements?

The unit runs on 115V, 60 Hz, drawing 1.1 Amps with a 1/10 HP compressor.

Specifications tab
What refrigerant does this unit use?

It uses HFC-free, natural hydrocarbon refrigerant R600a, along with HFC-free foam insulation and packaging.

Details tab
What warranty is included?

It comes with a two year parts and labor warranty, plus an additional three year compressor parts warranty.

Details tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-HC-RFC-15A

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
  • 14 cu. ft. capacity (10 ref./4 freezer)
  • ADA Compliant
  • Two exterior solid swing doors, right hinged, reversible
  • Two adjustable glass shelves (refrigerator) and two-gallon door bins, plus one half gallon door bin
  • 1 full width glass shelf (freezer) and 2 fixed door bins
  • Magnetic door gasket for positive seal
  • Integrated door handles
  • Leveling legs
  • Interior LED refrigerator light
  • Two probe access ports (3/8″); one, refrigerator/one, freezer
  • White textured cabinet and door
  • High density urethane foam cabinet and door insulation
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty



  • Exterior dimensions: 27 3/8″W x 29″D x 60 3/8″H
  • Auto defrost
  • 115V, 60 Hz, 1.1 Amps, 1/10 HP
  • Shipping weight: 135 lbs.
  • Mechanical thermostat
  • Refrigerator temperature range: 0°C to 10°C
  • Freezer chamber: -15°C to -10°C with two auto defrost cycles warming to 0°C per day

Related Products

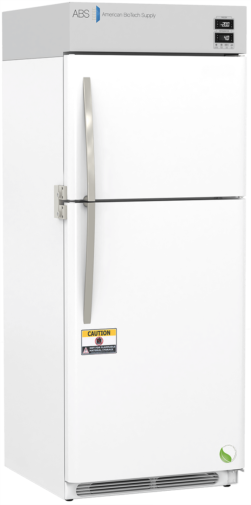

A tall, white, upright laboratory freezer with a digital temperature display on the top right, a vertical silver handle, a caution label on the door, and the American BioTech Supply logo near the top. The freezer stands against a white background.
ABT-HC-RFC-16A 16 Cu. Ft. Refrigerator and Auto Defrost Freezer Combination
Product Number: ABT-HC-RFC-16A
A white, two-door ABS American BioTech Supply refrigerator with a top freezer. A caution sticker is on the lower door. The unit is plain, rectangular, and features a green leaf symbol in the bottom right corner, suggesting energy efficiency.
ABT-HC-RFC20A 20 cu. ft. General Purpose Refrigerator & Freezer Combination
Product Number: ABT-HC-RFC20A

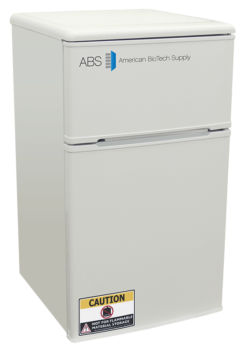

A white General Purpose Refrigerator Freezer Combination with two compartments, labeled “ABS American BioTech Supply.” A yellow caution sign and a notice reading “Not for flammable material storage” are on the lower door.
