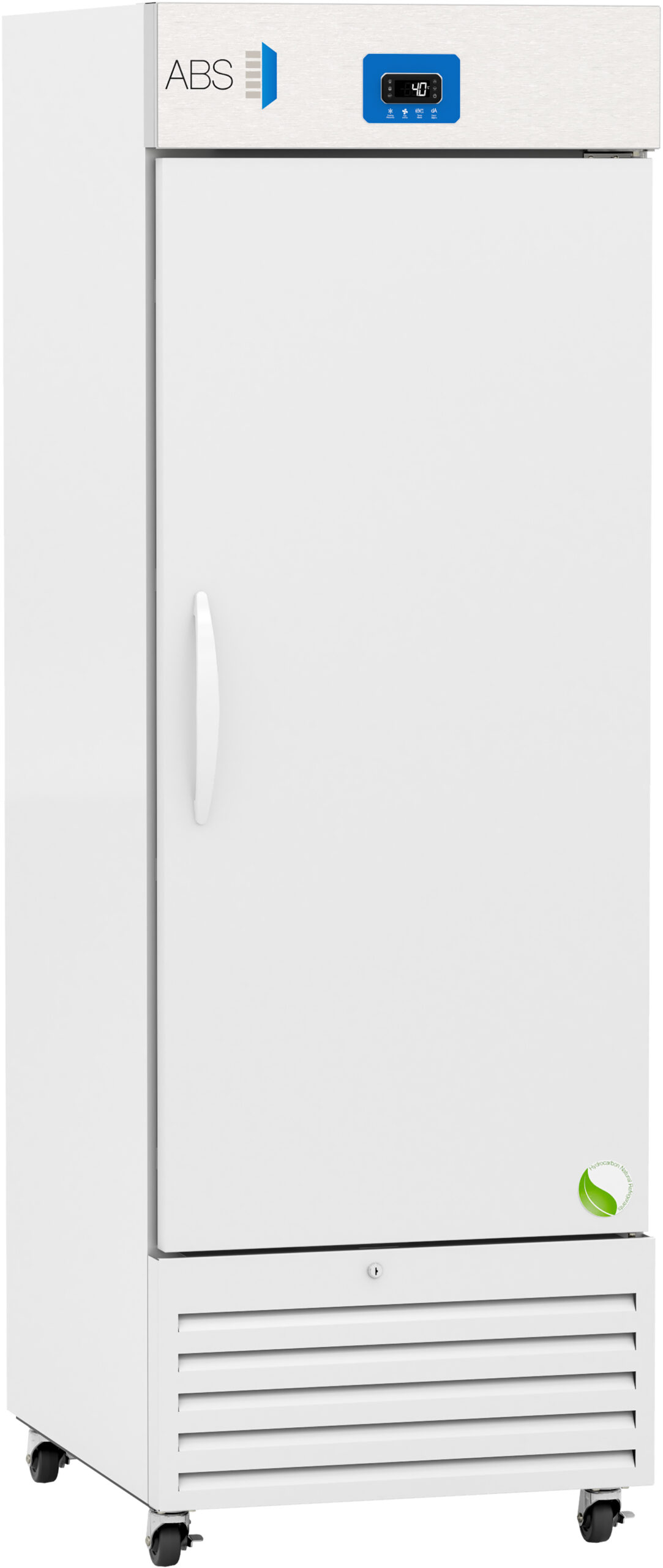

A tall, white commercial refrigerator with a single door, handle on the left, a digital temperature display reading -40°C, vents at the bottom, and wheels. The ABS logo is at the top left; a green leaf symbol appears near the lower right corner.
A tall, white, upright laboratory refrigerator with a glass door, metal handle, five adjustable wire shelves, and a digital temperature display panel at the top shows -40°C. The unit has ventilation grilles at the bottom and is on four wheels.
ABT-VS-23S DataSheet

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

23 Cu. Ft. Premier Solid Door Laboratory Refrigerator with Variable Speed Compressor

Product Number: ABT-VS-23S ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 16 26 36 49 72 CU. FT.
FAST TRACKINVENTORY
Fast Track Inventory — 5–8 business day lead time

These premier laboratory refrigerators are engineered with variable speed technology for exceptional efficiency and performance in clinical and research environments. They feature precise microprocessor temperature control and variable speed compressor technology. Enjoy low energy consumption and natural hydrocarbon refrigerants for cost-savings and energy efficiency. Security and monitoring features include a keyed door lock and comprehensive alarms with remote alarm contacts. The cabinet is built with durable powder-coated steel, a self-closing solid door, safety-shielded LED lighting, and adjustable interior shelving to enhance your workflow. This model delivers optimal temperature stability and includes a 2-year parts and labor warranty with a generous 7-year warranty on the compressor. These premier refrigerators are designed to increase performance and efficiency in your lab.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-VS-23S

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this refrigerator?

The adjustable temperature range is 2° C to 15° C, controlled by a microprocessor temperature controller with variable frequency compressor control, switchable between C° and F° with a resolution of 0.1° C/0.2° F.

Temp Controller tab
What are the electrical requirements?

The unit is rated at 3 Amps and uses a NEMA 5-15 plug. Facility electrical requirement is 110–120V AC, 15A breaker, NEMA 5-15 receptacle.

Description tab
How much clearance does the ABT-VS-23S need for installation?

The refrigerator requires a minimum 2" of clearance around the back and sides for proper ventilation, and more if next to heat-rejecting equipment. Improper installation will void the warranty and lead to temperature maintenance issues, overheating and possible failure.

Temp Controller tab
What alarms are included?

It has audible and visual high/low temperature alarms, remote alarm contacts, a sensor error alarm, a power failure alarm, and a door ajar alarm. A battery backup supports the controller temperature display and alarms only, with no cooling active.

Temp Controller tab
What refrigerant and defrost method does it use?

It uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, with a hermetic variable speed compressor and cycle defrost.

Performance tab
What warranty comes with this refrigerator?

It includes a two (2) year parts and labor warranty and a seven (7) year compressor warranty.

Description tab
What is a Variable Speed Compressor (VSC)?

A variable speed compressor (VSC) self-adjusts to cooling demand instead of running at one fixed speed, giving greater efficiency and more cost savings than a traditional fixed-speed model. On this unit it works alongside the microprocessor temperature controller, which provides the precise temperature control.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-VS-23S

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity (cu. ft)
23 Cu. Ft.
Door
One (1) swing solid door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves
Four (4) adjustable shelves (adjustable in ½” increments)
Mounting and Installation
Swivel casters – locking front casters
External probe access
3/4″ probe access port on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow Management
Forced draft air circulation, patented air flow technology
Exterior materials
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Access control
Keyed door lock; compatible with optional digital lock (Pyxis, Omnicell, and AcuDose RX)
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Seven (7) year compressor warranty
Product Weight (lbs)
284
Shipping Weight (lbs)
327
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 plug
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed. Energy Star Certified
Maximum temperature variation (Cabinet air)
+/- 1.5° C
Stability (Cabinet air)
+/- 0.3° C
Energy Consumption (kWh/day)
<1.2 KWh/day
Average Heat Rejection (BTU/hr)
<320 BTU/h
Pull down time to nominal operating temp
< 35 min (empty)
Noise Pressure Level (dBA)
40 dBA or less installed
Compressor
Hermetic, variable speed
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle Defrost
Performance Notes
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
Controller technology
Microprocessor temperature controller with variable frequency compressor control, C°/F° switchable, resolution is 0.1° C/0.2° F
Battery Backup
For controller temperature display and alarms only, no cooling active
Display technology
Digital temperature display
Adjustable Temperature Range
2° C to 15° C
Digital Communication
Non-applicable
External alarm connection
Remote alarm contacts
Alarms
Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm
Display Probe
Product simulator bottle with glass bead media
Disclaimers
Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure

Related Products

A tall, white, single-door laboratory refrigerator on wheels features a digital display reading 4.0°C at the top, a vertical handle, ventilation grilles at the bottom, and a small green leaf logo near the lower right corner.
ABT-VS-23S-TS 23 Cu. Ft. TempLog Premier Touchscreen Solid Door Laboratory Refrigerator with Variable Speed Compressor
Product Number: ABT-VS-23S-TS

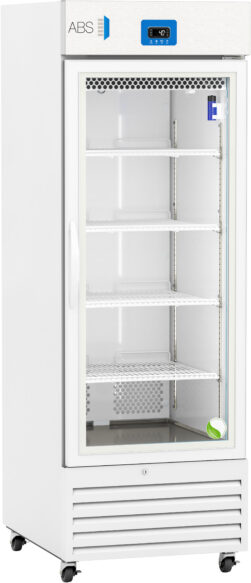

A tall, white, upright refrigerator with a glass door, five adjustable wire shelves, a digital temperature display at the top, ventilation at the bottom, and small wheels for mobility. The interior is empty and clean. The brand ABS is visible on the top left.
ABT-VS-LP-23 23 Cu. Ft. Premier Glass Door Laboratory Refrigerator with Variable Speed Compressor
Product Number: ABT-VS-LP-23
A tall, white, single-door laboratory refrigerator with a digital temperature display at the top, a vertical handle, vented lower panel, and four small caster wheels. The brand ABS is visible on the upper left front panel.
ABT-VS-26S 26 Cu. Ft. Premier Solid Door Laboratory Refrigerator with Variable Speed Compressor
Product Number: ABT-VS-26S

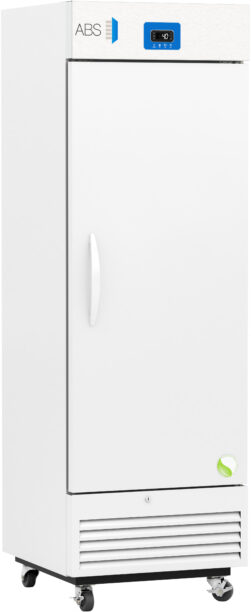

A tall, white laboratory refrigerator with a digital temperature display at the top, a vertical handle on the front door, ventilation grill at the bottom, small wheels for mobility, and the ABS logo near the top left corner.
