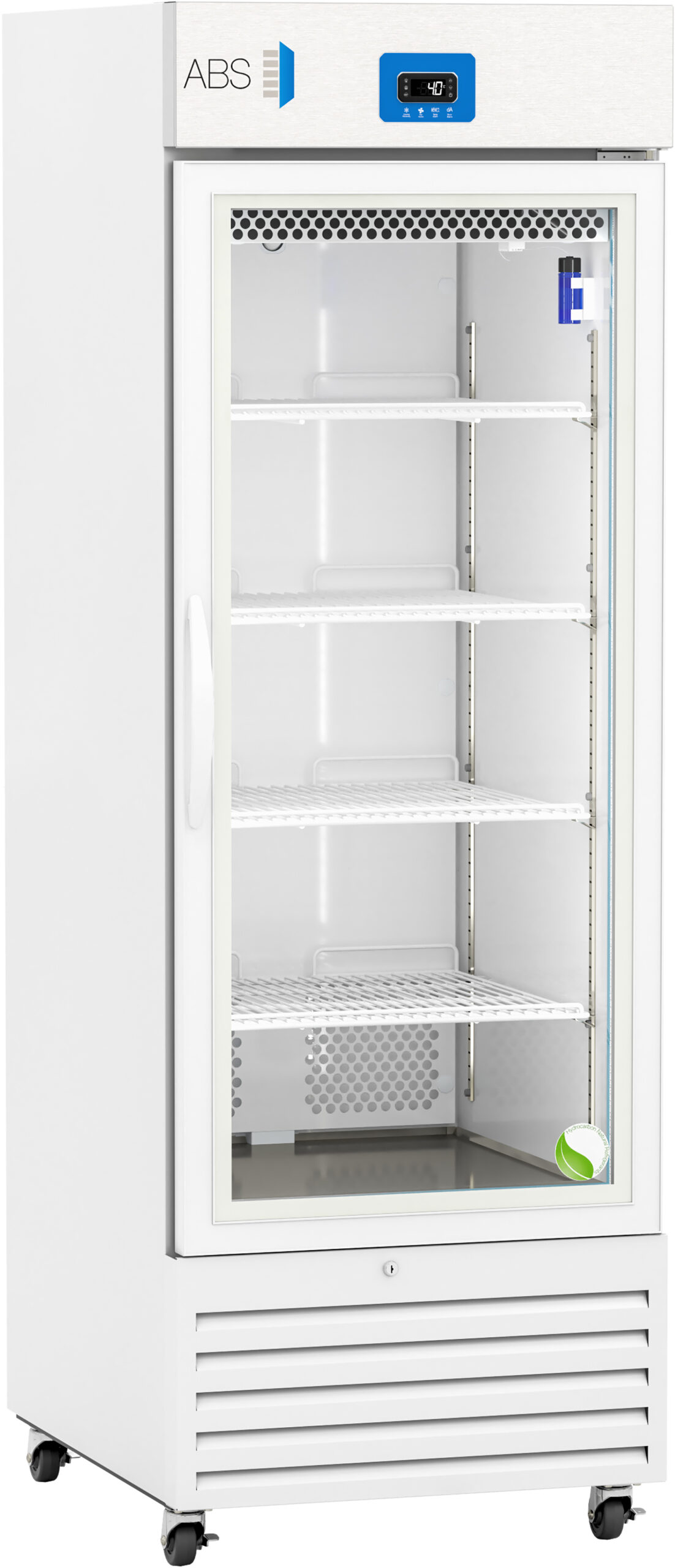

A tall, white, upright refrigerator with a glass door, five adjustable wire shelves, a digital temperature display at the top, ventilation at the bottom, and small wheels for mobility. The interior is empty and clean. The brand ABS is visible on the top left. A tall, white, upright laboratory refrigerator with a glass door, five wire shelves, a digital temperature display showing 4.0°C, and ventilation grilles at the top and bottom. The door is open, revealing the empty shelves inside.
A tall, white, upright refrigerator with a glass door, five adjustable wire shelves, a digital temperature display at the top, ventilation at the bottom, and small wheels for mobility. The interior is empty and clean. The brand ABS is visible on the top left.

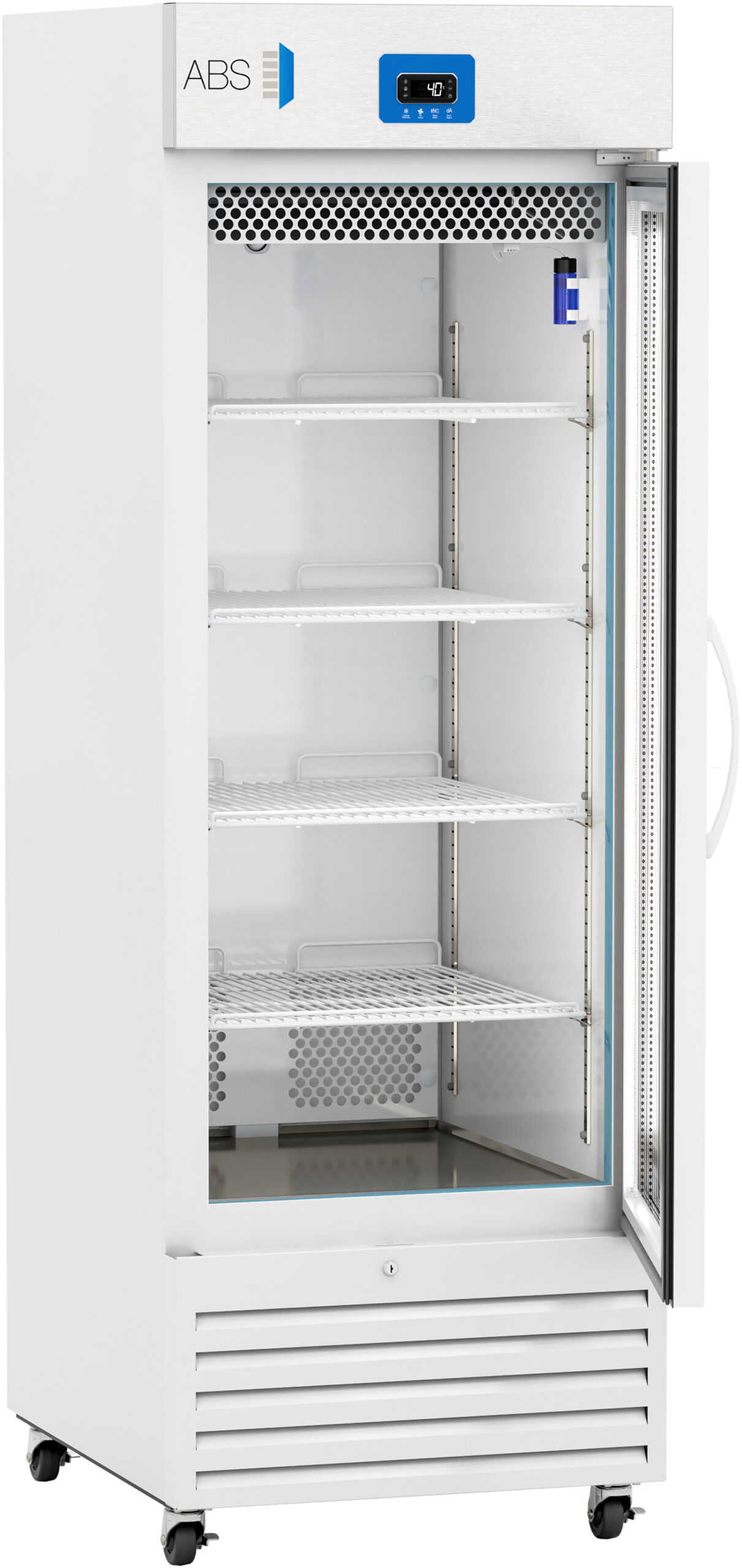

A tall, white, upright laboratory refrigerator with a glass door, five wire shelves, a digital temperature display showing 4.0°C, and ventilation grilles at the top and bottom. The door is open, revealing the empty shelves inside.
ABT-VS-LP-23 DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

23 Cu. Ft. Premier Glass Door Laboratory Refrigerator with Variable Speed Compressor

Product Number: ABT-VS-LP-23 ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 16 26 33 36 47 49 69 72 CU. FT.
FAST TRACKINVENTORY
Fast Track Inventory — 5–8 business day lead time

The ABT-VS-LP-23 delivers exceptional temperature performance through advanced variable speed compressor technology and precise microprocessor control. With maximum temperature variation of just +/- 1.5°C in cabinet air and remarkable stability of +/- 0.3°C using simulator ballast, this 23 cubic foot laboratory refrigerator ensures your critical samples remain within strict parameters. The unit’s patented forced draft air circulation technology and EPA-compliant R600a hydrocarbon refrigerant combine to achieve ultra-low energy consumption of less than 1.2 KWh per day while meeting ENERGY STAR v2.0 standards.

Engineered for demanding clinical and research environments, the ABT-VS-LP-23 features comprehensive monitoring capabilities with audible and visual alarms for temperature excursions, sensor errors, power failures, and door ajar conditions. The digital temperature display offers C°/F° switchable readouts with 0.1°C resolution, while remote alarm contacts enable integration with facility monitoring systems. A keyed door lock provides immediate security, with compatibility for optional digital locks including Pyxis, Omnicell, and AcuDose RX systems.

Built to withstand continuous laboratory use, the ABT-VS-LP-23 combines a durable white powder-coated steel exterior with high-density urethane foam insulation for optimal efficiency. The self-closing glass door with magnetic gasket minimizes temperature fluctuations, while safety-shielded LED interior lighting and four adjustable shelves maximize usability. With swivel casters including locking front units for easy positioning, plus a generous 2-year parts and labor warranty backed by a 7-year compressor warranty, this premier refrigerator delivers long-term reliability for your most valuable specimens.

Key Features

  • Variable speed compressor technology with microprocessor temperature control
  • 23 cubic foot capacity with adjustable temperature range of 2°C to 15°C
  • ENERGY STAR v2.0 compliant with <1.2 KWh/day energy consumption
  • Four adjustable shelves with half-inch increment positioning
  • ETL and C-ETL listed with 7-year compressor warranty

Benefits

  • Achieve +/- 0.3°C stability to protect temperature-sensitive samples and reagents
  • Reduce operating costs with ultra-low energy consumption and natural refrigerant
  • Maintain compliance with comprehensive alarm system and remote monitoring capability
  • Maximize storage flexibility with 23 cu ft capacity and adjustable shelving
  • Ensure long-term reliability with 7-year compressor warranty coverage
  • Integrate seamlessly with existing security systems via digital lock compatibility

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-VS-LP-23

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on the ABT-VS-LP-23?

The adjustable temperature range is 2°C to 15°C, controlled by a microprocessor temperature controller with variable frequency compressor control. The display is C°/F° switchable with a resolution of 0.1°C/0.2°F.

Temp Controller tab
How tight is the temperature control inside the cabinet?

Maximum temperature variation in cabinet air is +/- 1.5°C, and stability using the simulator ballast is +/- 0.3°C. These values are based on an empty chamber at steady state with no door openings; loading, door openings, and ambient conditions will affect performance.

Performance tab
What clearance does the unit need for installation?

The refrigerator requires a minimum 2" of clearance around the back and sides for proper ventilation, and more if it is next to heat-rejecting equipment. Improper installation will void the warranty and can lead to temperature maintenance issues, overheating, and possible failure.

Temp Controller tab
What alarms are included and can they tie into our building monitoring?

The unit has audible and visual high/low temperature alarms, a sensor error alarm, a power failure alarm, and a door ajar alarm. Remote alarm contacts are provided for external alarm connection, and a battery backup supports the controller temperature display and alarms only (no cooling).

Temp Controller tab
What are the electrical requirements and amp draw?

Rated amperage is 3 Amps, and the unit uses a NEMA 5-15 plug. The facility must provide 110–120V AC, a 15A breaker, and a NEMA 5-15 receptacle.

Description tab
What refrigerant and defrost method does it use, and what is the warranty?

It uses EPA SNAP compliant R600a Isobutane (hydrocarbon natural refrigerant) with cycle defrost and a hermetic variable speed compressor. The warranty is 2 years parts and labor with a 7-year compressor warranty.

Performance tab
What is a Variable Speed Compressor (VSC)?

A variable speed compressor (VSC) self-adjusts to cooling demand instead of running at one fixed speed, giving greater efficiency and more cost savings than a traditional fixed-speed model. On this unit it works alongside the microprocessor temperature controller, which provides the precise temperature control.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-VS-LP-23

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity (cu. ft)
23 Cu. Ft.
Door
One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves
Four (4) adjustable shelves (adjustable in ½” increments)
Mounting and Installation
Swivel casters – locking front casters
External probe access
3/4″ probe access port on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow Management
Forced draft air circulation, patented air flow technology
Exterior materials
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Access control
Keyed door lock; compatible with optional digital lock (Pyxis, Omnicell, and AcuDose RX)
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Seven (7) year compressor warranty
Product Weight (lbs)
274
Shipping Weight (lbs)
327
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 plug
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed, Energy Star Certified
Maximum temperature variation (Cabinet air)
+/- 1.5° C
Stability (Simulator ballast)
+/- 0.3° C
Energy Consumption (kWh/day)
<1.2 KWh/day  *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
Average Heat Rejection (BTU/hr)
<320 BTU/h
Pull down time to nominal operating temp
< 35 min (empty)
Noise Pressure Level (dBA)
40 dBA or less installed
Compressor
Hermetic, variable speed
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle Defrost
Performance Notes
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
Controller technology
Microprocessor temperature controller with variable frequency compressor control, C°/F° switchable, resolution is 0.1° C/0.2° F
Battery Backup
For controller temperature display and alarms only, no cooling active
Display technology
Digital temperature display
Adjustable Temperature Range
2° C to 15° C
Digital Communication
Non-applicable
External alarm connection
Remote alarm contacts
Alarms
Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm
Display Probe
Product simulator bottle with glass bead media
Disclaimers
Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
