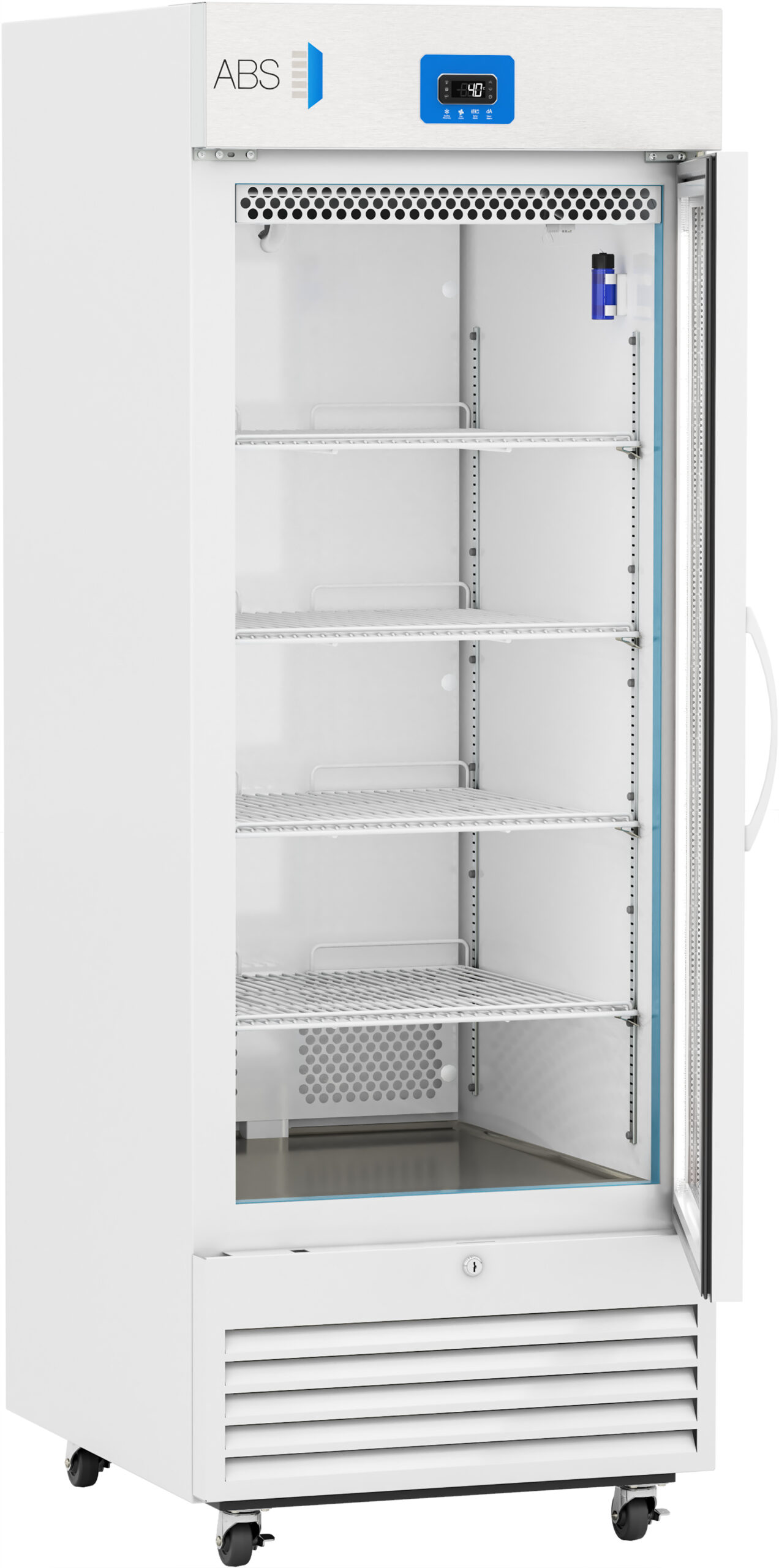

A tall, white laboratory refrigerator with a glass door is open, revealing five adjustable wire shelves inside. The digital temperature display above the door shows 4.0°C. The unit stands on wheels, and the interior appears clean and empty.
ABT-VS-LP-26 DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

26 Cu. Ft. Premier Glass Door Laboratory Refrigerator with Variable Speed Compressor

Product Number: ABT-VS-LP-26
ALSO AVAILABLE IN THESE SIZES12 16 23 33 36 47 49 69 72 CU. FT.
FAST TRACKINVENTORY
Fast Track Inventory — 5–8 business day lead time

These premier laboratory refrigerators are engineered with variable speed technology for exceptional efficiency and performance in clinical and research environments. They feature precise microprocessor temperature control and variable speed compressor technology. Enjoy low energy consumption and natural hydrocarbon refrigerants for cost-savings and energy efficiency. Security and monitoring features include a keyed door lock and comprehensive alarms with remote alarm contacts. The cabinet is built with durable powder-coated steel, a self-closing glass door, safety-shielded LED lighting, and adjustable interior shelving to enhance your workflow. This model delivers optimal temperature stability and includes a 2-year parts and labor warranty with a generous 7-year warranty on the compressor. These premier refrigerators are designed to increase performance and efficiency in your lab.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-VS-LP-26

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this refrigerator?

The adjustable temperature range is 2° C to 15° C, with a microprocessor controller that is C°/F° switchable and has a resolution of 0.1° C/0.2° F.

Temp Controller tab
What are the exterior dimensions and weight?

The exterior is 28.5″ wide, 36.5″ deep, and 81.75″ tall. Product weight is 292 lbs and shipping weight is 345 lbs.

Details tab
How much clearance does it need for ventilation?

The refrigerator requires a minimum 2” of clearance at the back and sides of the unit for proper ventilation.

Temp Controller tab
What electrical service does it require?

It requires 110 – 120V AC with a 15A breaker and a NEMA 5-15 receptacle. The unit is rated at 3 Amps and ships with a NEMA 5-15 plug.

Details tab
What alarms are included and can they be monitored remotely?

The unit includes audible and visual high/low temperature alarms, a sensor error alarm, power failure alarm, and door ajar alarm, plus remote alarm contacts for external monitoring. A battery backup keeps the controller temperature display and alarms active, but no cooling is active during a power failure.

Temp Controller tab
What refrigerant is used and what type of defrost does it have?

It uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant, with a hermetic variable speed compressor and cycle defrost.

Performance tab
What is a Variable Speed Compressor (VSC)?

A variable speed compressor (VSC) self-adjusts to cooling demand instead of running at one fixed speed, giving greater efficiency and more cost savings than a traditional fixed-speed model. On this unit it works alongside the microprocessor temperature controller, which provides the precise temperature control.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-VS-LP-26

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity
26 Cu. Ft.
Door
One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves
Four (4) adjustable shelves (adjustable in ½” increments)
Drawers
Non-applicable
Mounting and Installation
Swivel casters – locking front casters
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow Management
Forced draft air circulation – Patented air flow technology
External probe access
Probe access port (3/4″) on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials
White powder coated steel
Access control
Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Seven (7) year compressor warranty
Product Weight (lbs)
292
Shipping Weight (lbs)
345
Exterior Width (in)
28.5″
Exterior Depth (in)
36.5″
Exterior Height (in)
81.75″
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 plug
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed, Energy Star Certified
Compressor
Hermetic, Variable speed
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle defrost
Controller technology
Microprocessor temperature controller with variable frequency compressor control, C°/F° switchable, resolution is 0.1° C/0.2° F
Noise pressure level      (dBA)
40 dBA or less installed
Display technology
 Digital Temperature Display
Stability – simulator       ballast (°C)
+/- 0.3° C
Average heat rejection (BTU/h)
< 320 BTU/h
Max temp variation –   cabinet air (°C)
+/- 1.5° C
Adjustable Temperature Range
2° C to 15° C
External alarm       connection
Remote alarm contacts
Digital            Communication
Non-applicable
Battery Backup
For controller temperature display and alarms only, no cooling active
Energy consumption (KWh/day)
<1.2 KWh/day *meets Energy Star v2.0 for Laboratory Refrigerators
Display probe
Product simulator bottle with glass bead media
Pull down time to       nominal operating temp
< 35 min (empty)
Alarms
Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm
Disclaimer(s):
Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance Note
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings

Related Products

A tall, white laboratory refrigerator with a transparent glass door, five empty wire shelves, a digital display showing 4.0°C, and wheel casters at the bottom for mobility. The ABS logo appears at the top left of the unit.
ABT-VS-LP-26-TS 26 Cu. Ft. TempLog Premier Touchscreen Glass Door Laboratory Refrigerator with Variable Speed Compressor
Product Number: ABT-VS-LP-26-TS
A tall, white, single-door laboratory refrigerator with a digital temperature display at the top, a vertical handle, vented lower panel, and four small caster wheels. The brand ABS is visible on the upper left front panel.
ABT-VS-26S 26 Cu. Ft. Premier Solid Door Laboratory Refrigerator with Variable Speed Compressor
Product Number: ABT-VS-26S

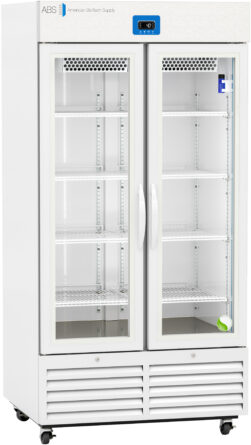

A white, upright laboratory refrigerator with double glass doors, visible interior shelves, digital temperature display on top, and ventilation grilles at the bottom. The brand American BioTech Supply is labeled on the upper left.
