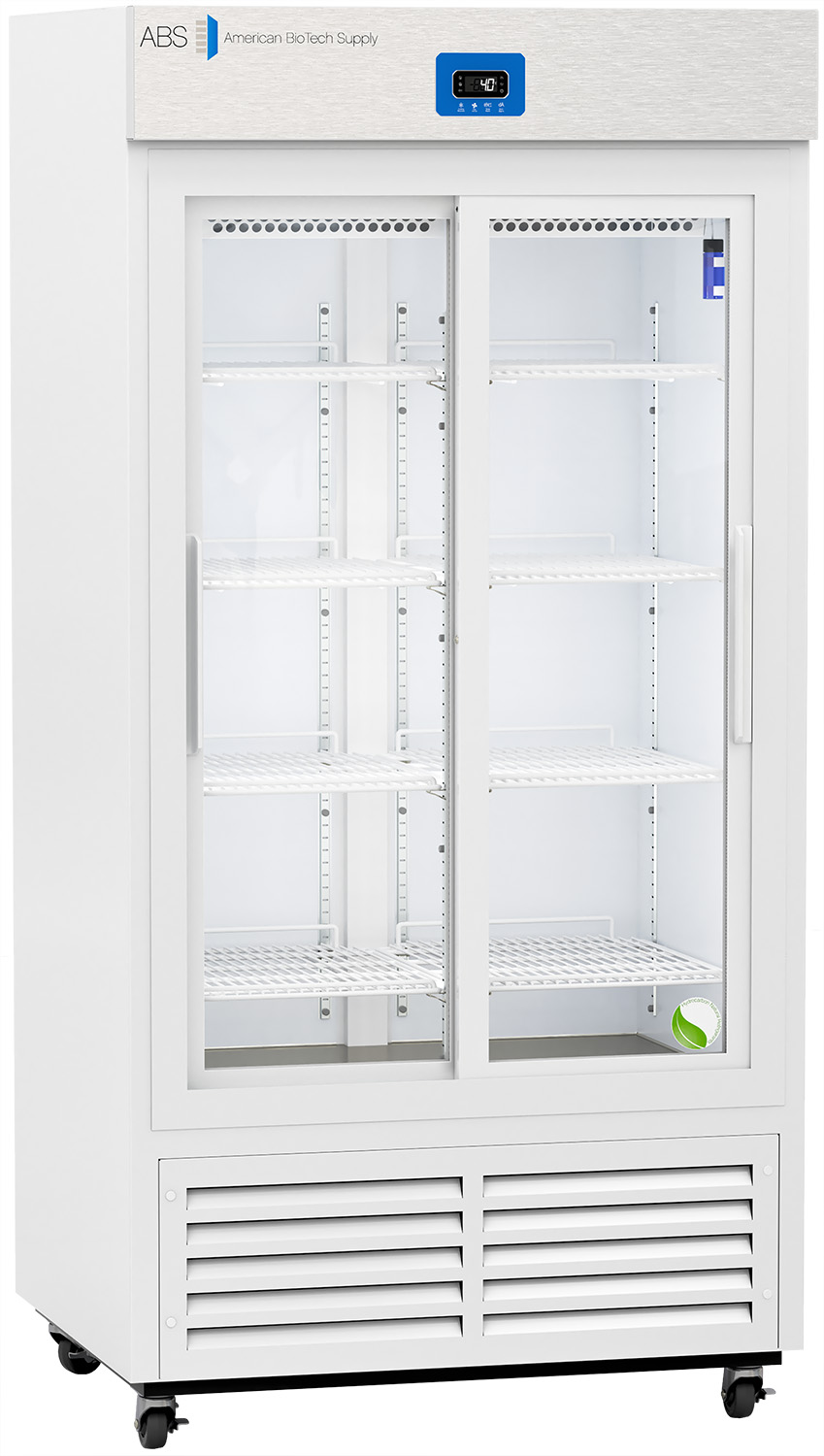

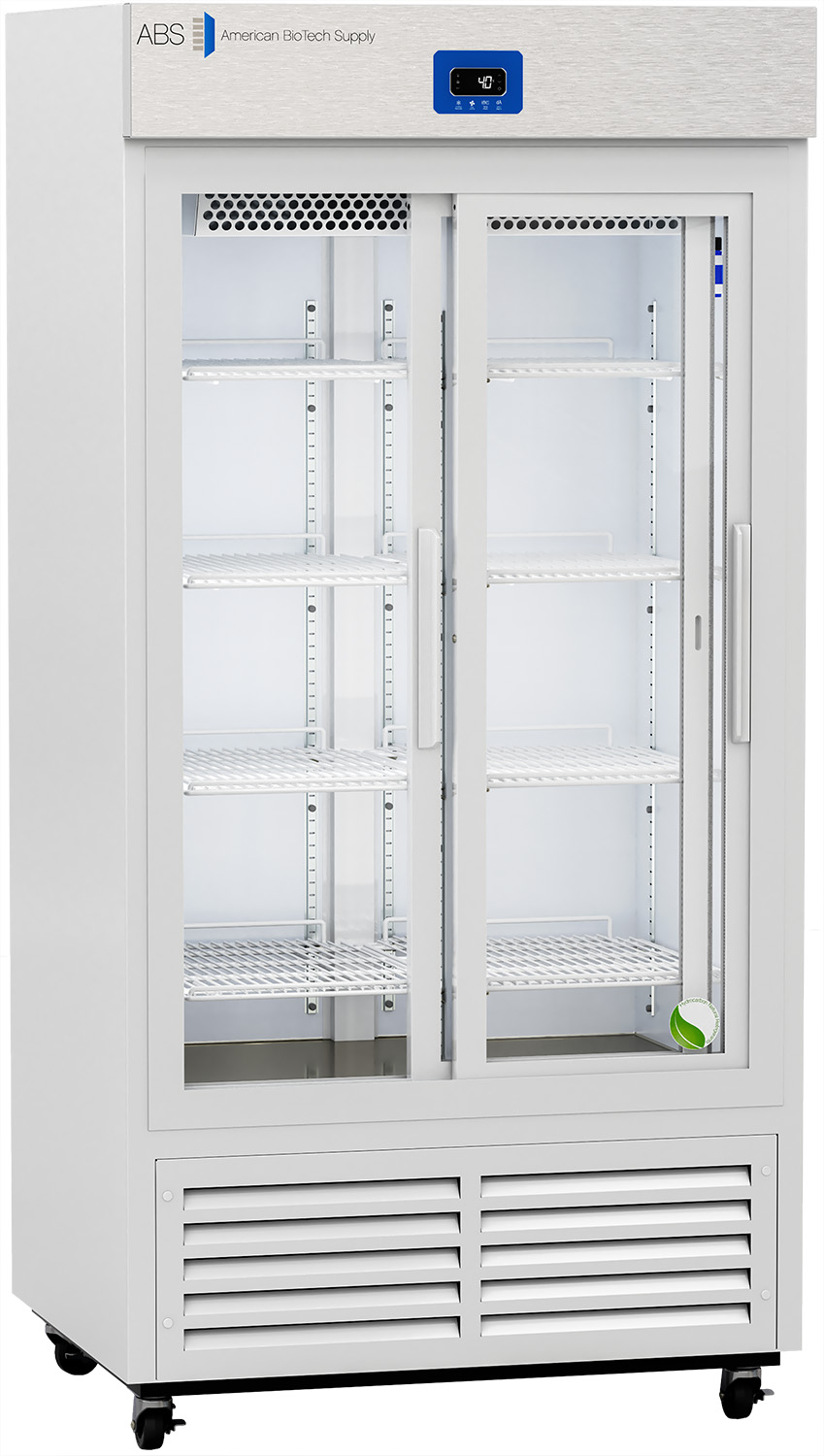

A tall, white, double-door laboratory refrigerator with glass sliding doors, empty white shelves, a digital temperature display at the top, ventilation grilles at the bottom, and mounted on four black wheels. The ABS logo is visible on the upper left. A white, upright laboratory refrigerator with glass double doors, digital display, multiple interior shelves, and ventilation at the bottom. The unit is on wheels and labeled “ABS American BioTech Supply” at the top. The inside appears empty and well-lit.
A tall, white, double-door laboratory refrigerator with glass sliding doors, empty white shelves, a digital temperature display at the top, ventilation grilles at the bottom, and mounted on four black wheels. The ABS logo is visible on the upper left.
A white, upright laboratory refrigerator with glass double doors, digital display, multiple interior shelves, and ventilation at the bottom. The unit is on wheels and labeled “ABS American BioTech Supply” at the top. The inside appears empty and well-lit.
ABT-VS-LP-33 DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

33 Cu. Ft. Premier Sliding Glass Door Laboratory Refrigerator with Variable Speed Compressor

Product Number: ABT-VS-LP-33 ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 16 23 26 36 47 49 69 72 CU. FT.

These premier laboratory refrigerators are engineered with variable speed technology for exceptional efficiency and performance in clinical and research environments. They feature precise microprocessor temperature control and variable speed compressor technology. Enjoy low energy consumption and natural hydrocarbon refrigerants for cost-savings and energy efficiency. Security and monitoring features include a keyed door lock and comprehensive alarms with remote alarm contacts. The cabinet is built with durable powder-coated steel, glass door transparency, safety-shielded LED lighting, and adjustable interior shelving to enhance your workflow. This model delivers optimal temperature stability and includes a 2-year parts and labor warranty with a generous 7-year warranty on the compressor. These premier refrigerators are designed to increase performance and efficiency in your lab.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the ABT-VS-LP-33

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What temperature range can I set on this refrigerator?

The adjustable temperature range is 2° C to 15° C. Maximum temperature variation (cabinet air) is +/- 2.0° C, and stability on the simulator ballast is +/- 0.5° C.

Refrigeration System tab
What are the exterior dimensions and weight?

Exterior width is 39.625″, depth is 32.5″, and height is 81.75″. Product weight is 355 lbs and shipping weight is 419 lbs.

Details tab
How much clearance does it need for installation?

The refrigerator requires a minimum 2” of clearance around the back and sides for proper ventilation, and more if next to heat rejecting equipment. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

Temp Controller tab
What alarms are included?

The unit has audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm, and alarm mute. Battery backup supports the controller temperature display and alarms only, with no cooling active.

Temp Controller tab
What are the electrical requirements?

Rated amperage is 3 Amps with a NEMA 5-15P plug. The facility must provide 110 – 120V AC, a 15A breaker, and a NEMA 5-15 receptacle.

Details tab
What refrigerant and defrost type does it use, and what is the warranty?

It uses EPA SNAP compliant R600a Isobutane (hydrocarbon natural refrigerant) with Cycle Defrost. The warranty is two (2) years parts and labor, with a seven (7) year compressor warranty.

Refrigeration System tab
What is a Variable Speed Compressor (VSC)?

A variable speed compressor (VSC) self-adjusts to cooling demand instead of running at one fixed speed, giving greater efficiency and more cost savings than a traditional fixed-speed model. On this unit it works alongside the microprocessor temperature controller, which provides the precise temperature control.

American Biotech Supply
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the ABT-VS-LP-33

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Details
Storage capacity (Cu. Ft.)
33 Cu. Ft.
Door
Two (2) sliding glass doors, self-closing
Shelves
Eight (8) adjustable shelves (adjustable in 1/2″ increments)
Mounting and installation
Swivel casters – locking front casters
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow management
Forced draft air circulation, patented air flow technology
External probe access
3/4″ probe access port on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Exterior materials
White powder coated steel
Access control
Keyed door lock
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Seven (7) year compressor warranty
Product weight (lbs)
355
Shipping weight (lbs)
419
Exterior width (in)
39.625″
Exterior depth (in)
32.5″
Exterior height (in)
81.75″
Rated amperage
3 Amps
Power plug/power cord
NEMA 5-15P plug
Facility electrical requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency listing and certification
ETL, C-ETL listed: certified to UL471 standard.
Maximum temperature variation (cabinet air)
+/- 2.0° C
Stability  (simulator ballast)
+/- 0.5° C
Adjustable temperature range
2° C to 15° C
Energy consumption (KWh/day)
<2.5 KWh/day
Average heat rejection (BTU/hr)
<640 BTU/h
Noise pressure level (dBA)
40 dBA or less installed
Pull down time to nominal operating temp
< 40 min (empty)
Compressor
Hermetic, variable speed
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle Defrost
Performance note
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
Controller technology
Microprocessor temperature controller with variable frequency compressor control
Battery backup
For controller temperature display and alarms only, no cooling active
Display technology
Non-applicable
Digital communication
Non-applicable
External alarm connection
Remote alarm contacts
Display probe
Product simulator bottle with glass bead media
Alarms
Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm, and alarm mute
Disclaimers
Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
