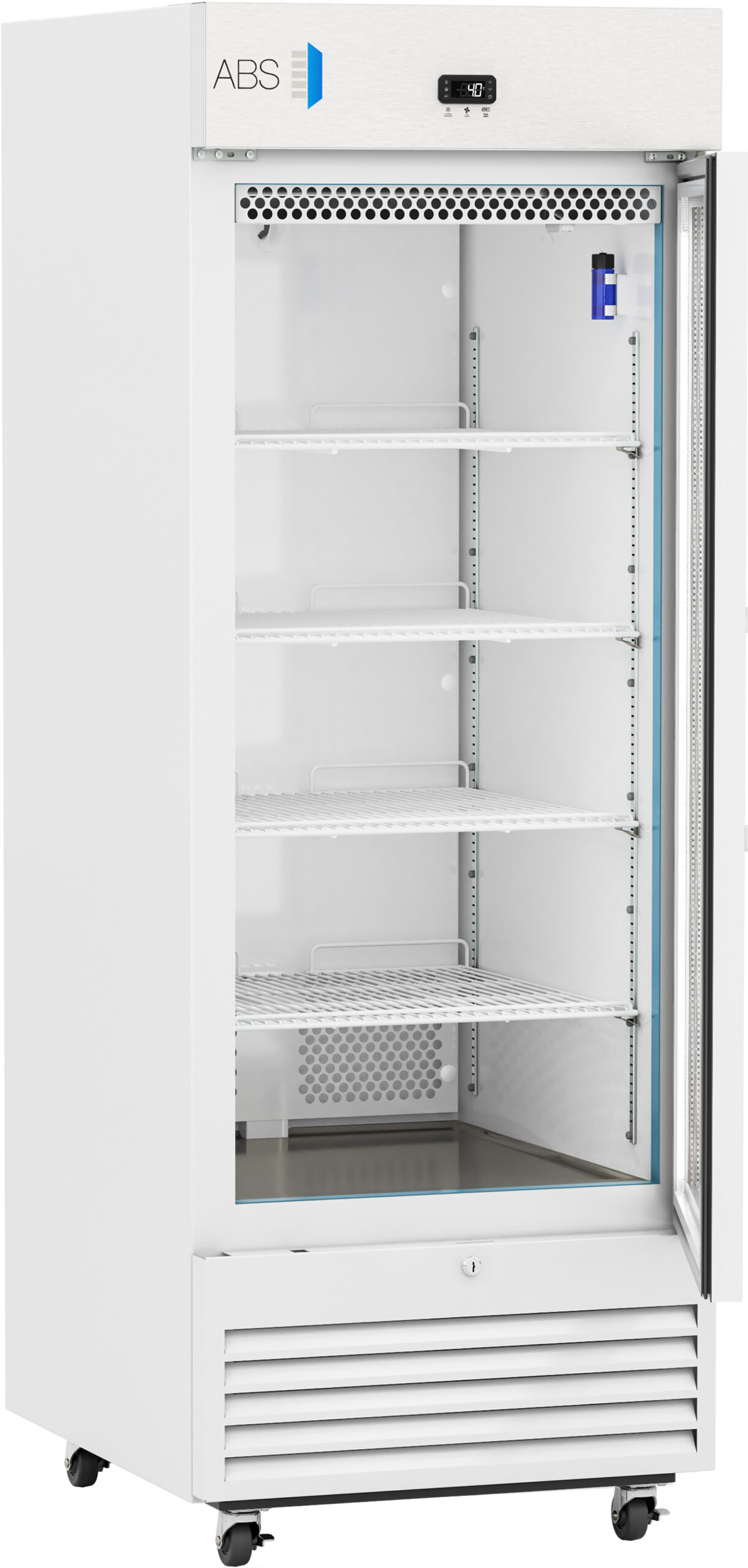

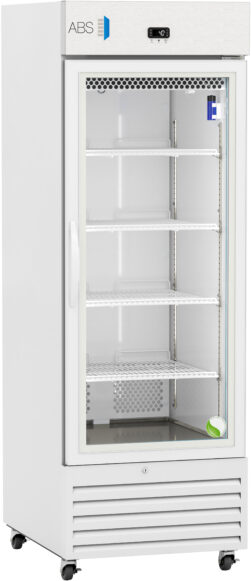

A white upright laboratory refrigerator with a glass door, five adjustable interior shelves, a digital temperature display, a vent at the bottom, and caster wheels. The unit is empty and well-lit, designed for scientific or medical storage. A tall, white, upright laboratory refrigerator with a transparent door, digital temperature display, five adjustable wire shelves, ventilation slots at the bottom, caster wheels, and a blue ABS logo on the upper left front corner. The fridge is empty.
A white upright laboratory refrigerator with a glass door, five adjustable interior shelves, a digital temperature display, a vent at the bottom, and caster wheels. The unit is empty and well-lit, designed for scientific or medical storage.
A tall, white, upright laboratory refrigerator with a transparent door, digital temperature display, five adjustable wire shelves, ventilation slots at the bottom, caster wheels, and a blue ABS logo on the upper left front corner. The fridge is empty.
ABT-VS-LS-26 DataSheet

26 Cu. Ft. Standard Glass Door Laboratory Refrigerator

Product Number: ABT-VS-LS-26

A minimalist leaf icon with a gradient color transition from blue at the top to green at the bottom. The leaf features a simple, stylized design with a vertical line down the center, resembling a stem, and two side veins.Black and white certification logo with INTERTEK at the top, a stylized ETL in the center, and the letters C on the left and US on the right, indicating compliance with Canadian and U.S. safety standards.

These laboratory refrigerators are designed for reliable and cost-effective cold storage. This model features ultra-low energy consumption and energy efficient natural refrigerants. Using microprocessor temperature technology, this unit delivers precise temperature monitoring and control. It offers essential security features, including a keyed door lock and temperature alarms, along with remote alarm contacts. Enjoy durable powder-coated steel construction, glass door transparency, and adjustable inner shelving to optimize your workflow. All features are designed to heighten performance and efficiency in your lab.

Product Inquiry
Details
Storage capacity    26 Cu. Ft.
Door    One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves    Four (4) adjustable shelves (adjustable in ½” increments)
Mounting and Installation    Swivel casters – locking front casters
Interior lighting    LED interior lights are safety shielded and switch controlled
External probe access    Probe access port (3/4″) on rear wall
Insulation    Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials    White powder coated steel
Access Control    Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty    Two (2) year parts and labor warranty
Compressor  warranty    Five (5) year compressor warranty
Product Weight   (lbs.)    292
Shipping Weight (lbs.)    345
 Exterior Width       (in)    28.5″
 Exterior Depth      (in)    36.5″
 Exterior Height     (in)    81.75″
Rated Amperage    3 Amps
Power Plug/Power Cord    NEMA 5-15 plug
Facility Electrical Requirement    110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification    ETL, C-ETL listed. Meets or exceeds Energy Star v2.0 for Laboratory.  Refrigerators. Official listing pending – see energystar.gov
Compressor Hermetic
Refrigerant EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser Tube and grid, high efficiency fan forced air
Evaporator Fin and tube, high efficiency fan forced air
Defrost Cycle defrost
Controller  technology Microprocessor temperature controller, C°/F° switchable, resolution is 0.1° C/0.2° F
Max temp      variation – cabinet   air (°C): +/- 2.5° C
Energy    consumption (KWh/day): <1.2 KWh/day Meets or exceeds Energy Star v2.0 for Laboratory Refrigerators.
Stability – simulator ballast (°C): +/- 0.5° C
Average heat rejection (BTU/h) < 320 BTU/h
Display      Technology Digital Temperature Display
Noise pressure    level (dBA) 40 dBA or less installed
Pull down time to nominal operating temp < 35 min (empty)
Adjustable Temperature     Range 2° C to 15° C
External alarm connection Remote alarm contacts
Display Probe Product simulator bottle with glass bead media
Alarms Audible and visual high/low temperature alarms, remote alarm contacts
Disclaimers Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance     Notes Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
