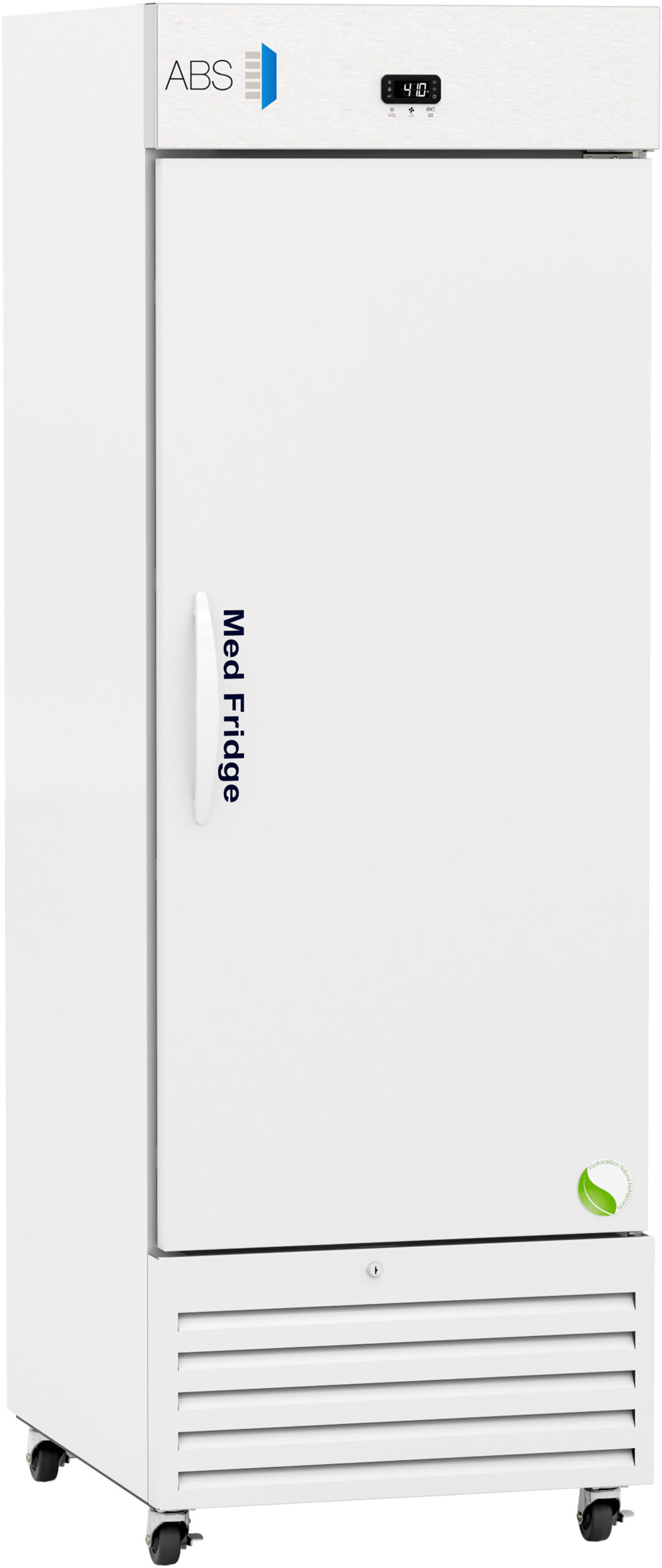

A tall, white laboratory refrigerator with a digital temperature display on top, a vertical handle, and Med-Fridge text on the door. The fridge has vents at the bottom and stands on wheels. The ABS brand logo and a green leaf symbol are visible.

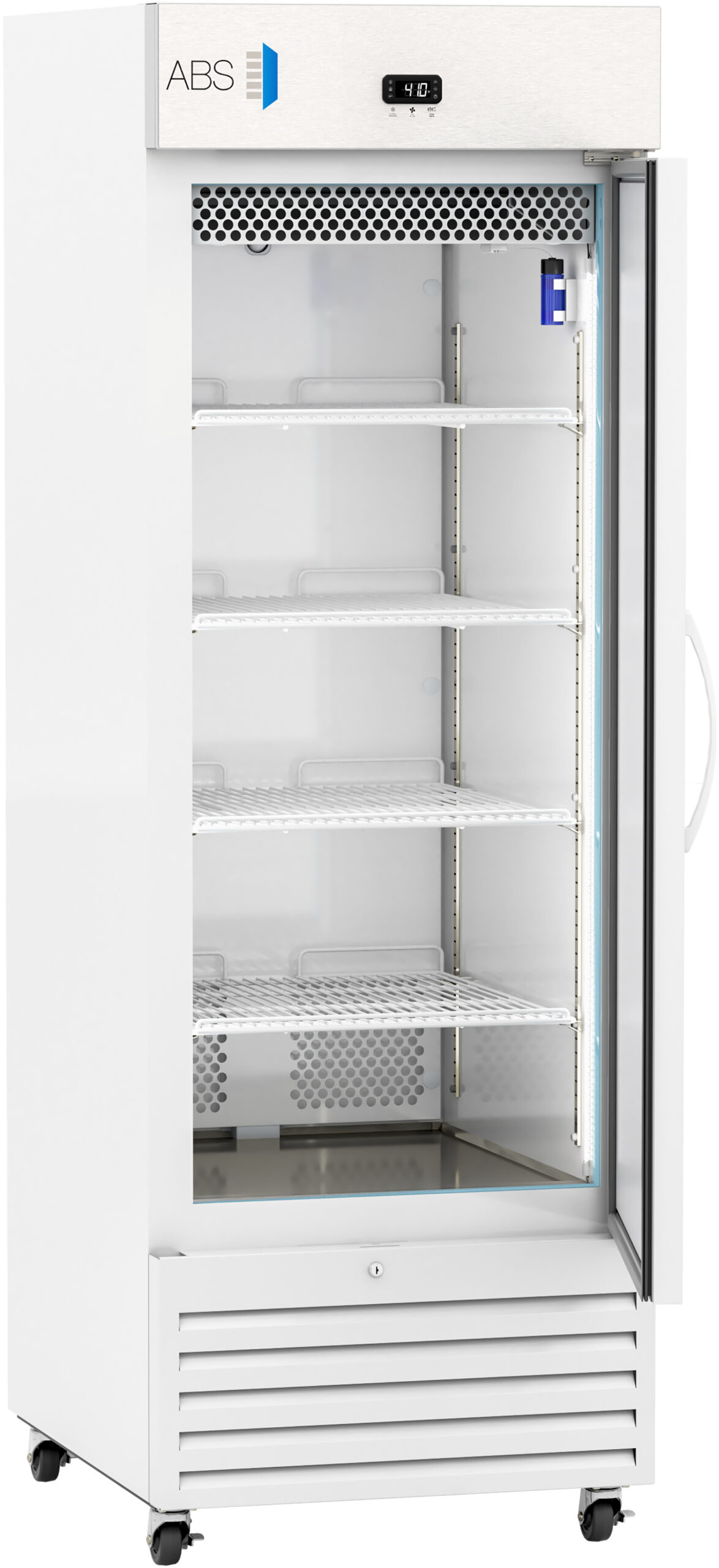

A tall, white medical refrigerator labeled ABS stands on small wheels with a transparent glass door open to reveal five empty wire shelves, a side light, a digital temperature display showing 4°C, and a vented panel at the bottom front.
PH-ABT-VS-S23S DataSheet Manual 26147- Upright VSC Refrigerator Lab Pharmacy 10-31-2025

Enter your email to receive this document

This field is for validation purposes and should be left unchanged.
Name(Required)
Email(Required)
By submitting a request, you agree and consent to the use of your information in accordance with our Privacy Policy


You maybe required to confirm your email address within 2hrs to complete this request. Check your inbox.

23 Cu. Ft. Standard Solid Door Pharmacy Refrigerator

Product Number: PH-ABT-VS-S23S ★ NEW PRODUCT
ALSO AVAILABLE IN THESE SIZES12 16 26 36 49 72 CU. FT.

These pharmacy refrigerators are designed for reliable and cost-effective cold storage. This model features ultra-low energy consumption and energy efficient natural refrigerants. Using microprocessor temperature technology, this unit delivers precise temperature monitoring and control. It offers essential security features, including a keyed door lock and temperature alarms, along with remote alarm contacts. Enjoy durable powder-coated steel construction, and adjustable inner shelving to optimize your workflow. All features are designed to heighten performance and efficiency in your clinical setting.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Gelu

Ask Gelu about the PH-ABT-VS-S23S

Here are common questions and answers about this product

Gelu is on every product pageJust ask a question, anytime
What's the temperature range on this pharmacy refrigerator?

The adjustable temperature range is 36°F to 46°F (2°C to 8°C). It's calibrated using a NIST traceable device, and a certificate is included.

Temp Controller tab
How much clearance does it need around the unit?

The refrigerator requires a minimum 2" of clearance around the back and sides for proper ventilation, and more if next to heat rejecting equipment. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

Temp Controller tab
What refrigerant does it use and how is it defrosted?

It uses EPA SNAP compliant R600a Isobutane, a hydrocarbon natural refrigerant. The defrost method is cycle defrost.

Performance tab
What are the electrical requirements?

The facility needs 110–120V AC, a 15A breaker, and a NEMA 5-15 receptacle. The unit draws 3 Amps and comes with a NEMA 5-15 plug.

Description tab
What alarms and remote monitoring does it include?

The unit has audible and visual high/low temperature alarms, along with remote alarm contacts for external alarm connection.

Temp Controller tab
What's the warranty coverage?

It comes with a two (2) year parts and labor warranty and a five (5) year compressor warranty.

Description tab
Answers come from this product's record and datasheet. Settings and procedures come from the owner's manual.

Product details for the PH-ABT-VS-S23S

The description, performance figures and controller details, straight from the datasheet.

Need the full datasheet? Use View / Print Product Information above.
Description
Storage capacity (cu. ft)
23 Cu. Ft.
Door
One (1) swing solid door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves
Four (4) adjustable shelves (adjustable in ½” increments)
Mounting and Installation
Swivel casters – locking front casters
External probe access
3/4″ probe access port on rear wall
Insulation
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Interior lighting
LED interior lights are safety shielded and switch controlled
Airflow Management
Forced draft air circulation, patented air flow technology
Exterior materials
Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Access control
Keyed door lock; compatible with optional digital lock (Pyxis, Omnicell, and AcuDose RX)
General warranty
Two (2) year parts and labor warranty
Compressor warranty
Five (5) year compressor warranty
Product Weight (lbs)
284
Shipping Weight (lbs)
327
Rated Amperage
3 Amps
Power Plug/Power Cord
NEMA 5-15 plug, vaccine storage power cord warning label
Facility Electrical Requirement
110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification
ETL, C-ETL listed. Energy Star Certified
Maximum temperature variation (Cabinet air)
+/- 2.5° C
Stability (Simulator ballast)
+/- 0.5° C
Energy Consumption (kWh/day)
<1.2 KWh/day
Average Heat Rejection (BTU/hr)
<320 BTU/h
Pull down time to nominal operating temp
< 35 min (empty)
Noise Pressure Level (dBA)
40 dBA or less installed
Compressor
Hermetic
Refrigerant
EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser
Tube and grid, high efficiency fan forced air
Evaporator
Fin and tube, high efficiency fan forced air
Defrost
Cycle Defrost
Performance Notes
Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
Controller technology
Microprocessor temperature controller, C°/F° switchable, resolution is 0.1° C/0.2° F
Battery Backup
Non-applicable
Display technology
Digital temperature display
Adjustable Temperature Range
36°F to 46°F (2°C to 8°C), Calibrated using a NIST traceable device, certificate included
Digital Communication
Non-applicable
External alarm connection
Remote alarm contacts
Alarms
Audible and visual high/low temperature alarms, remote alarm contacts
Display Probe
Product simulator bottle with glass bead media
Included Accessories
Pharmacy refrigerator/freezer toolkit
Disclaimers
Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure

Related Products

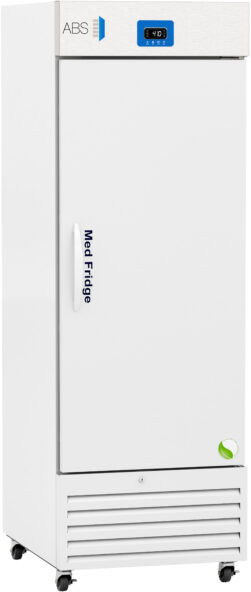

A tall, white, single-door laboratory refrigerator with a digital temperature display on the top front panel, labeled ABS and Med-Fridge. The fridge has a vertical handle, ventilation slots at the bottom, and is set on wheels for mobility.
