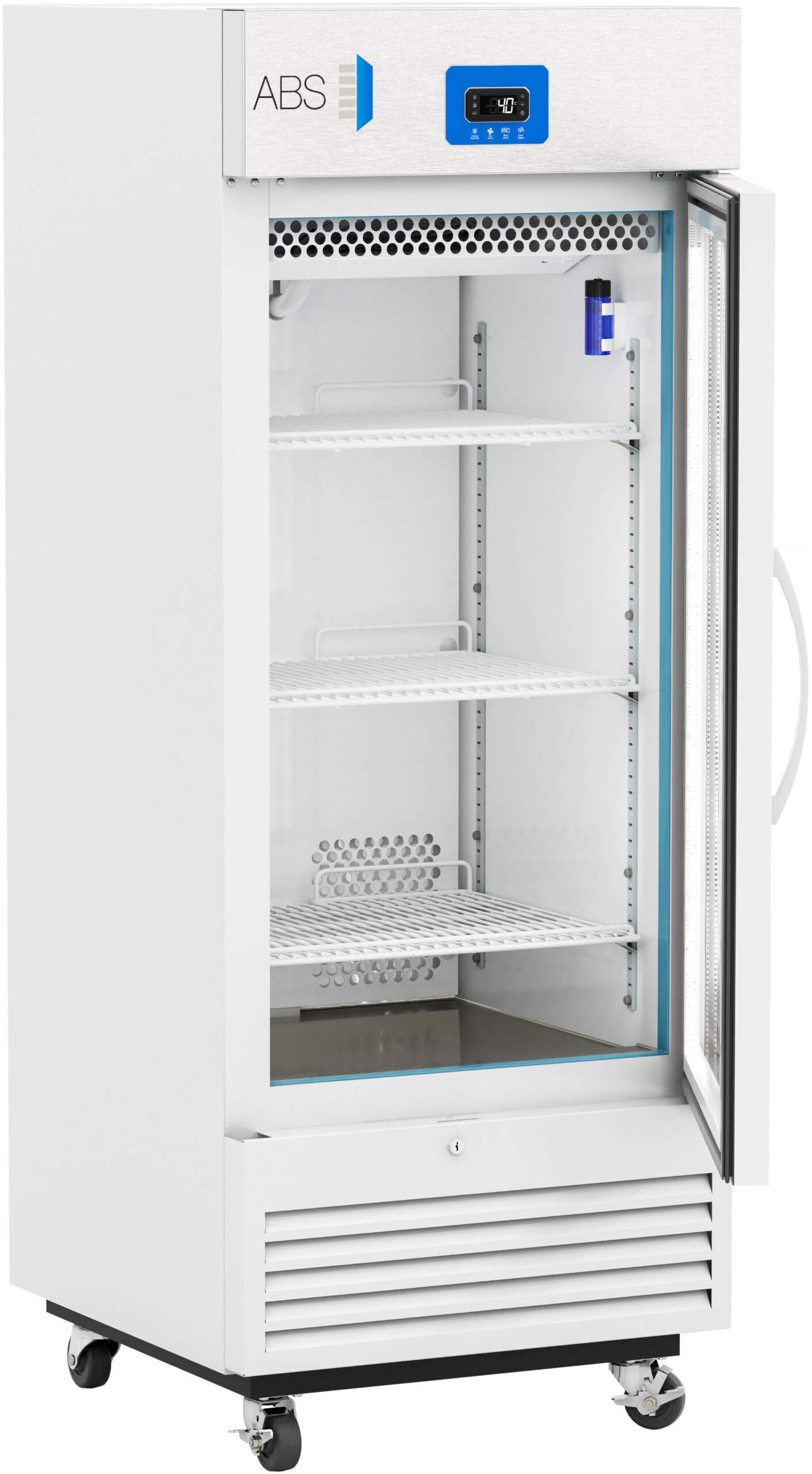

A white medical refrigerator on wheels with a glass door, three adjustable shelves, a digital temperature display showing -41.2°C, and a blue sensor inside. The unit is labeled “ABS” in the top left corner. The refrigerator is empty.
ABT-VS-LP-12 DataSheet

12 Cu. Ft. Premier Glass Door Laboratory Refrigerator

Product Number: ABT-VS-LP-12

A minimalist leaf icon with a gradient color transition from blue at the top to green at the bottom. The leaf features a simple, stylized design with a vertical line down the center, resembling a stem, and two side veins.Black and white certification logo with INTERTEK at the top, a stylized ETL in the center, and the letters C on the left and US on the right, indicating compliance with Canadian and U.S. safety standards.

These premier laboratory refrigerators are engineered with variable speed technology for exceptional efficiency and performance in clinical and research environments. They feature precise microprocessor temperature control and variable speed compressor technology. Enjoy low energy consumption and natural hydrocarbon refrigerants for cost-savings and energy efficiency. Security and monitoring features include a keyed door lock and comprehensive alarms with remote alarm contacts. The cabinet is built with durable powder-coated steel, a self-closing glass door, safety-shielded LED lighting, and adjustable interior shelving to enhance your workflow. This model delivers optimal temperature stability and includes a 2-year parts and labor warranty with a generous 7-year warranty on the compressor. These premier refrigerators are designed to increase performance and efficiency in your lab.

Product Inquiry
Details
Storage capacity 12 Cu. Ft.
Door One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves Three (3) adjustable shelves (adjustable in ½” increments)
Drawers Non-applicable
Mounting and Installation Swivel casters – locking front casters
Interior lighting LED interior lights are safety shielded and switch controlled
Airflow Management Forced draft air circulation – Patented air flow technology
External probe access Probe access port (3/4″) on rear wall
Insulation Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials White powder coated steel
Access control Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty Two (2) year parts and labor warranty
Compressor warranty Seven (7) year compressor warranty
Product Weight (lbs) 221
Shipping Weight (lbs) 254
Exterior Width (in) 25″
Exterior Depth (in) 29″
Exterior Height (in) 66″
Rated Amperage 2 Amps
Power Plug/Power Cord NEMA 5-15 plug
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification ETL, C-ETL listed. Meets or exceeds Energy Star v2.0 for Laboratory Refrigerators. Official listing pending – see energystar.gov
Compressor Hermetic, Variable speed
Refrigerant EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser Tube and grid, high efficiency fan forced air
Evaporator Fin and tube, high efficiency fan forced air
Defrost Cycle defrost
Controller technology Microprocessor temperature controller with variable frequency compressor control, C°/F° switchable, resolution is 0.1° C/0.2° F
Noise pressure level      (dBA) 40 dBA or less installed
Display technology  Digital Temperature Display
Stability – simulator       ballast (°C) +/- 0.3° C
Average heat rejection (BTU/h) < 250 BTU/h
Max temp variation –   cabinet air (°C) +/- 1.5° C
Adjustable Temperature Range 2°C to 15°C
External alarm       connection Remote alarm contacts
Digital            Communication Non-applicable
Battery Backup For controller temperature display and alarms only, no cooling active
Energy consumption (KWh/day) <0.9 KWh/day *meets Energy Star v2.0 for Laboratory Refrigerators
Display probe Product simulator bottle with glass bead media
Pull down time to       nominal operating temp < 30 min (empty)
Alarms Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm
Disclaimer(s): Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance Note Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
