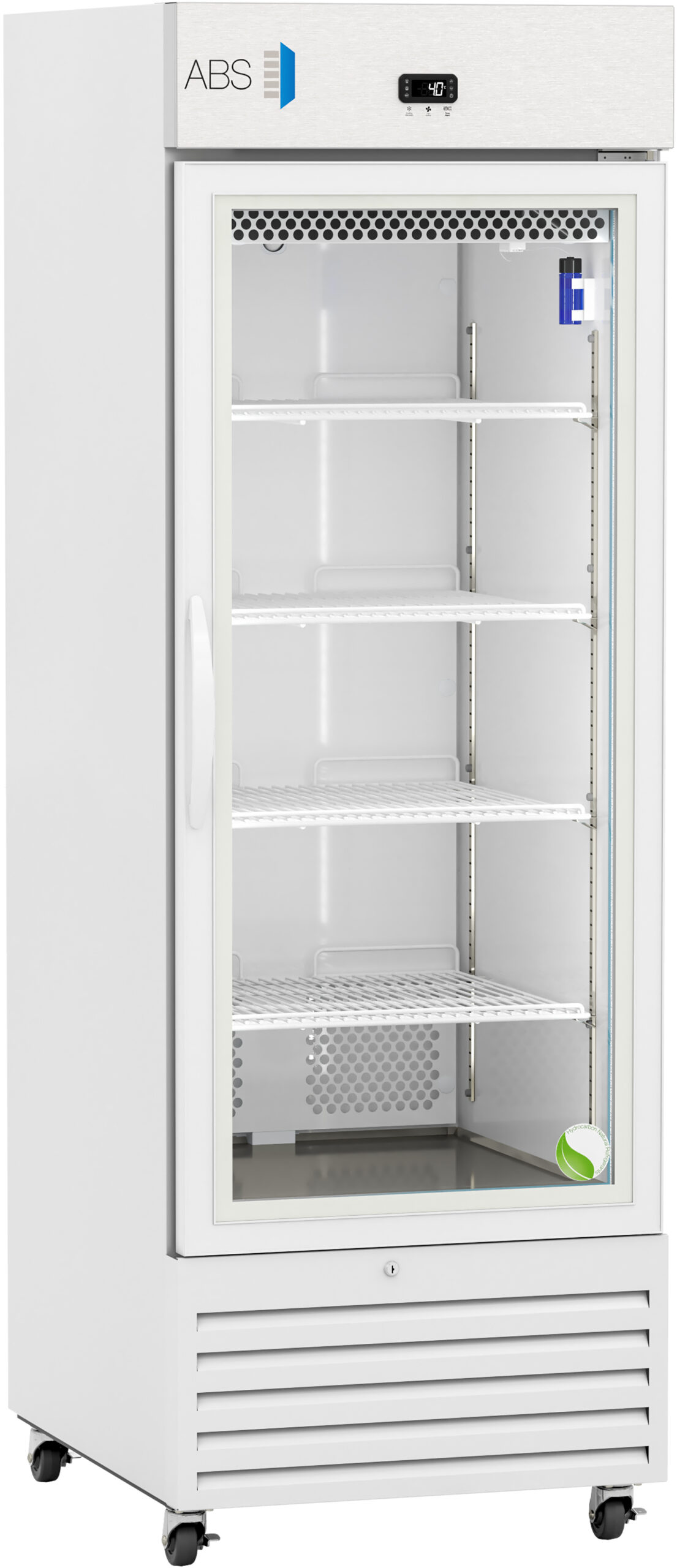

A tall, white commercial refrigerator with a glass door, labeled ABS at the top. It has five white wire shelves inside, a digital temperature display above the door, and ventilation panels at the bottom. The fridge is empty and stands on small wheels.

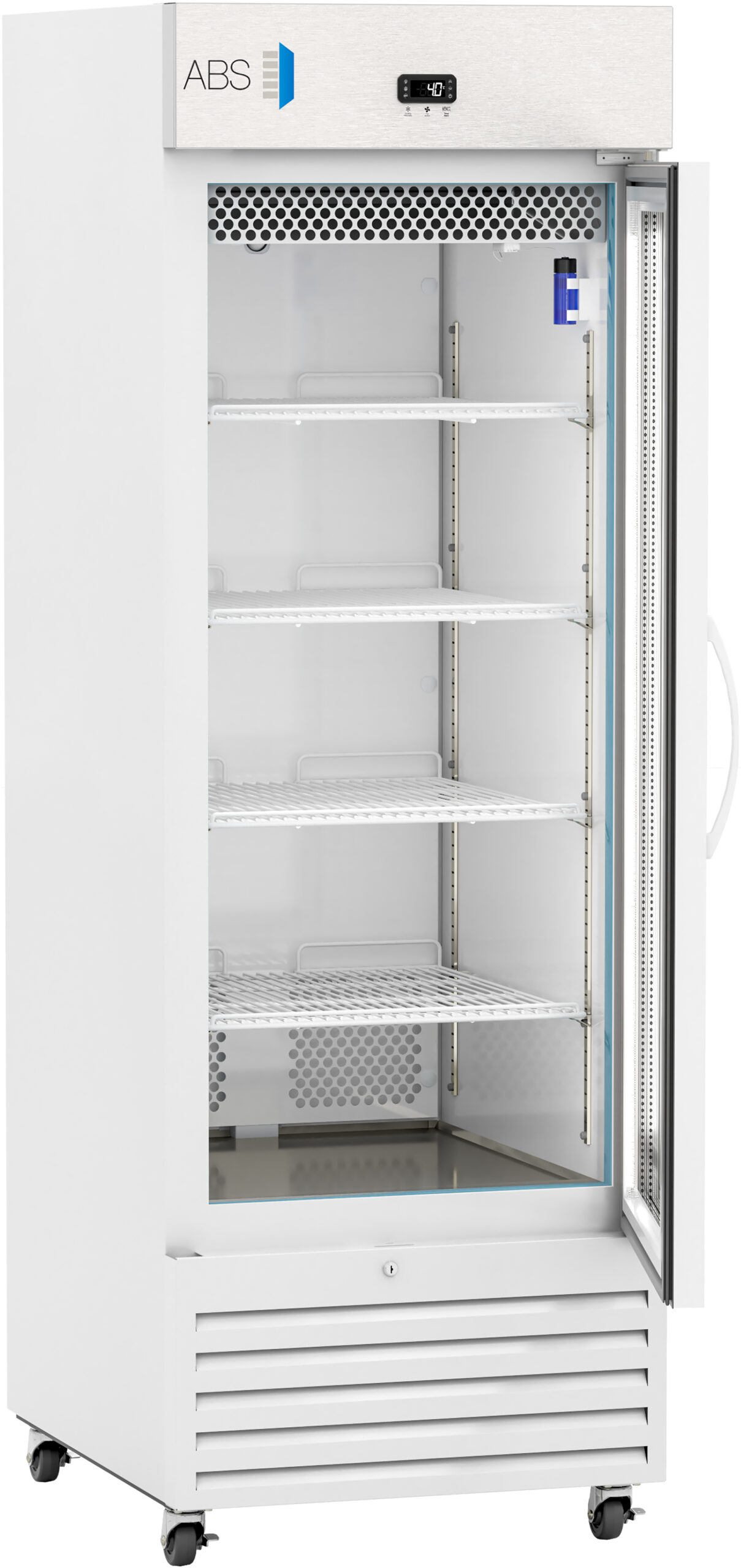

A tall, white laboratory refrigerator with a glass front door stands open, revealing five empty metal shelves inside. The unit has a digital temperature display on top, vents at the bottom, wheels, and the ABS logo on the upper left corner.
ABT-VS-LS-23 DataSheet

ABT-VS-LS-23 23 Cu. Ft. Standard Glass Door Laboratory Refrigerator

Product Number: ABT-VS-LS-23 ★ NEW PRODUCT

These laboratory refrigerators are designed for reliable and cost-effective cold storage. This model features ultra-low energy consumption and energy efficient natural refrigerants. Using microprocessor temperature technology, this unit delivers precise temperature monitoring and control. It offers essential security features, including a keyed door lock and temperature alarms, along with remote alarm contacts. Enjoy durable powder-coated steel construction, glass door transparency, and adjustable inner shelving to optimize your workflow. All features are designed to heighten performance and efficiency in your lab.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Description
Storage capacity (cu. ft) 23 Cu. Ft.
Door One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves Four (4) adjustable shelves (adjustable in ½” increments)
Mounting and Installation Swivel casters – locking front casters
External probe access 3/4″ probe access port on rear wall
Insulation Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Interior lighting LED interior lights are safety shielded and switch controlled
Airflow Management Forced draft air circulation, patented air flow technology
Exterior materials Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Access control Keyed door lock; compatible with optional digital lock (Pyxis, Omnicell, and AcuDose RX)
General warranty Two (2) year parts and labor warranty
Compressor warranty Five (5) year compressor warranty
Product Weight (lbs) 284
Shipping Weight (lbs) 327
Rated Amperage 3 Amps
Power Plug/Power Cord NEMA 5-15 plug
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification ETL, C-ETL listed. Meets or exceeds ENERGY STAR® v2.0 for Laboratory Refrigerators. Official listing pending – see energystar.gov
Maximum temperature variation (Cabinet air) +/- 2.5° C
Stability (Simulator ballast) +/- 0.5° C
Energy Consumption (kWh/day) <1.2 KWh/day  *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
Average Heat Rejection (BTU/hr) <320 BTU/h
Pull down time to nominal operating temp < 35 min (empty)
Noise Pressure Level (dBA) 40 dBA or less installed
Compressor Hermetic
Refrigerant EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser Tube and grid, high efficiency fan forced air
Evaporator Fin and tube, high efficiency fan forced air
Defrost Cycle Defrost
Performance Notes Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
Controller technology Microprocessor with color touchscreen (8in) input and display, C°/F° switchable, resolution is 0.1° C/0.2° F
Battery Backup Non-applicable
Display technology Digital temperature display
Adjustable Temperature Range 2° C to 15° C
Digital Communication Non-applicable
External alarm connection Remote alarm contacts
Alarms Audible and visual high/low temperature alarms, remote alarm contacts
Display Probe Product simulator bottle with glass bead media
Disclaimers Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
