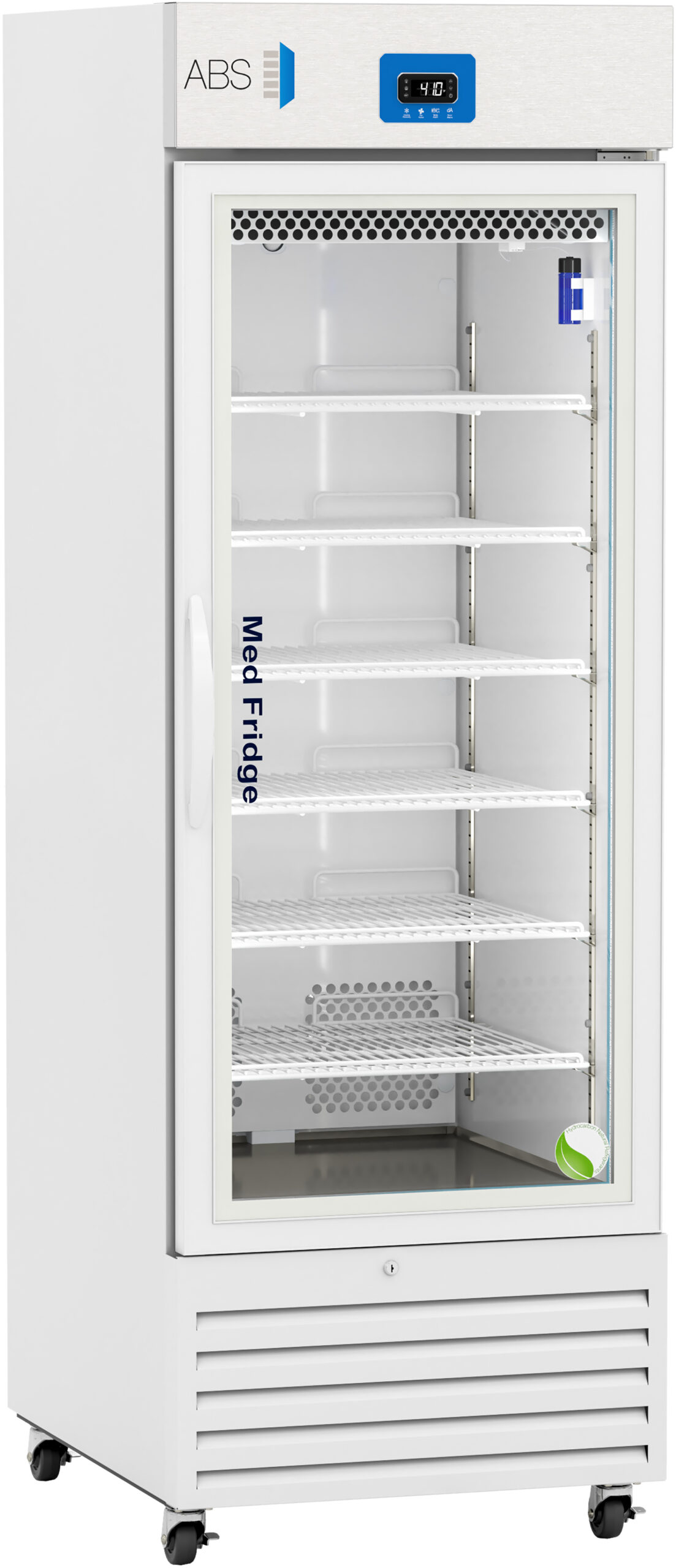

A tall, white medical refrigerator with a glass door showing seven empty shelves inside. The display panel at the top shows a digital temperature reading. The fridge is labeled “Med Fridge” on the side and stands on wheels.

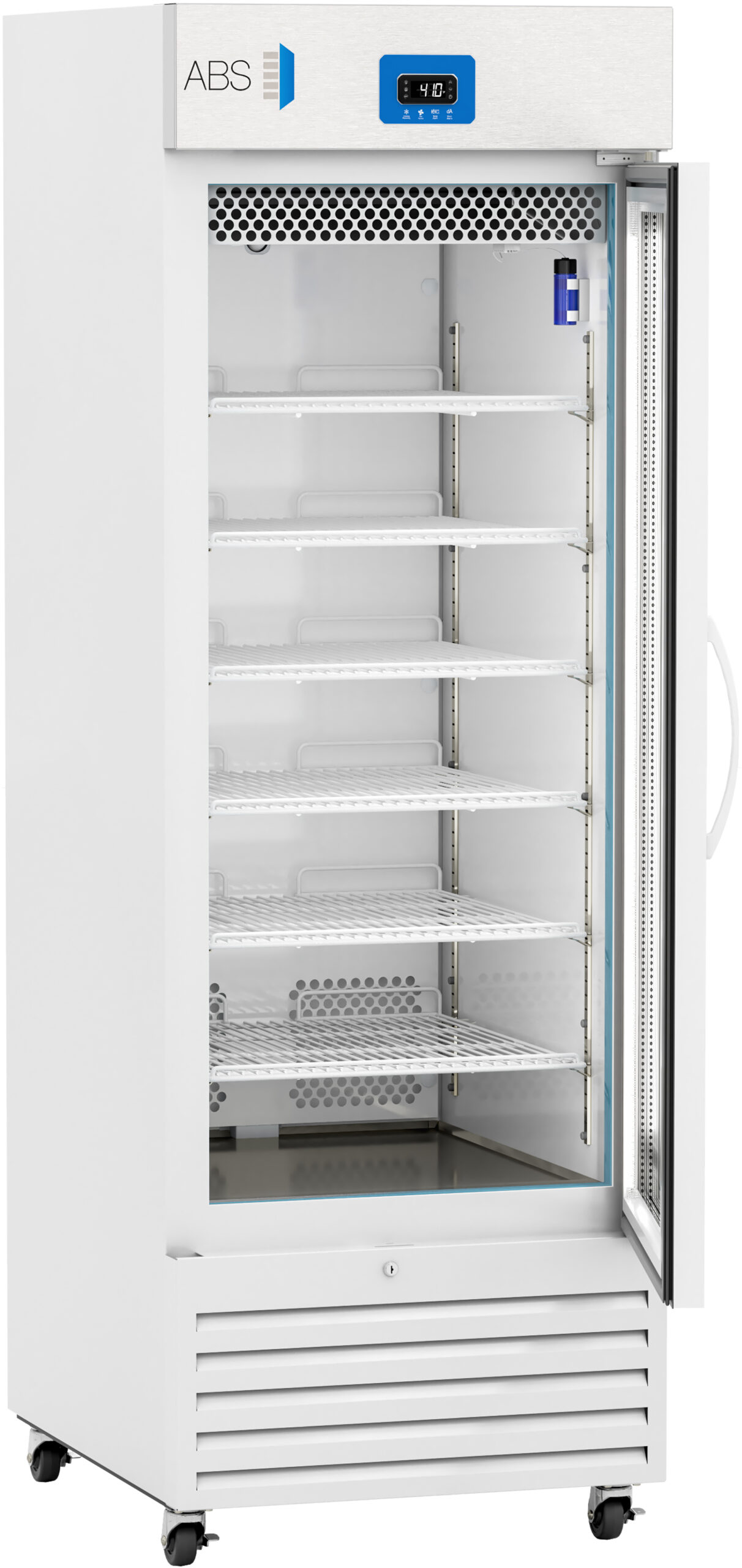

A tall, white medical refrigerator with a glass door is open, revealing seven empty wire shelves inside. The digital control panel above displays a temperature reading of 4.0°C. The unit stands on four small wheels and has a side handle.
PH-ABT-VS-23G DataSheet

PH-ABT-VS-23G 23 Cu. Ft. Premier Glass Door Pharmacy Refrigerator

Product Number: PH-ABT-VS-23G ★ NEW PRODUCT

These premier pharmacy refrigerators are engineered with variable speed technology for exceptional efficiency and performance in clinical and research environments. They feature precise microprocessor temperature control and variable speed compressor technology. Enjoy low energy consumption and natural hydrocarbon refrigerants for cost-savings and energy efficiency. Security and monitoring features include a keyed door lock and comprehensive alarms with remote alarm contacts. The cabinet is built with durable powder-coated steel, a self-closing glass door, safety-shielded LED lighting, and adjustable interior shelving to enhance your workflow. This model delivers optimal temperature stability and includes a 2-year parts and labor warranty with a generous 7-year warranty on the compressor. These premier refrigerators are designed to increase performance and efficiency in your clinical setting.

Request a Custom Quote

Get pricing and availability for this product

Product Inquiry
Description
Storage capacity (cu. ft) 23 Cu. Ft.
Door One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves Six (6) adjustable shelves (adjustable in ½” increments)
Mounting and Installation Swivel casters – locking front casters
External probe access 3/4″ probe access port on rear wall
Insulation Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Interior lighting LED interior lights are safety shielded and switch controlled
Airflow Management Forced draft air circulation, patented air flow technology
Exterior materials Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Access control Keyed door lock; compatible with optional digital lock (Pyxis, Omnicell, and AcuDose RX)
General warranty Two (2) year parts and labor warranty
Compressor warranty Seven (7) year compressor warranty
Product Weight (lbs) 274
Shipping Weight (lbs) 327
Rated Amperage 3 Amps
Power Plug/Power Cord NEMA 5-15 plug, vaccine storage power cord warning label
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification ETL, C-ETL listed. Meets or exceeds ENERGY STAR® v2.0 for Laboratory Refrigerators. Official listing pending – see energystar.gov
Maximum temperature variation (Cabinet air) +/- 1.5° C
Stability (Cabinet air) +/- 0.3° C
Energy Consumption (kWh/day) <1.2 KWh/day  *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
Average Heat Rejection (BTU/hr) <320 BTU/h
Pull down time to nominal operating temp < 35 min (empty)
Noise Pressure Level (dBA) 40 dBA or less installed
Compressor Hermetic, variable speed
Refrigerant EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser Tube and grid, high efficiency fan forced air
Evaporator Fin and tube, high efficiency fan forced air
Defrost Cycle Defrost
Performance Notes Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
Controller technology Microprocessor with color touchscreen (8in) input and display, C°/F° switchable, resolution is 0.1° C/0.2° F
Battery Backup For controller temperature display and alarms only, no cooling active
Display technology  Digital temperature display
Adjustable Temperature Range 36°F to 46°F (2°C to 8°C) Calibrated using a NIST traceable device, certificate included
Digital Communication Non-applicable
External alarm connection Remote alarm contacts
Alarms Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm
Display Probe Product simulator bottle with glass bead media
Included Accessories Pharmacy refrigerator/freezer toolkit
Disclaimers Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
